250 kg aluminium multi-purpose lifter with winch

The aluminium multi-purpose lifter is the small 250 kg crane for lifting and positioning loads in confined spaces: light and portable, with hand winch, lifting height from 95 to 2,000 mm, outreach of 600 mm and hook travel of 2,300 mm. Two catalogue versions, with a dead weight of 70 kg or with a 400 kg counterweight, list price 4,000 € + VAT.
The table on the product page lists the two codes: 6110250, the 70 kg lifter, and 6120250 with counterweight, 400 kg dead weight, for working at full outreach without anchoring. Both lift 250 kg from 95 to 2,000 mm with an outreach of 600 mm.
The hand winch controls the lift without electricity or compressed air: the load is attached to the hook on the rope, raised to height and positioned. The aluminium frame moves on wheels and passes through doorways.
It is the tool for installing motors, pumps, switchboards and components in machine rooms, plant rooms and on lines where a gantry crane does not fit. Versatile and easy to handle, it is operated by one person alone.
2006/42/EC certified with capacity plate and declaration of conformity; accessories and hooks are quoted on request.
| Rated capacity | 250 kg |
| Lifting height | 95 to 2,000 mm |
| Outreach | 600 mm |
| Hook travel | 2.300 mm |
| Own weight | 70 kg (6110250) · 400 kg with counterweight (6120250) |
| Operation | hand winch |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

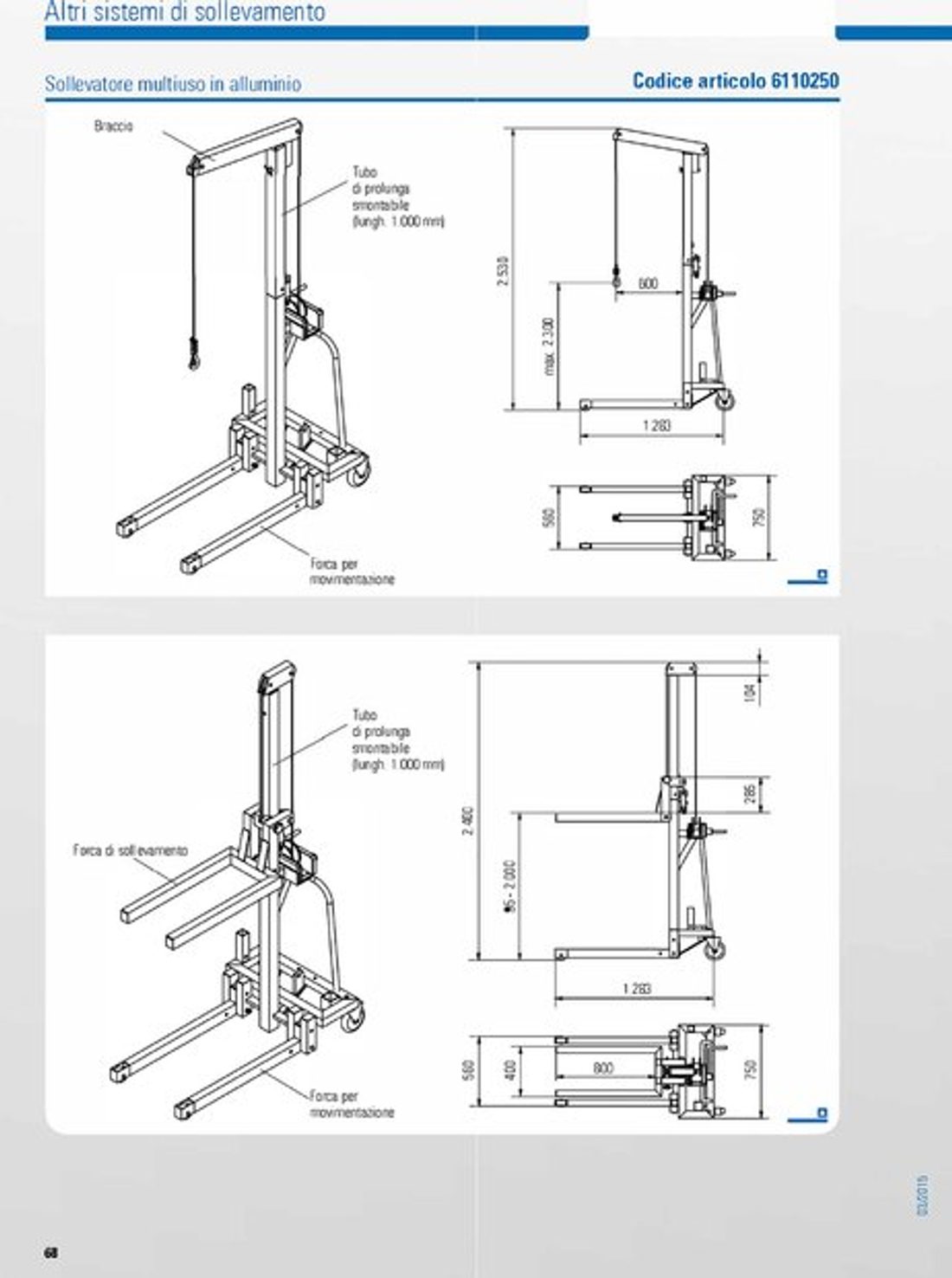

250 kg aluminium multi-purpose lifter with winch — models and capacities
| Part number | Description | Load capacity (kg) | Self-weight (kg) | Lifting height (mm) | Outreach (mm) | Hook travel (mm) |
|---|---|---|---|---|---|---|
| 6110250 | Multi-purpose aluminium lifter | 250 | 70 | 95 - 2.000 | 600 | 2.300 |
| 6120250 | Multi-purpose aluminium lifter with counterweight | 250 | 400 | 95 - 2.000 | 600 | 2.300 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
250 kg aluminium multi-purpose lifter with winch: the most common questions
List price 4,000 € + VAT; the version with counterweight is quoted on request.
For working at the full 600 mm outreach without anchoring the base: the dead weight rises to 400 kg and the lifter remains stable with 250 kg at the tip.
No: lifting is by hand winch, without electricity or compressed air.
