5,000 kg aluminium gantry crane, dismountable, with outdoor wheels

5,000 kg aluminium gantry crane, dismountable, with outdoor wheels
Aluminium gantry crane

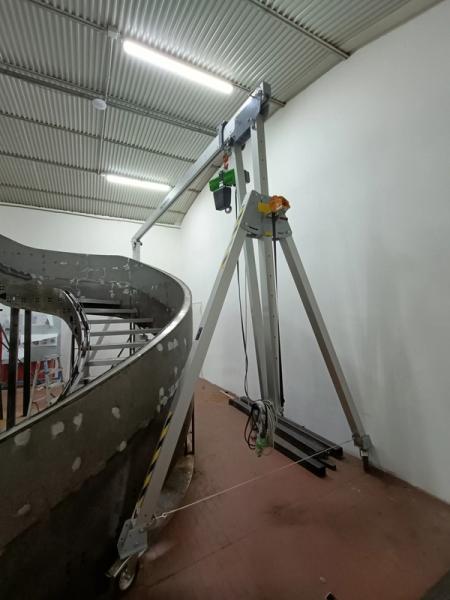

The 5,000 kg aluminium gantry crane is the dismountable gantry for heavy loads: five tonnes with an aluminium structure that breaks down into elements, travels in a van and is reassembled on site without a mobile crane, with outdoor wheels that cope with uneven surfaces and gravel. List price €12,000 + VAT, CE certified to 2006/42/EC.

It is the maximum capacity of the aluminium range: it corresponds to the heavy series, with beam and uprights of enlarged section and Ø 250 mm cast iron wheels with polyurethane tread. Height is adjusted in steps on the uprights and locked with the pin, as across the whole range.

The outdoor wheels are what sets it apart from the workshop models: the crane works on site, on the quay and in yards, where the floor is not smooth. It is assembled by hand in a few minutes, with the chain hoist raising the uprights, and dismantled for transport or storage.

It serves those who have to lift heavy weights in different places: shipyards, plant maintenance, installations at the customer's premises, where a steel gantry would need a lorry and a mobile crane for every move. The hoist trolley, manual or electric, runs on the beam.

Beam and support sizes are chosen from the manufacturer's range: beam lengths from 2 to 7 m and working heights according to the support, with capacity depending on the combination. CE certified to 2006/42/EC with capacity plate and declaration of conformity; accessories: beam carrier trolley and transport trolley.

Rated capacityup to 5,000 kg
Structurealuminium, dismountable into elements, manual assembly
Beamfrom 2 to 7 m depending on configuration
Heightadjustable in steps on the uprights, pin-locked
Wheelsoutdoor, cast iron and polyurethane Ø 250 mm
Accessoriesbeam carrier trolley, transport trolley, goods trolleys
Certification2006/42/EC, capacity plate and declaration of conformity
€ 12.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

5,000 kg aluminium gantry crane, dismountable, with outdoor wheels: the most common questions

List price €12,000 + VAT; beam length, support height and hoist define the final price.
