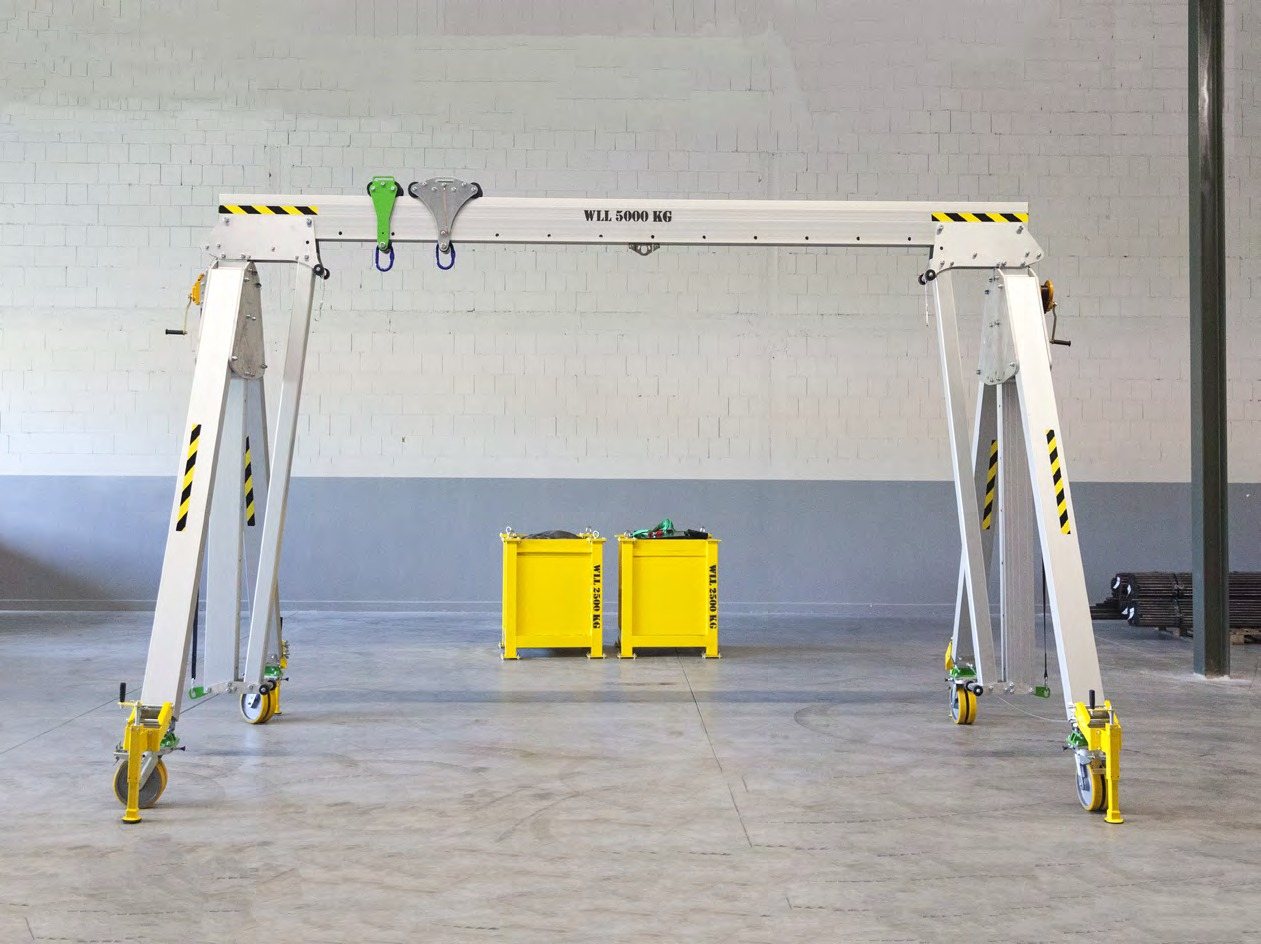

Heavy series aluminium gantry crane 5,000 kg (HSB)


The HSB heavy series takes the aluminium gantry range to the highest capacities: reinforced beam, cast iron wheels with polyurethane covering and oversized supports, while keeping the dismountable, portable logic of the range.
The HSB heavy series is the top of the aluminium range: larger sections for beam and uprights for the highest capacities, while keeping the advantage that made the range famous — assembly with no auxiliary plant.
Where a steel gantry would need a lorry and a mobile crane to be moved, the HSB arrives dismantled and goes back together on the spot. The choice for shipyards and major plant maintenance. CE 2006/42 certified.

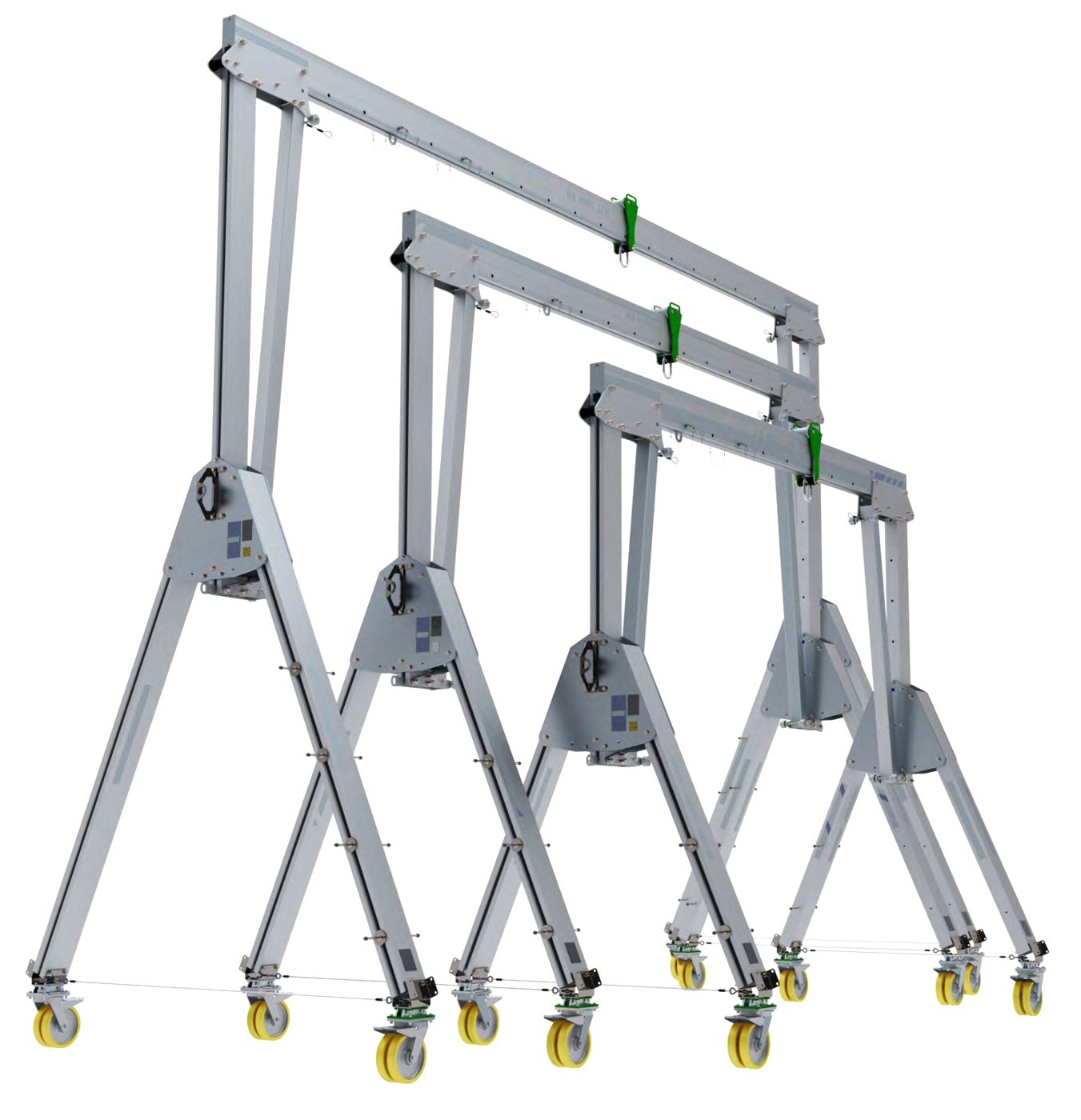

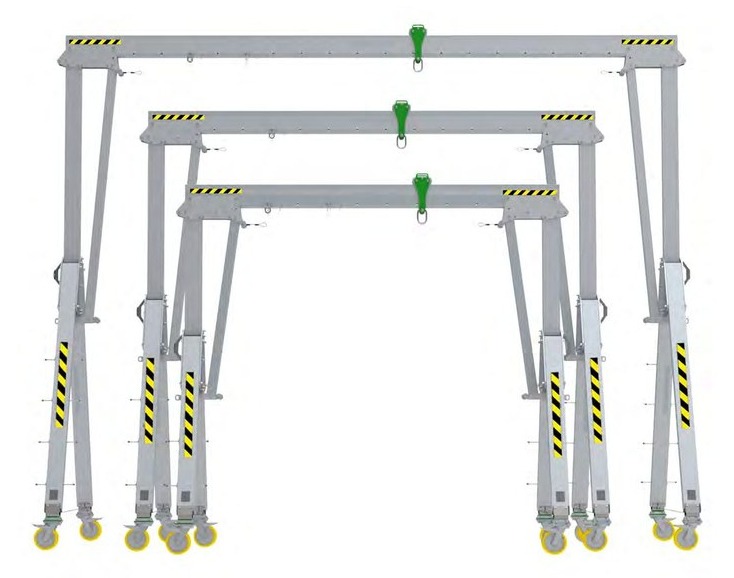

The series in figures: beams from 2 to 7 metres (200, 300, 400, 500, 600 and 700 cm) weighing 32 to 112 kg, working range from 69.5 to 569.5 cm, supports U1, U2 and U3 with working height from 275.7 to 557.1 cm in 30 cm steps, Ø 250 mm cast-iron wheels with polyurethane tread; capacity up to 5,000 kg with supports U1 and U2 and beam up to 5 metres.
List price from 11,000 € + VAT, standards EN 13001 and EN 15011, CE marking. It is the series of the 5,000 kg gantry with outdoor wheels; the transport trolley gathers the dismantled elements.
| Rated capacity | up to 5,000 kg (supports U1 · U2 with a beam up to 5 m) |
| Beam length | 2 – 7 m (200 · 300 · 400 · 500 · 600 · 700 cm) |
| Beam weight | from 32 to 112 kg |
| Beam working range | from 69.5 to 569.5 cm |
| Supports | U1 · U2 · U3 |
| Working height | from 275.7 to 557.1 cm according to the support |
| Height adjustment | in 30 cm steps |
| Wheels | cast iron + polyurethane Ø 250 mm |
| Structure | aluminium, dismountable |
| Standards | EN 13001 · EN 15011 |
List price, excluding VAT. Availability and delivery times confirmed the same day, together with the configuration that suits your load.
Data sheets
How the HSB heavy series is assembled

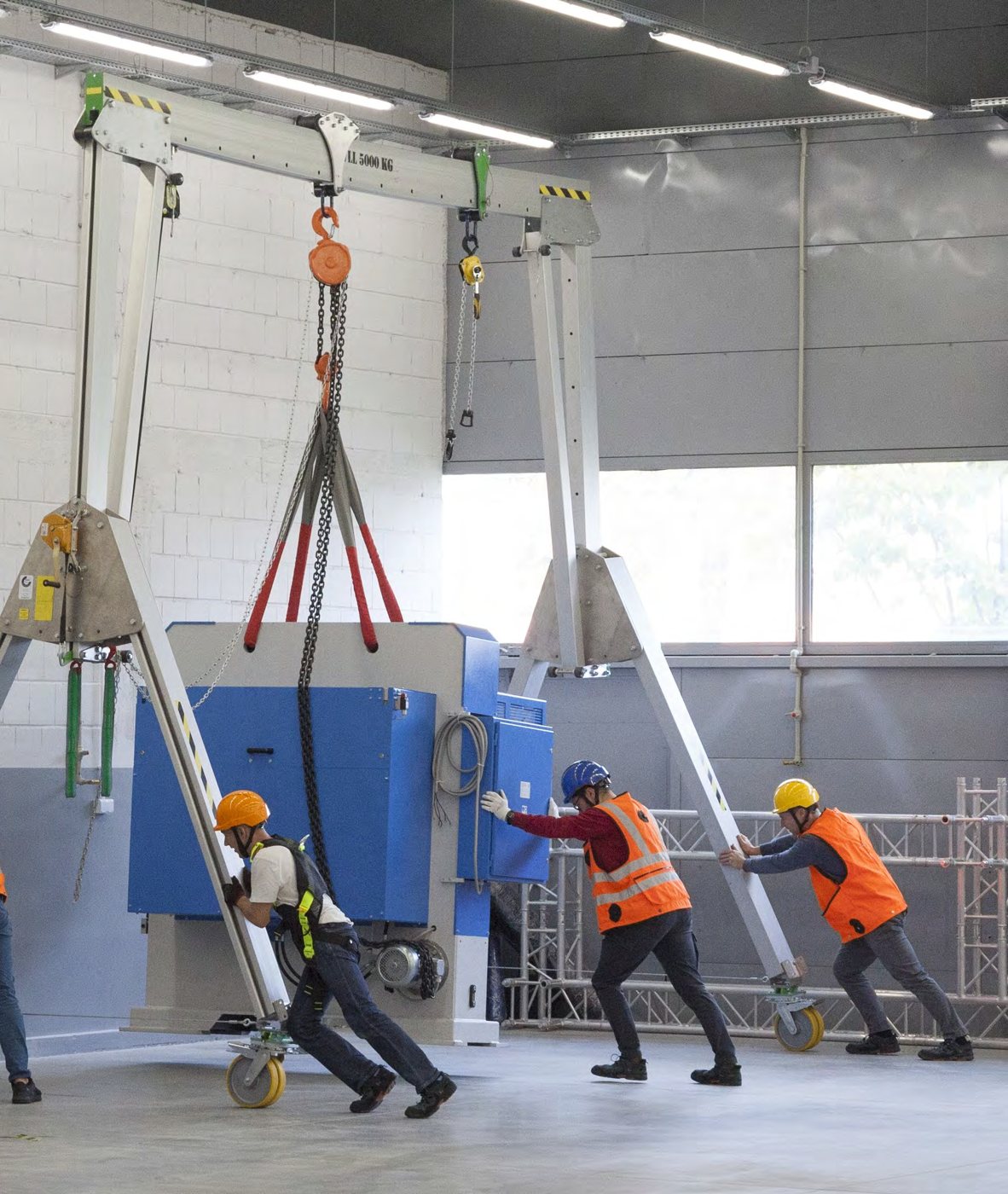

Two operators, a ladder and hand tools: the complete assembly of the 5,000 kg gantry crane, from the beam on the ground to the load test. No crane, no forklift.
