Light series aluminium gantry crane 1,500 kg (LSB)

Light series aluminium gantry crane 1,500 kg (LSB)
Aluminium range — New

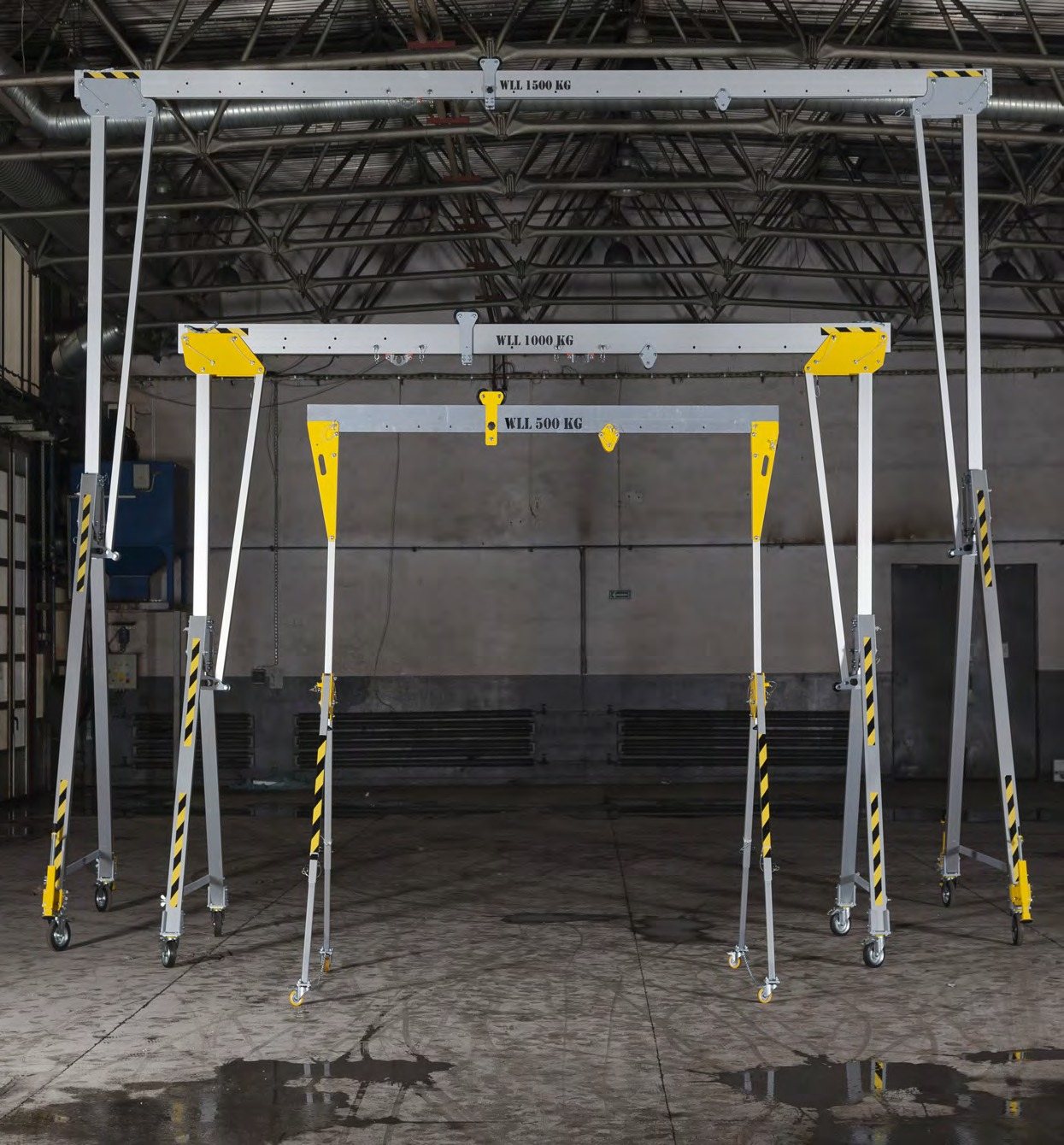

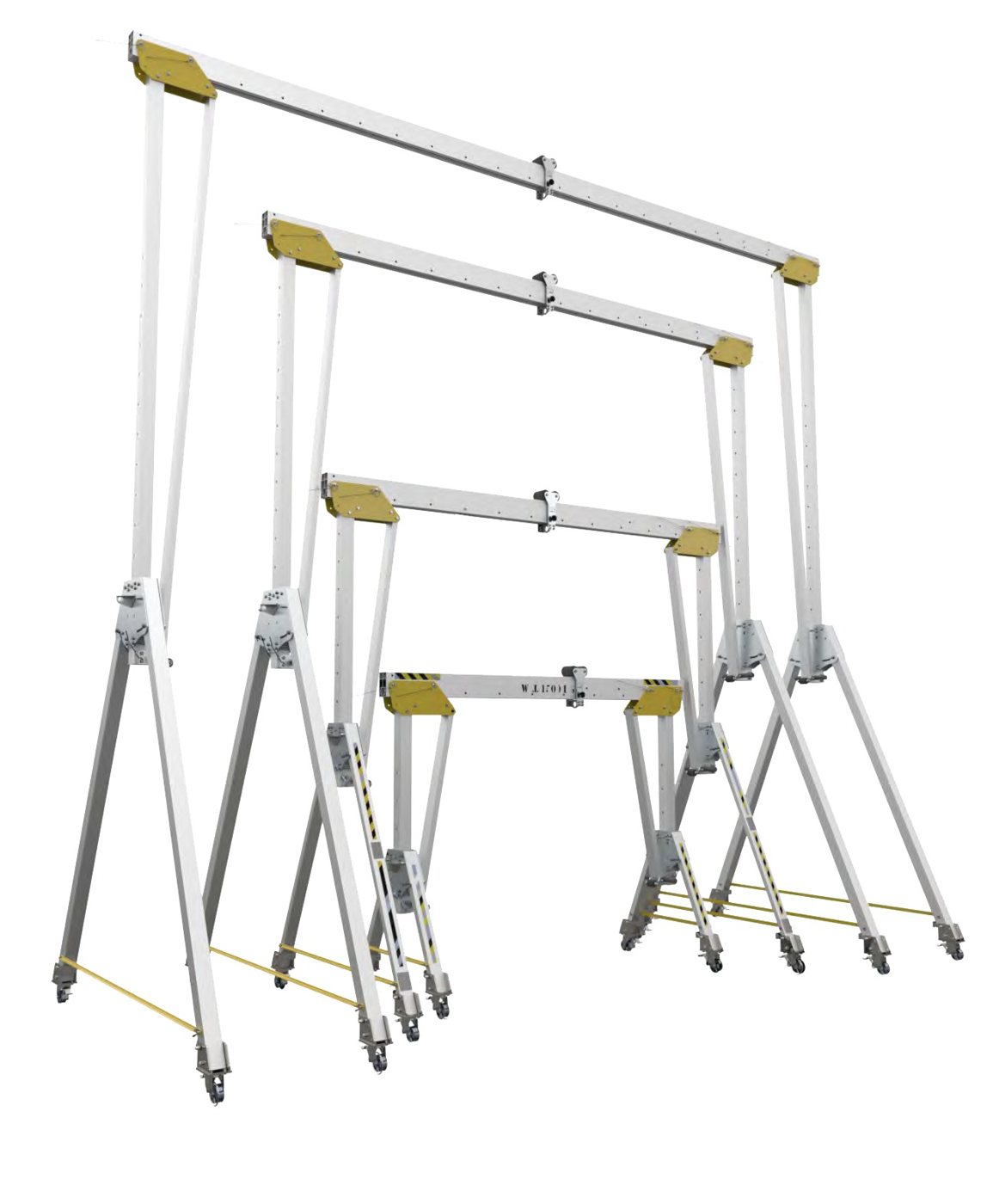

LSB light series aluminium gantry crane: capacities from 500 to 1,500 kg according to the beam and support configuration, dismountable structure on wheels and adjustable height. The perfect compromise between capacity and portability for workshops and maintenance.

The LSB light series is the entry gantry of the range: aluminium profiles sized for recurring workshop lifts, legs with braked wheels to reposition the crane once assembled, and a beam prepared for the hoist trolley.

It comes apart into a few elements that one person can load into a van: ideal for maintenance staff and installers who take the equipment to the customer. Every unit leaves with a capacity plate, serial number and CE 2006/42 certificate.

The series in figures: beams from 2 to 7 metres (200, 250, 300, 350, 400, 500, 600 and 700 cm) weighing 13.2 to 46 kg, beam working range from 77 to 577 cm, supports E1, F1, G1 and G2 with working height from 159.4 to 643 cm adjustable in 20 cm steps. Capacity, from 500 to 1,500 kg, depends on the combination of beam and support.

List price from 4,700 € + VAT; built to standards EN 13001 and EN 15011, with CE marking and capacity plate. The chain hoist with trolley is chosen on the capacity of the configuration.

Rated capacity500 – 1,500 kg (according to configuration)
Beam length2 – 7 m (200 · 250 · 300 · 350 · 400 · 500 · 600 · 700 cm)
Beam weightfrom 13.2 to 46.0 kg
Beam working rangefrom 77 to 577 cm
SupportsE1 · F1 · G1 · G2
Working heightfrom 159.4 to 643.0 cm according to the support
Height adjustmentin 20 cm steps
Structurealuminium, dismountable, on wheels
StandardsEN 13001 · EN 15011
€ 4.700 + VAT

List price, excluding VAT. Availability and delivery times confirmed the same day, together with the configuration that suits your load.
