Steel gantry cranes: on wheels, on rails, height-adjustable and fixed
The steel gantry crane replaces the overhead travelling crane where there is none or none can be installed: two legs, a cross-beam and a hoist, with the structure brought over the load. Four configurations built by Attollo, from 500 to 6,000 kg: on swivel castors, on rails with powered travel, height-adjustable and fixed for boat hauling, all 2006/42/EC certified. List prices from 2,800 € + VAT.
Gantry cranes on wheels, GP series from 500 to 5,000 kg

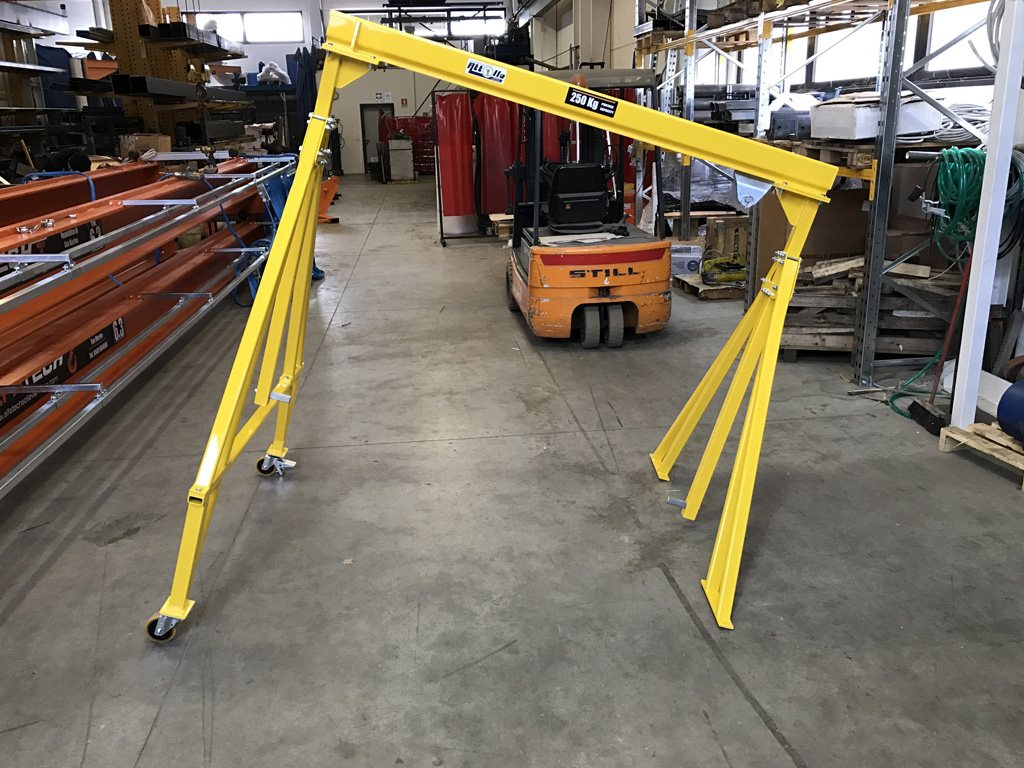

The workshop's mobile A-frame gantry: legs in tubular section, cross-beam in IPE section and four Vulkolan swivel castors with brake for moving the unloaded crane on smooth floors. GP series in 18 models, from 500 to 5,000 kg with height and span of 3, 4 or 5 metres; above that, the 6,000 kg steel crane with screw-type outriggers and wire rope hoist.
Gantry cranes on rails with powered travel
Two powered wheels and two idle wheels on a rail fixed to the floor: the crane travels with the load raised along the whole runway and replaces an overhead travelling crane on pillars without touching the roof. Controls from pendant or radio remote, for stone masons, cutting centres and production.
Height-adjustable gantry crane

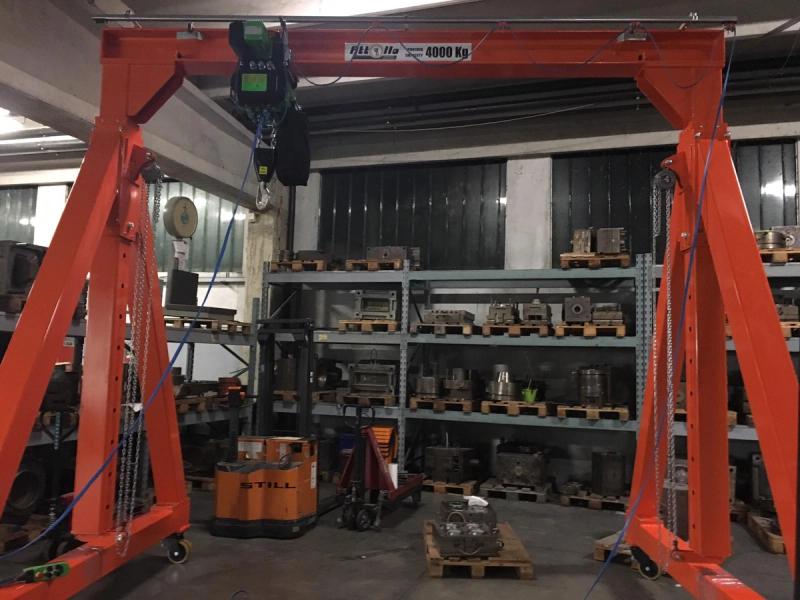

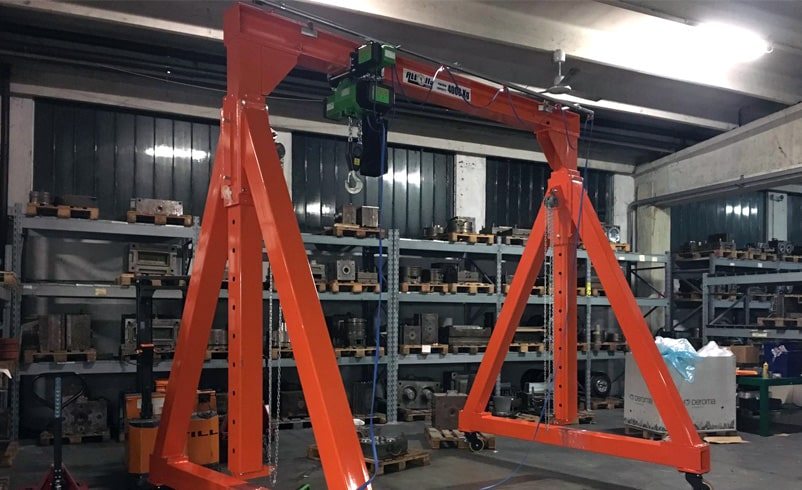

Telescopic uprights that lock at several heights: the crane passes low under obstacles and works high over the part. For departments where part sizes and working height change often, from 4,000 kg.
Fixed gantry crane for boat hauling
The marina's fixed A-frame gantry: anchored to the quay, with protective canopy and fixed cross lifting beam that keeps the slings at the correct spacing. From 4,000 kg, painted for marine climates; for larger hulls, the jib cranes for boat hauling up to 40 tonnes.
Steel gantry cranes: models, capacities and dimensions
| Model | Rated capacity | Height | Handling | Lifting |
|---|---|---|---|---|
| Steel gantry crane on wheels, 1,000 kg, GP series from 500 to 5,000 kg | 1,000 kg (GP1000) | 3,000, 4,000 or 5,000 mm | pushed by hand, with the crane unloaded; rail wheels on request | manual or electric chain hoist, with trolley, as preferred |
| Steel gantry crane on wheels, 3,000 kg | 3,000 kg (GP3000) | 3,000, 4,000 or 5,000 mm | — | manual or electric chain hoist, with trolley, as preferred |
| Steel gantry crane, mobile on wheels, 6,000 kg | 6.000 kg | height and span to suit the building | steel, on wheels, with screw-type outriggers | electric wire rope hoist with electric trolley |
| Rail-mounted gantry crane with powered wheels, 2,000 kg | 2,000 kg | height, span and rail length to suit the layout | on floor rail, 2 powered wheels + 2 idle, with the load | electric chain hoist with electric trolley |
| Height-adjustable steel gantry crane, 4,000 kg | 4.000 kg | adjustable, telescopic uprights lockable in several positions | steel, on braked wheels | manual or electric chain hoist with trolley |
| Fixed steel gantry crane for boat hauling, 4,000 kg | 4.000 kg | — | fixed steel A-frame gantry, anchored to the ground | protective canopy, fixed cross lifting beam |
The GP series on wheels: catalogue capacities and dimensions
| Model | Rated capacity | Height H | Span L | Clear height R | Wheelbase S |
|---|---|---|---|---|---|
| GP0500 | 500 kg | 3 / 4 / 5 m | 3 / 4 / 5 m | 2.000 / 2.800 / 3.900 mm | 1.500 / 2.000 / 2.500 mm |
| GP1000 | 1,000 kg | 3 / 4 / 5 m | 3 / 4 / 5 m | 2.000 / 2.800 / 3.900 mm | 1.500 / 2.000 / 2.500 mm |
| GP2000 | 2,000 kg | 3 / 4 / 5 m | 3 / 4 / 5 m | 2.000 / 2.800 / 3.900 mm | 1.500 / 2.000 / 2.500 mm |
| GP3000 | 3,000 kg | 3 / 4 / 5 m | 3 / 4 / 5 m | 2.000 / 2.800 / 3.900 mm | 1.500 / 2.000 / 2.500 mm |
| GP4000 | 4.000 kg | 3 / 4 / 5 m | 3 / 4 / 5 m | 2.000 / 2.800 / 3.900 mm | 1.500 / 2.000 / 2.500 mm |
| GP5000 | 5,000 kg | 3 / 4 / 5 m | 3 / 4 / 5 m | 2.000 / 2.800 / 3.900 mm | 1.500 / 2.000 / 2.500 mm |
Data from the Attollo catalogue, page 23: for each capacity three sizes with equal height and span. Higher capacities, different dimensions and rail wheels on request.
How to choose steel gantry cranes
Capacity and dimensions
The capacity is that of the heaviest part plus the lifting attachment; height and span are chosen on the part and the space: the clear height under beam (2 to 3.9 m in the GP series) minus the hoist headroom gives the hook height. With 3 sizes per capacity the series covers almost every workshop.
Moving the crane or moving the load
On swivel castors the crane is moved unloaded and the load is lifted with the crane stationary and braked: it is the simplest and cheapest configuration. If the load has to travel suspended along a route, the version on rails with powered wheels is required.
The floor
Vulkolan wheels need a smooth, level floor; where it is not, the 6,000 kg crane has screw-type outriggers to work level, and for outdoor yards rails are used.
The hoist
The cranes are supplied without a hoist: manual chain hoist with push trolley for occasional lifts, electric chain hoist with electric trolley for frequent cycles, wire rope hoist for heavy loads. It is quoted with the crane according to capacity and speed.
Steel or aluminium

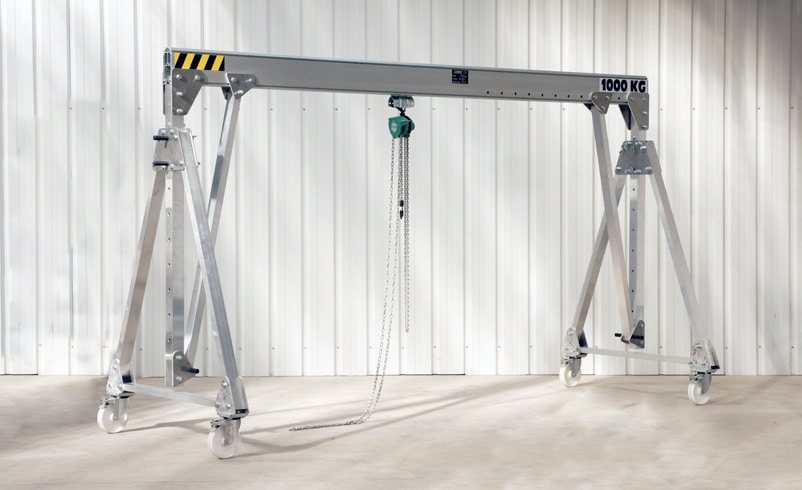

Steel costs less for the same capacity and stays in the department; aluminium dismantles, travels in a van and is assembled by hand, for those who work in different places. See the aluminium gantry crane category.
Steel gantry cranes: the most common questions
List prices for the GP series on wheels start at 2,800 € + VAT for 1,000 kg and 5,500 € for 3,000 kg; the 4,000 kg height-adjustable crane is 9,500 €, the fixed boat-hauling crane 8,500 €, the powered crane on rails 11,000 €, the 6,000 kg steel crane 15,000 €. Hoist not included.
Only the version on rails with powered wheels. Cranes on swivel castors are moved unloaded and lift with the crane stationary and braked.
The catalogue GP series runs from 500 to 5,000 kg; the steel gantry with outriggers reaches 6,000 kg; higher capacities and sizes outside the table are custom-built in Milan.
Yes: the gantry is the structure; the hoist with trolley is chosen on capacity and speed and supplied together with it, manual or electric.
Yes: built to the Machinery Directive 2006/42/EC and delivered with CE marking, capacity plate, declaration of conformity and manual.
