Boat hoist jib cranes: from 1 to 25 tonnes, 360° electric slewing
The boat hoist jib crane, or marine jib crane, lifts boats on the quay and in boat storage: column anchored to the ground, jib with trolley and hoist, 360° electric slewing on slewing ring and paint finish for marine climates. Eight list-price cranes produced by Attollo, from manual slewing for canoes and inflatables to electric cranes of 1, 4, 6, 10, 20 and 25 tonnes, and capacities up to 40 tonnes custom-built. List prices from 1,200 € + VAT.
Manual slewing cranes for canoes and small boats

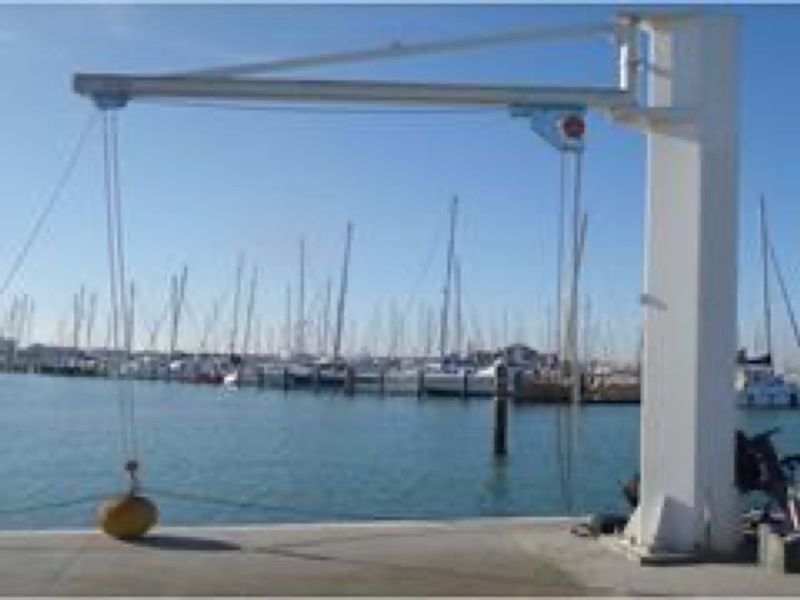

The pillar-mounted crane with 360° manual slewing, hand chain hoist and push trolley: no power supply needed, for canoes, inflatables and small boats on the quay and in boat storage.
Electric cranes from 1 to 6 tonnes

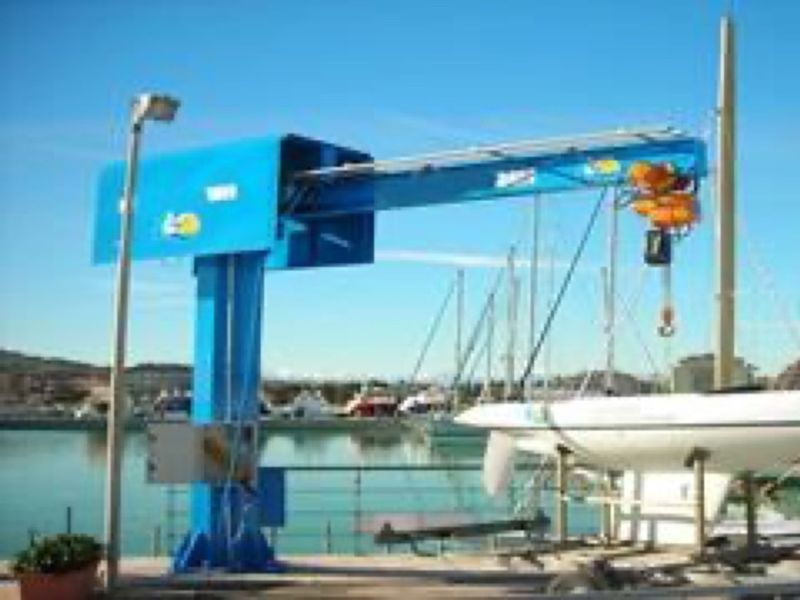

360° electric slewing on slewing ring and weatherproof electric hoist: 1 tonne for inflatables and small boats, 4 tonnes for medium-sized boats, 6 tonnes with a tall column for sailing boats, so the mast does not touch the crane.
Electric cranes from 10 to 25 tonnes
Marine jib cranes for boatyards and ports: 10, 20 and 25 tonnes with 360° electric slewing, with one or two jibs, up to 40 tonnes custom-built.
Jib cranes for boat hauling: models, capacities and dimensions
| Model | Rated capacity | Rotation | Lifting | Use |
|---|---|---|---|---|

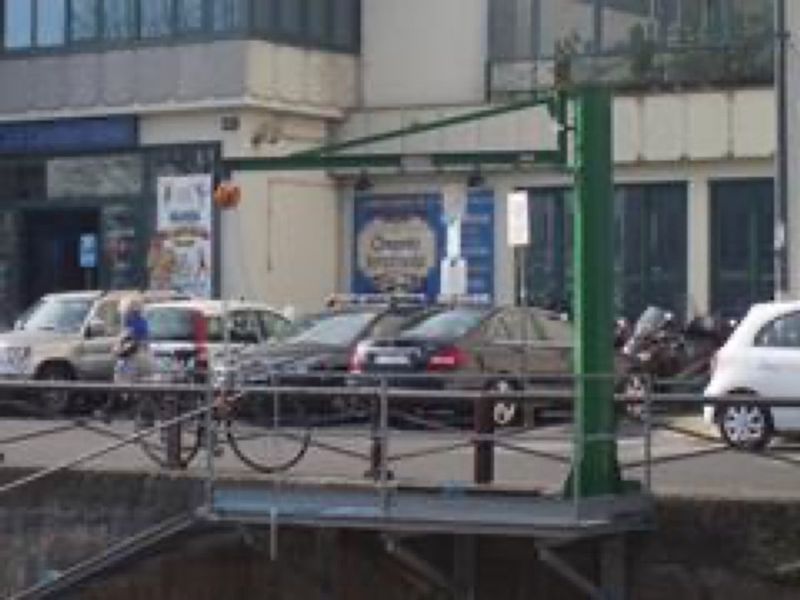

| Jib crane for hauling canoes and tenders, manual slewing | custom-built, for canoes, kayaks and tenders | manual, 360° | hand chain hoist with push trolley | sailing clubs, small marinas, boat storage |
| Manual jib crane for hauling small boats and inflatables | custom-built, for small boats and inflatables | manual, 360° | hand chain hoist, push trolley | quays, boat storage, small marinas |
| 1-tonne boat hoist with electric slewing | 1,000 kg | electric, 360° on slewing ring | electric hoist and trolley, protected from the weather | inflatables and small boats |
| 4-tonne jib crane for boat hauling | 4.000 kg | electric, 360° on slewing ring | electric hoist with trolley, protected from the weather | mid-size motorboats |
| 6-tonne jib crane for hauling sailing boats, tall column | 6.000 kg | electric, 360° on slewing ring | electric hoist with trolley, protected from the weather | sailing boats, quay and boat storage |

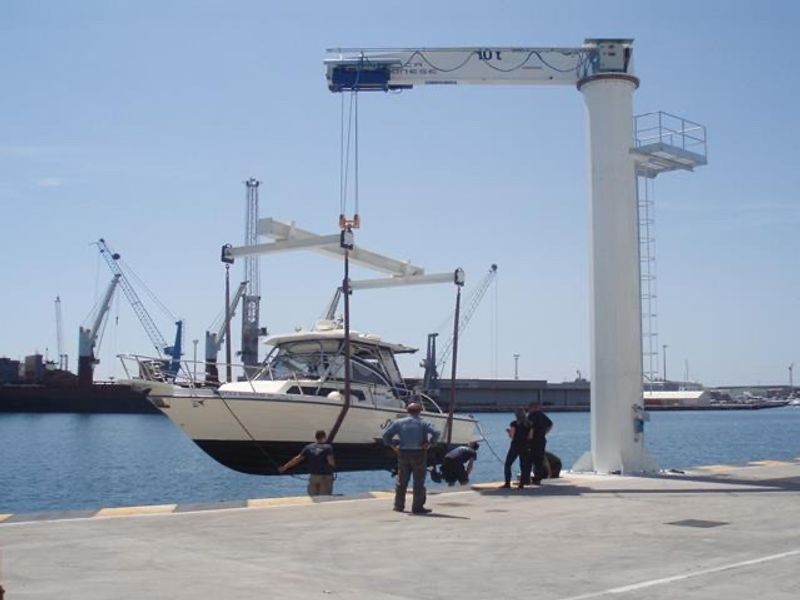

| 10-tonne pillar-mounted jib crane for boat hauling | 10,000 kg | electric, 360° on slewing ring | electric wire rope hoist with trolley, protected from the weather | boatyards, ports, boat storage |

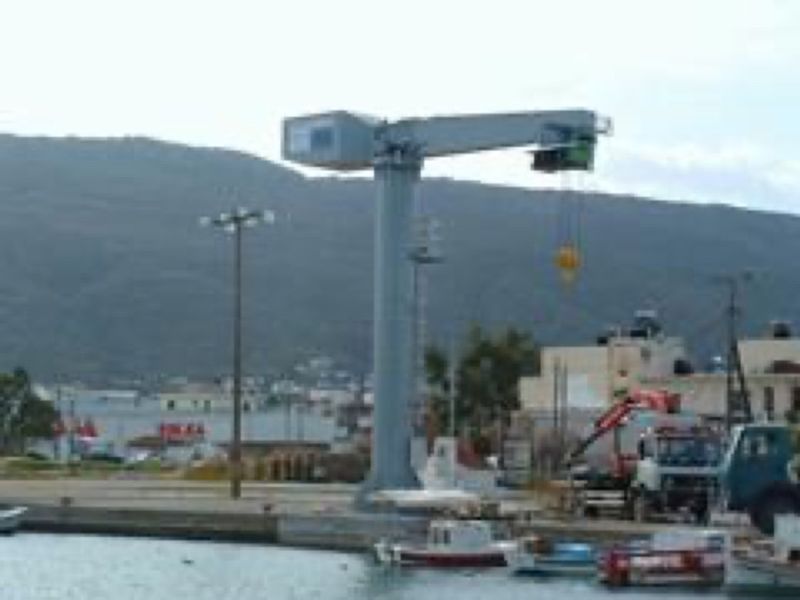

| 20-tonne electric jib crane for boat hauling | 20,000 kg | electric, 360° on slewing ring | electric wire rope hoist with electric trolley | boatyards, ports |

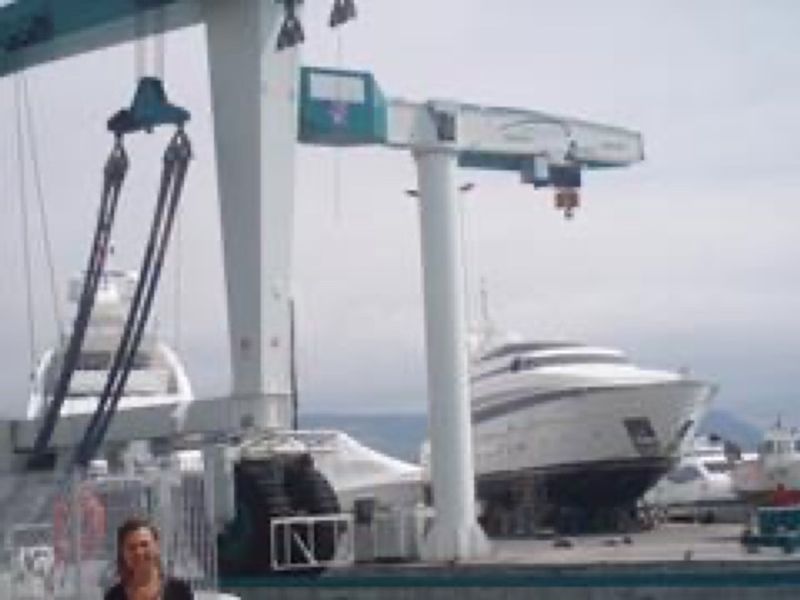

| 25-tonne jib crane for boat hauling | 25.000 kg | electric, 360° on slewing ring | electric wire rope hoist with electric trolley | boatyards, ports, heavy hulls |
Boat hoist cranes in the price list
| Crane | Rated capacity | Rotation | For which boats | List price |
|---|---|---|---|---|
| Canoe hoist | made to measure | manual 360° | canoes, kayaks, tenders | 1,200 € |
| Manual boat hoist | made to measure | manual 360° | small boats and inflatables | 1,500 € |
| Electric 1 t | 1,000 kg | electric 360° | inflatables and small boats | 10,000 € |
| Electric 4 t | 4.000 kg | electric 360° | medium-sized boats | 25,000 € |
| Electric 6 t, tall column | 6.000 kg | electric 360° | sailing boats | 30,000 € |
| Electric 10 t | 10,000 kg | electric 360° | boatyards and ports | 40,000 € |
| Electric 20 t | 20,000 kg | electric 360° | boatyards and ports | 32,000 € |
| Electric 25 t | 25.000 kg | electric 360° | boatyards and ports | 65,000 € |
List prices + VAT, to be confirmed in the quotation: column height, outreach, hoist and foundation are defined on the basis of the boats and the quay. Capacities up to 40 tonnes custom-built.
How to choose jib cranes for boat hauling
Boat weight
The capacity is the weight of the heaviest boat fully loaded plus the lifting beam and lifting slings; with a margin, because the crane works for years and boats get bigger. Up to 25 tonnes in the price list, 40 custom-built.
Sailing boats
The mast must pass under the jib: that is why the 6-tonne crane has a tall column. For large sailing boats the column height is assessed on the tallest hull.
Outreach and quay
The jib must reach over the water with the boat under the hook and slew as far as the hauling trailer or cradle: the outreach is defined on the quay, the foundation on the loads.
Manual or electric
For canoes and tenders, manual slewing and a chain hoist are enough and no power connection is needed; from motorboats upwards, electric slewing on slewing ring and an electric hoist, both weatherproof.
Lifting beam and slings
Boats are lifted with lifting slings under the hull and a cross or telescopic lifting beam: these are quoted with the crane, based on the customer's boats.
Jib cranes for boat hauling: the most common questions
List price from 1,200 € + VAT for the manual canoe crane, 10,000 € for the 1-tonne electric crane, 25,000 € for the 4 t, 30,000 € for the 6 t, 40,000 € for the 10 t, 32,000 € for the 20 t and 65,000 € for the 25 t; foundation, hoist and lifting beam are confirmed in the quotation.
25 tonnes in the price list; custom-built up to 40 tonnes, with one or two jibs, with electric slewing on slewing ring.
Yes: paint finish treated for marine climates, weatherproof electric hoist and trolley, electrical components in outdoor execution.
Yes: the column is anchored to a concrete foundation sized for the crane loads; we supply the drawing with the anchor bolts.
Yes: built to the Machinery Directive 2006/42/EC and delivered with CE marking, capacity plate, declaration of conformity and manual.
