Manual jib crane for hauling small boats and inflatables

Manual jib crane for hauling small boats and inflatables
Jib cranes for boat hauling

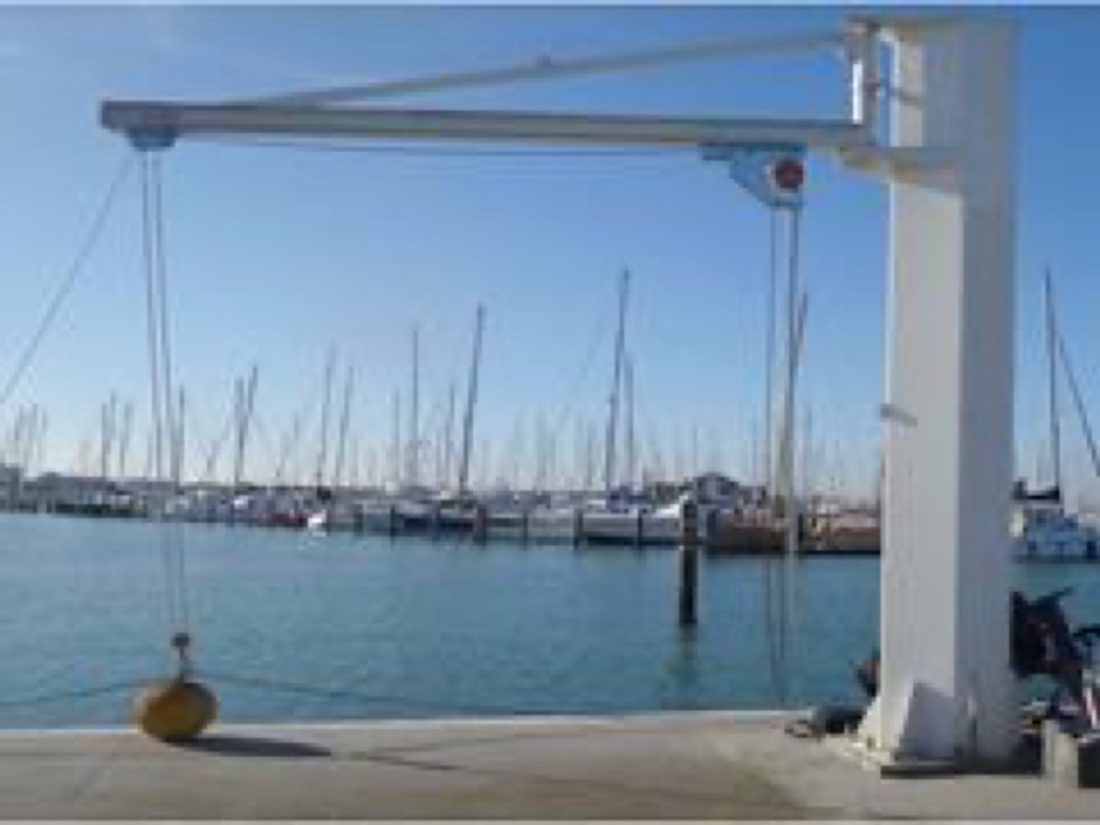

The manual jib crane for boat hauling works without electrical power: manual 360° slewing, a hand chain hoist and a push trolley to lower and recover small boats and inflatables at the quay and in boat storage. Built in Milan and painted for marine environments, list price 1,500 € + VAT.

The chain hoist with push trolley runs along the jib: the hook is brought over the boat, the flat webbing slings are attached with the lifting beam, the boat is lifted and the jib is slewed to the launching trolley or the boat cradle.

Capacity, column height and outreach are defined on the customer's boats and quay; the column is anchored to a concrete foundation with anchor bolts.

It is the crane for boat storage yards and small marinas with no power connection on the quay; with several boats a day the 1-tonne electric crane is the better choice, with hoist and trolley protected from the weather.

Painted with anti-rust primer and two coats of enamel with marine-environment treatment; certified to 2006/42/EC with capacity plate and declaration of conformity.

Rated capacitycustom-built, for small boats and inflatables
Rotationmanual, 360°
Liftinghand chain hoist, push trolley
Finishfor marine environments
Usequays, boat storage, small marinas
Certification2006/42/EC, capacity plate and declaration of conformity
€ 1.500 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

Manual jib crane for hauling small boats and inflatables: the most common questions

List price 1,500 € + VAT; lifting beam, slings and foundation are quoted on the boats.
