10-tonne pillar-mounted jib crane for boat hauling

10-tonne pillar-mounted jib crane for boat hauling
Jib cranes for boat hauling

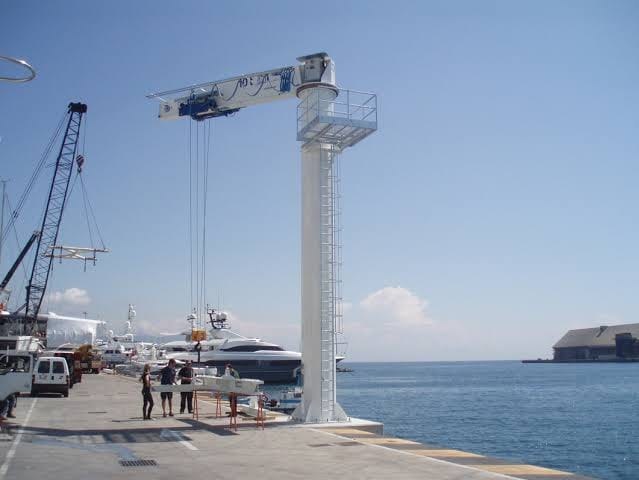

The 10-tonne jib crane for boat hauling is the marine jib crane for boatyards and ports: a column anchored to the quay, electric 360° slewing on slewing ring and a wire rope hoist with electric trolley protected from the weather, to lift and set down motorboats and sailing boats up to 10 tonnes. Built in Milan, list price 40,000 € + VAT.

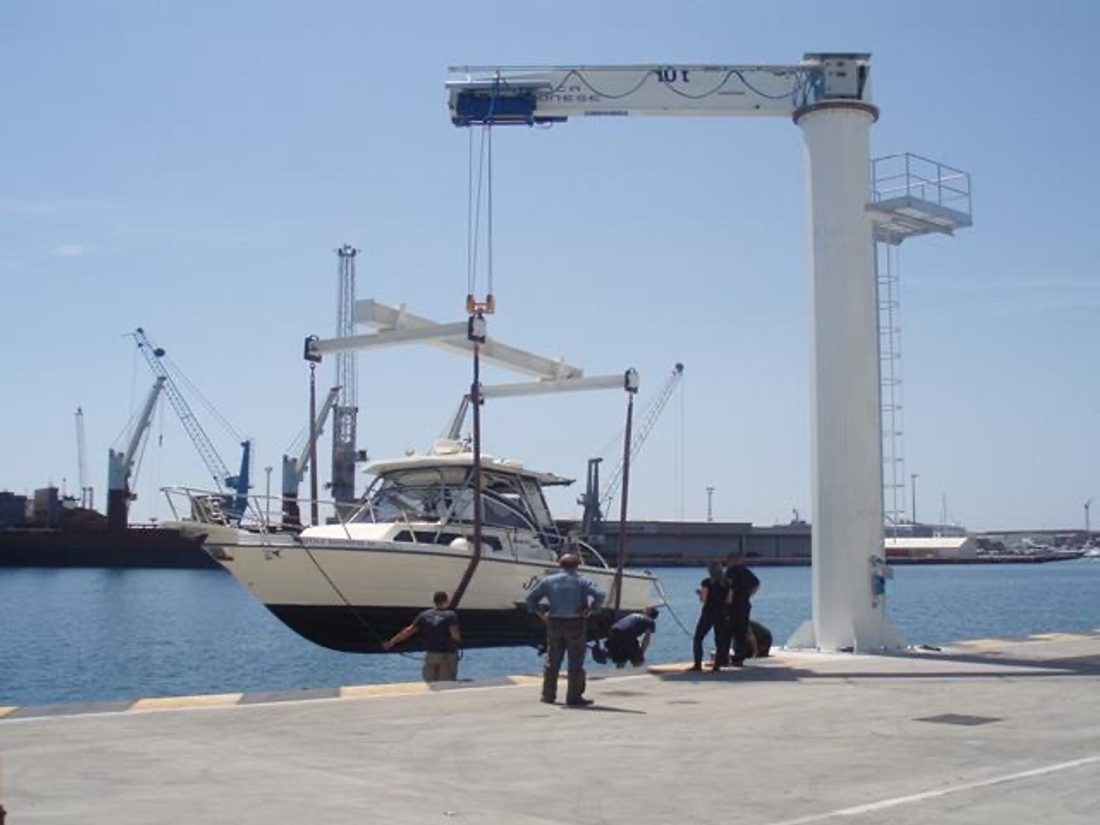

At ten tonnes the crane works with a wire rope hoist and a telescopic lifting beam with four flat webbing slings: the hull rises level, slews from the water to the boat cradle and is set down with no manual handling; controls by radio remote control.

The concrete foundation and the anchor bolts are sized on the crane moments with the load at the jib tip; column height and outreach are defined on the boats and the quay.

It is the alternative to the travel lift for ports with little space: a column instead of a yard, and the boat moves from the water to the launching trolley in a few minutes.

Paint for marine environments, electrical components for outdoor use; certified to 2006/42/EC with capacity plate and declaration of conformity, delivered assembled and tested.

Rated capacity10,000 kg
Rotationelectric, 360° on slewing ring
Liftingelectric wire rope hoist with trolley, protected from the weather
Controlspendant control or radio remote control
Useboatyards, ports, boat storage
Certification2006/42/EC, capacity plate and declaration of conformity
€ 40.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

10-tonne pillar-mounted jib crane for boat hauling: the most common questions

List price 40,000 € + VAT; foundation, hoist, lifting beam and slings are confirmed in the quotation.
