6-tonne jib crane for hauling sailing boats, tall column

6-tonne jib crane for hauling sailing boats, tall column
Jib cranes for boat hauling

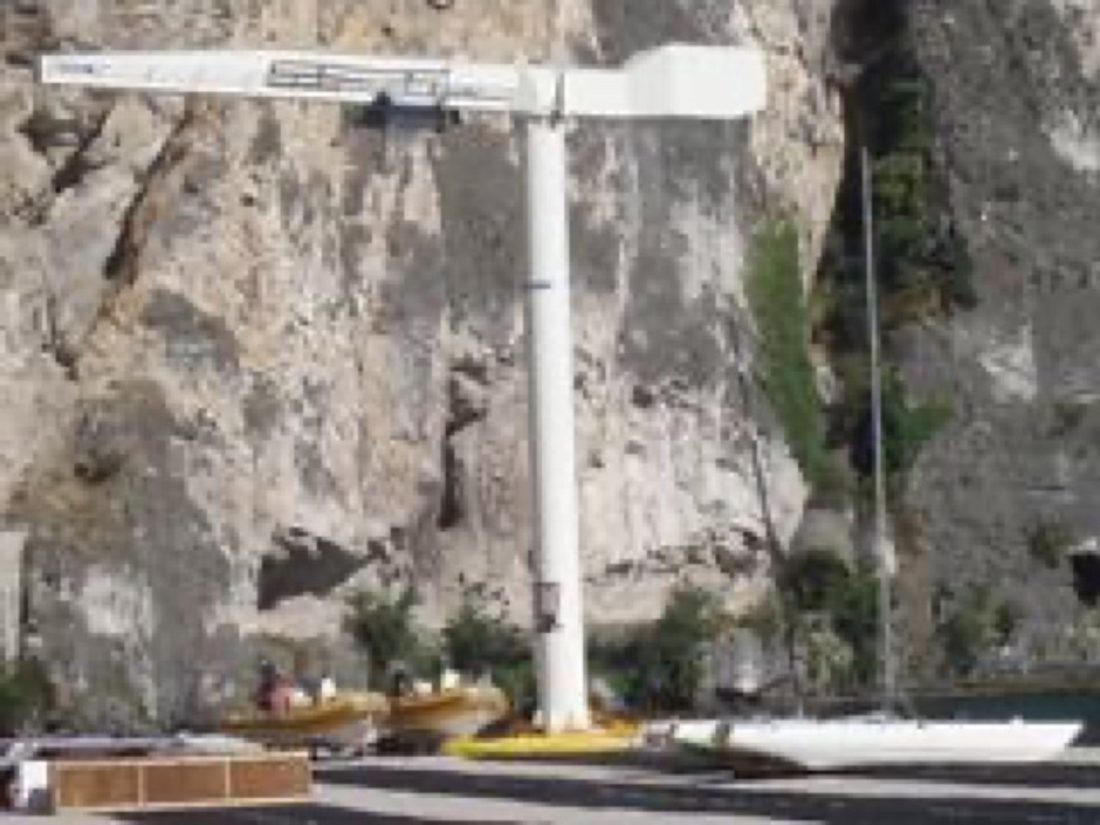

The 6-tonne jib crane for boat hauling is designed for sailing boats: the very tall column carries the jib above the mast, so the hull is lifted without unstepping the mast. Electric 360° slewing on slewing ring, electric hoist and trolley protected from the weather, paint for marine environments. Built in Milan, list price 30,000 € + VAT.

The column height is defined on the tallest mast among the boats to be hauled: the jib passes above the spreaders and the hook comes down with the flat webbing slings under the hull, either side of the keel.

Six tonnes cover medium-sized cruising sailing boats; for heavier hulls the range continues with 10, 20 and 25 tonnes.

Slewing, trolley travel and lifting from the pendant control or the radio remote control; telescopic lifting beam and slings are quoted on the boats; concrete foundation on the quay.

Certified to 2006/42/EC with capacity plate and declaration of conformity; delivered assembled and tested.

Rated capacity6.000 kg
Columntall, to clear the mast
Rotationelectric, 360° on slewing ring
Liftingelectric hoist with trolley, protected from the weather
Usesailing boats, quay and boat storage
Certification2006/42/EC, capacity plate and declaration of conformity
€ 30.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

6-tonne jib crane for hauling sailing boats, tall column: the most common questions

List price 30,000 € + VAT; column height, foundation and lifting beam are confirmed in the quotation.
