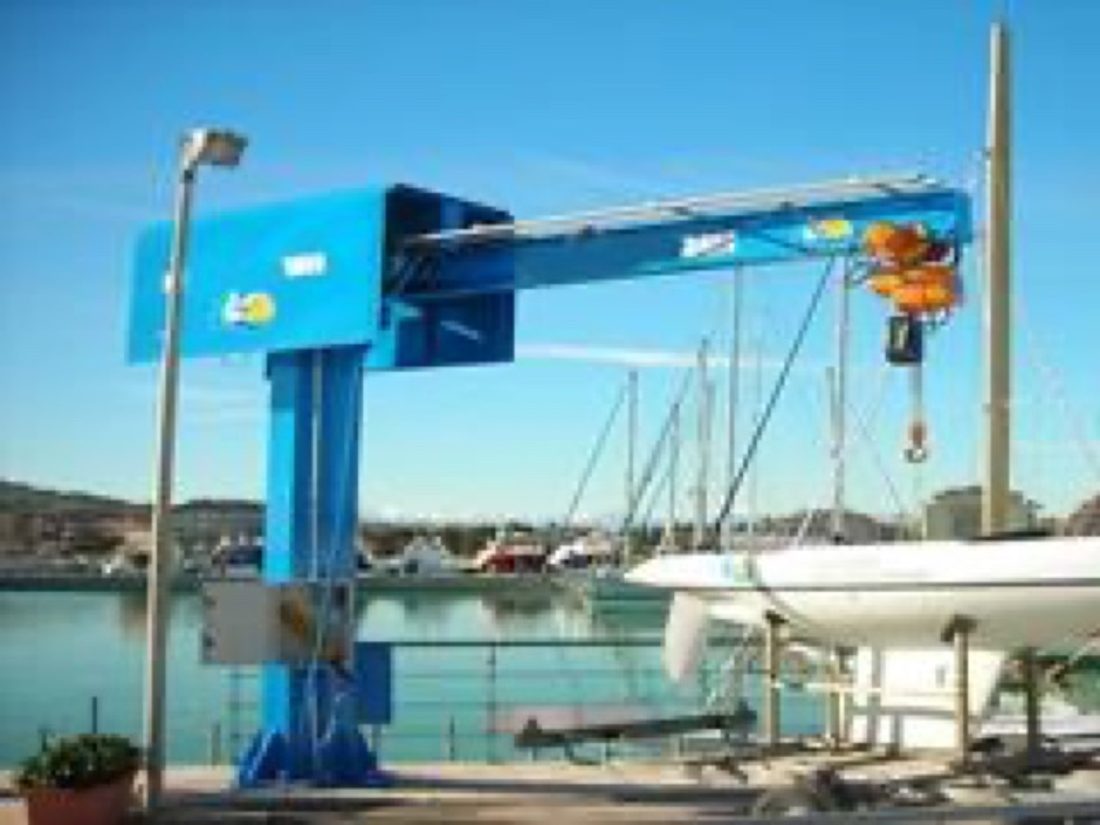

1-tonne boat hoist with electric slewing

1-tonne boat hoist with electric slewing
Jib cranes for boat hauling

The 1-tonne boat hoist is the first electric marine jib crane in the series: 360° slewing on a motorised slewing ring, electric hoist and trolley protected from the weather, for inflatables and small boats at the quay and in boat storage, operated effortlessly from the pendant control. Built in Milan, list price 10,000 € + VAT.

The protection of the hoist and the electric trolley is what sets it apart from a workshop crane: covers against rain and salt spray, electrical components in outdoor design and paint for marine environments.

Slewing, trolley travel and lifting are controlled from the pendant control: one person lowers the boat into the water and recovers it onto the launching trolley.

Column height, outreach and foundation are defined on the quay and the boats; cross lifting beam and flat webbing slings are quoted with the crane.

Certified to 2006/42/EC with capacity plate and declaration of conformity; for heavier boats the series continues with 4, 6, 10, 20 and 25 tonnes.

Rated capacity1,000 kg
Rotationelectric, 360° on slewing ring
Liftingelectric hoist and trolley, protected from the weather
Finishfor marine environments
Useinflatables and small boats
Certification2006/42/EC, capacity plate and declaration of conformity
€ 10.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

1-tonne boat hoist with electric slewing: the most common questions

List price 10,000 € + VAT; foundation, lifting beam and slings are confirmed in the quotation.
