20-tonne electric jib crane for boat hauling

20-tonne electric jib crane for boat hauling
Jib cranes for boat hauling

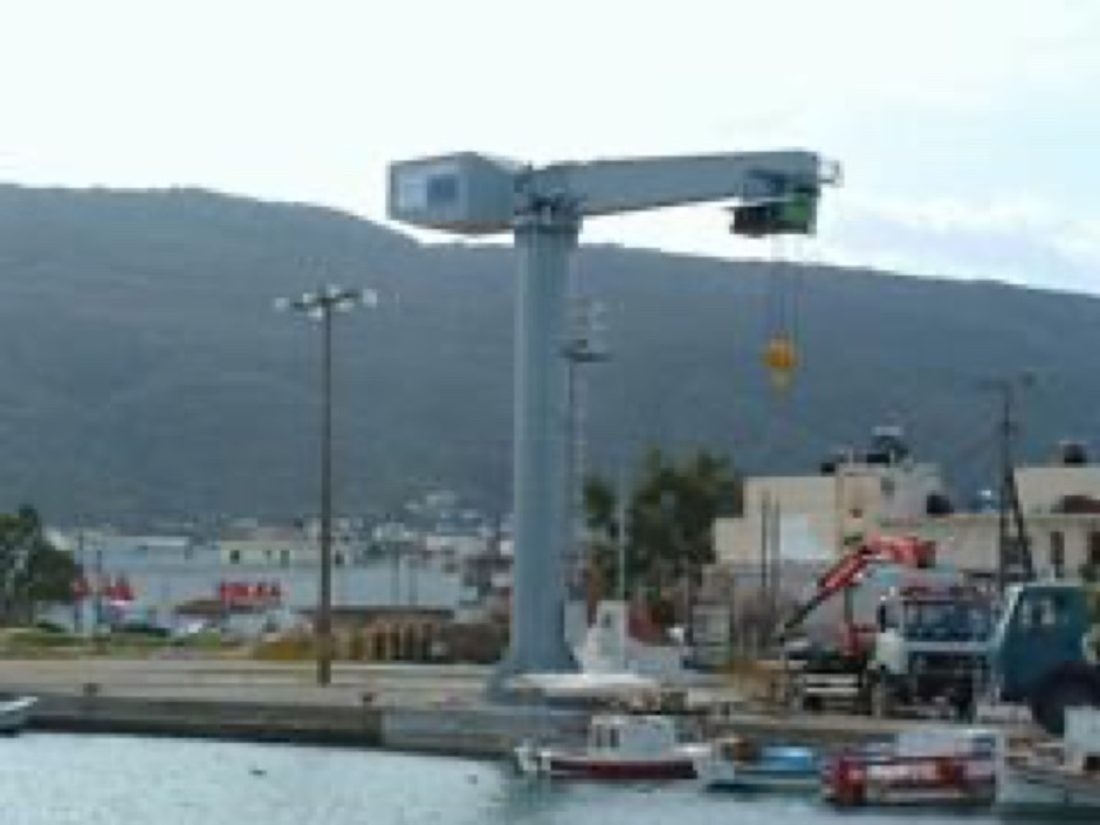

The 20-tonne electric jib crane for boat hauling handles large boats at the quay and in boat storage: steel column on a foundation, electric 360° slewing on slewing ring, wire rope hoist with electric trolley and telescopic lifting beam for the slings. Built in Milan to suit the customer's boats and quay, list price 32,000 € + VAT.

Twenty tonnes cover large motorboats and sailing boats: the hull is taken with four slings and the telescopic lifting beam, rises level and slews from the water to the trolley or the cradle.

The column and the jib are sized on the moments with the load at the jib tip; the concrete foundation and the anchor bolts follow our drawing. Radio remote control to follow the boat from the quay.

Paint for marine environments, hoist and electrical components for outdoor use, trolley protected from the weather.

Certified to 2006/42/EC with capacity plate and declaration of conformity; delivered assembled and tested, with the file for periodic inspections.

Rated capacity20,000 kg
Rotationelectric, 360° on slewing ring
Liftingelectric wire rope hoist with electric trolley
Controlsradio remote control
Useboatyards, ports
Certification2006/42/EC, capacity plate and declaration of conformity
€ 32.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

20-tonne electric jib crane for boat hauling: the most common questions

List price 32,000 € + VAT; outreach, height, foundation and lifting beam are confirmed in the quotation.
