Dismountable aluminium jib crane: 300 kg, 24 kg weight, span up to 2 m
The aluminium jib crane goes wherever it is needed: 300 kg capacity, span adjustable from 900 to 2,000 mm, two heights available and one 24 kg bag that a single operator mounts safely on a fixing base in stainless steel or galvanized steel. For maintenance at different sites, treatment plants and locations where a fixed crane is not justified. List price 2,800 € + VAT.

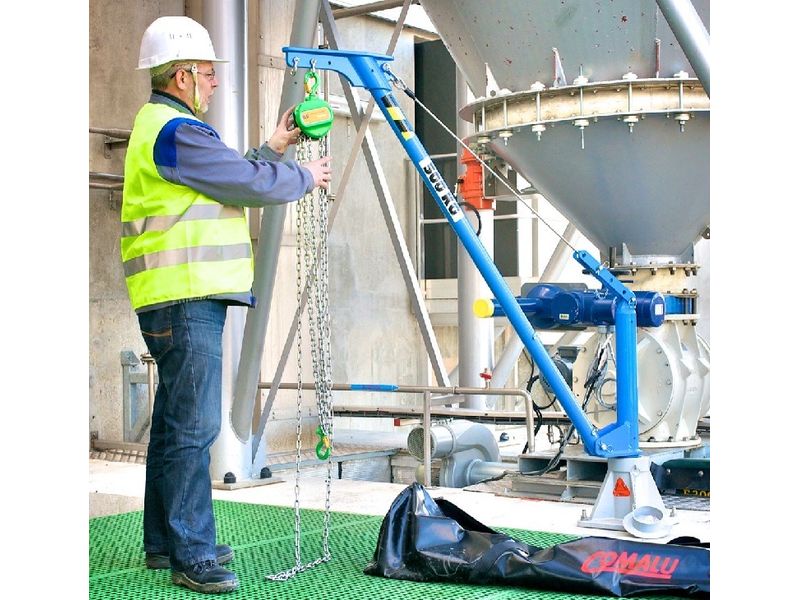

Dismountable aluminium jib crane
Column, jib and wire rope winch in one 24 kg bag: 300 kg capacity with span up to 2 m, stainless steel wire rope, galvanized winch with pulleys; versions with manual winch for people and with 1.5 m span.
Aluminium jib crane: models, capacities and dimensions
| Model | Rated capacity | Span | Weight | Bases |
|---|---|---|---|---|
| Dismountable aluminium jib crane, 300 kg, 24 kg weight | 300 kg | adjustable from 900 to 2,000 mm (1.5 m version: 800-1,500 mm) | 1 bag of 24 kg (2 bags with winch for people) | in stainless steel or galvanized steel |
The manufacturer's versions
| Version | Rated capacity | Span | Height below the hook | Weight |
|---|---|---|---|---|
| Dismountable 300 kg, 2 m span | 300 kg | adjustable 900 – 2,000 mm | from 1,665 to 2,850 mm depending on height setting | 1 bag of 24 kg |
| Dismountable 300 kg with manual winch | 300 kg | adjustable 900 – 2,000 mm | from 1,713 to 2,850 mm depending on height | 2 bags of less than 24 kg |
| Dismountable 300 kg, 1.5 m span | 300 kg | adjustable 800 – 1,500 mm | up to 2,660 mm | 24 kg |
Data from the manufacturer's catalogue: two heights supplied with two extensions; 1 m stainless steel load wire rope; fixing bases in stainless steel or galvanized steel quoted for the installation point.
How to choose aluminium jib crane
Where it is mounted
One fixing base for each work point, in stainless steel or galvanized steel: the crane moves from one base to another and the base remains flush with the floor or the wall.
Span and height
The span is adjustable from 0.9 to 2 m and the crane has two heights: from a height below the hook of 1.6-1.7 m for inspection pits to 2.85 m for lowering a motor into a tank.
People or goods
With the certified manual winch the crane also serves for lifting people in confined spaces; with the standard winch, for loads up to 300 kg.
Aluminium jib crane: the most common questions
List price 2,800 € + VAT; additional mounting bases and the man-riding winch are quoted separately.
One 24 kg bag for the standard version; two bags of less than 24 kg for the version with manual winch: a single operator mounts it.
Yes: aluminium, stainless steel wire rope and galvanized winch are designed for outdoor use; the stainless steel fixing base for aggressive environments.
Yes: Machinery Directive 2006/42/EC, CE marking, capacity plate and declaration of conformity.
