Wall-mounted cranes: the jib crane on a wall or column

The wall-mounted crane is a jib crane without a pillar: the bracket is fixed to a reinforced-concrete column or load-bearing wall and the arm slews 180° without taking up floor space. Three series made by Attollo, with capacities from 125 to 2,000 kg and outreach from 2 to 9 metres, CE certified to 2006/42/EC and supplied complete with electrical system and slewing brake; the hoist is chosen to suit the capacity. List prices from €1,200 + VAT.

Wall-mounted crane

Wall-mounted crane with track-profile arm

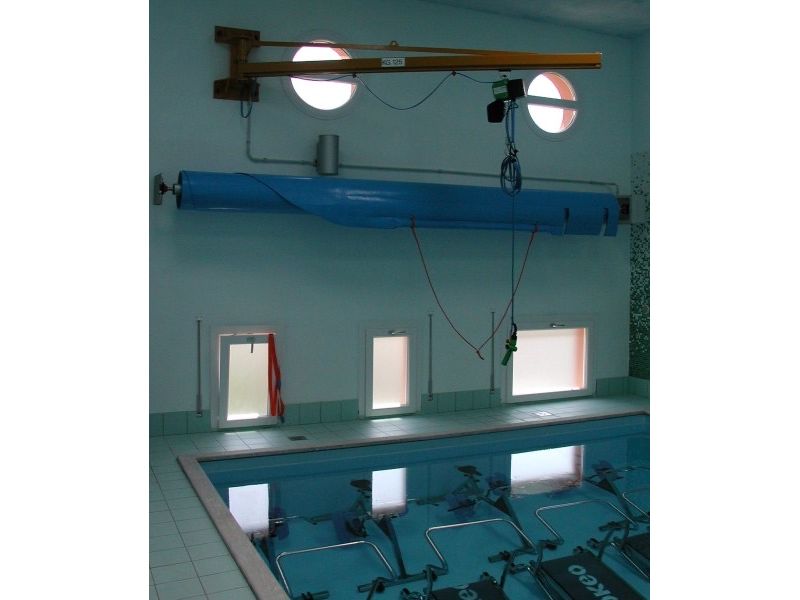

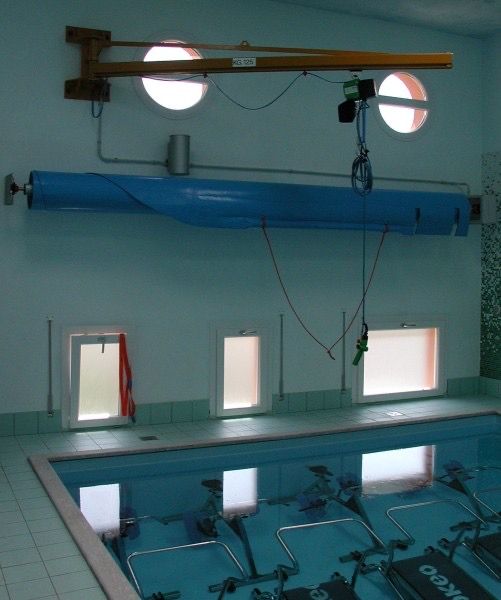

The track-profile arm with the trolley inside: smooth, precise travel for loads up to 1,000 kg. MC series from 125 to 1,000 kg with 3 to 8 m arm, bracket standardised for 300 or 350 mm columns. Also painted for outdoor and marine environments, as in the poolside installation.

Wall-mounted crane

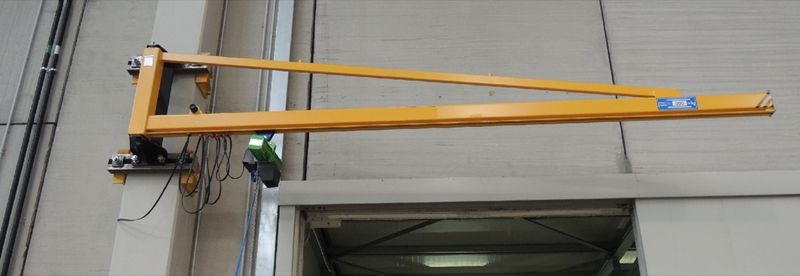

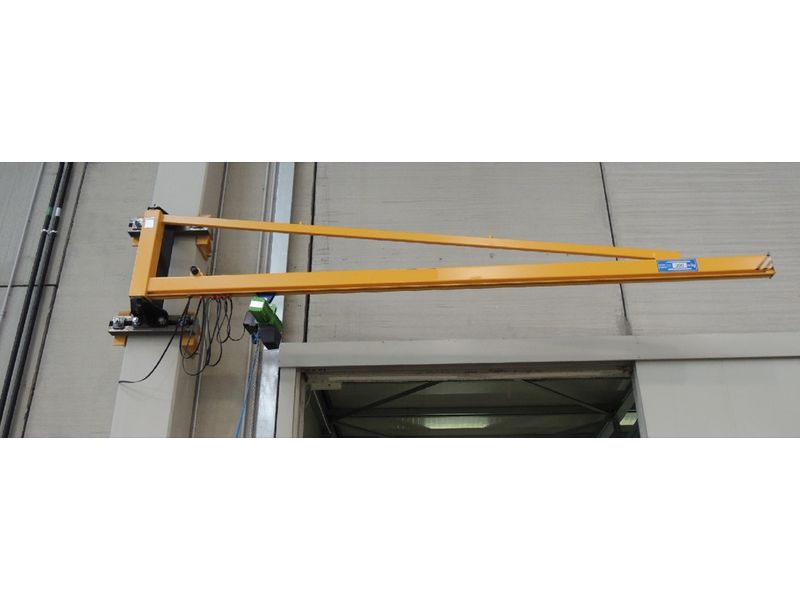

Wall-mounted crane with tie-rod beam

The tie rod allows higher capacities and longer outreach: MT series from 250 to 2,000 kg with 3 to 9 m arm and bracket for 300 to 400 mm columns. Made to measure, we go beyond the table, as with the 500 kg crane with an 11-metre arm already built.

Wall-mounted crane

Wall-mounted crane with cantilever beam

No tie rod above the arm, to leave the full height under the ceiling free: MS series from 125 to 2,000 kg with 2 to 8 m arm. Built on request with the same standardised brackets as the other series.

All models

Wall-mounted crane: models, capacities and dimensions

ModelRated capacityArmColumnRotation
Wall-mounted crane with track-profile arm, 125 to 1,000 kg, poolside too125, 250, 500 and 1,000 kg3 to 8 m, track profilebracket standardised for 300 or 350 mm180° on ball bearings, band brake
Wall-mounted crane with tie-rod beam, 250 to 2,000 kg250, 500, 1,000 and 2,000 kg3 to 9 m (2,000 kg: 3 to 7 m), tie-rod beambracket standardised for 300, 350 or 400 mm180° on ball bearings, band brake

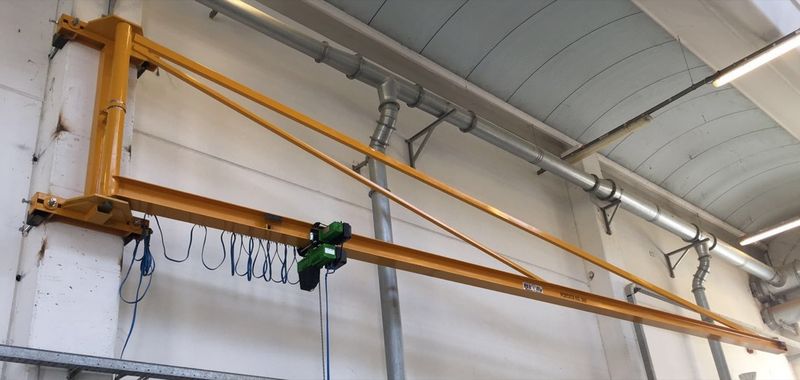

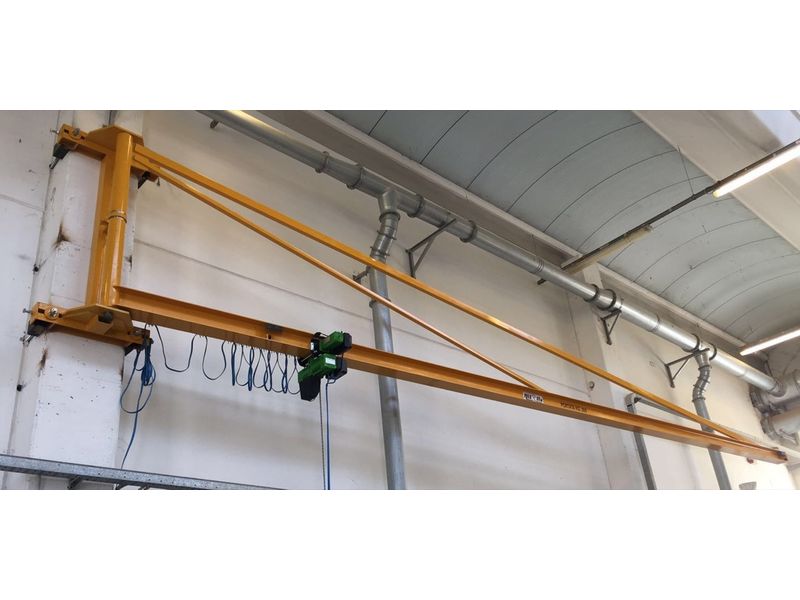

Wall-mounted crane with tie-rod beam, 11 metres and 500 kg500 kg at the tip11 mto a reinforced-concrete column, sized on the moment180° on ball bearings, band brake
All series

The wall-mounted series: capacities, outreach and column size

SeriesArmCapacitiesOutreachColumnRotation
MCtrack profile125 – 1.000 kg3 – 8 m300 – 350 mm180°
MTtie-rod beam250 – 2.000 kg3 – 9 m300 – 400 mm180°
MScantilever beam125 – 2.000 kg2 – 8 m300 – 350 mm180°

Data from the Attollo catalogue. "Column" is the column size the bracket is standardised for; other sizes and wall fixing are designed on request.

How to choose

How to choose wall-mounted crane

The structure to fix it to

The bracket goes on a reinforced-concrete column or load-bearing wall, or on an existing beam: it is fixed by clamping with brackets and counter-brackets around the column, or with chemical anchors where the structure allows. Before the quotation we need the column size and, if possible, a photo.

Capacity and outreach

As with pillar cranes, capacity and arm are chosen together: up to 1,000 kg with an arm up to 8 m the track profile (MC series) is the most economical; beyond that, or with arms up to 9 m, the tie-rod beam (MT series) is needed. The code MT-1000-6 means 1,000 kg with a 6 m arm.

180° slewing and area served

The bracket slews 180° because the column is behind the arm: the area served is a semicircle in front of the structure. If the workstation needs more than 180° or the column is not in the right place, the pillar-mounted jib crane is the alternative.

Installation height

With no pillar, the arm height is set by the fixing point: it is chosen by adding the workpiece height, the hoist and lifting-attachment height and the travel needed. We check it on the drawing before production.

Hoist, controls and outdoor use

Supplied with flat cable and cable carrier and an adjustable band slewing brake; the track-profile version also includes the hoist trolley. Three-phase or single-phase electric chain hoist, radio control on request. For outdoor and poolside use, two coats of enamel with marine-climate treatment.

Frequently asked questions

Wall-mounted crane: the most common questions

List prices start at €1,200 + VAT for the track-profile wall-mounted crane and €2,000 for the tie-rod beam; the 500 kg crane with an 11 m arm is listed at €3,500. The price depends on capacity, outreach and hoist.
