Wall-mounted crane with track-profile arm, 125 to 1,000 kg, poolside too

Wall-mounted crane with track-profile arm, 125 to 1,000 kg, poolside too
Wall-mounted crane

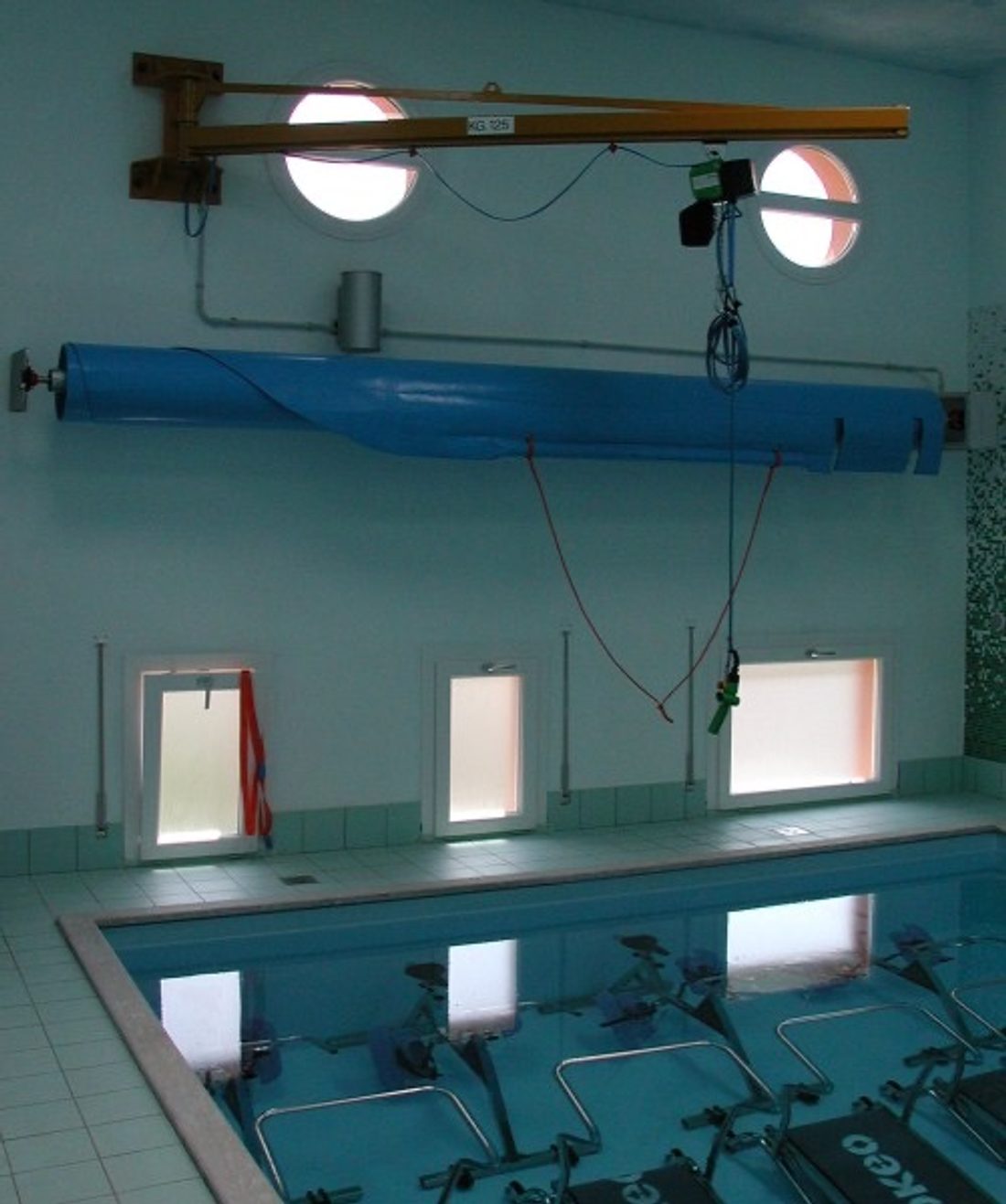

The wall-mounted crane with track-profile arm is the jib crane without a pillar: the bracket is fixed to a reinforced-concrete column or load-bearing wall and the track-profile arm, with the trolley inside, slews 180° without taking up floor space. MC series in 24 models, from 125 to 1,000 kg with 3 to 8 metre arm, also painted for outdoor and marine use: the version in the photo is installed at a poolside, for lifting people in the water with the dedicated accessory.

The bracket is standardised for 300 mm columns up to the 500 kg models with 5 m arm, and for 350 mm for the longer arms and the 1,000 kg models: in the table MC-500-6 means 500 kg, 6 m arm, 350 mm column. Fixing is by clamping with brackets and counter-brackets around the column, or with chemical anchors where the structure allows; for other column sizes or wall fixing the bracket is designed for the case.

The arm slews 180° on ball bearings, with an adjustable band slewing brake, in front of the structure it is fixed to: the area served is the semicircle in front of the column. The supply includes bracket, track-profile arm, hoist trolley, electrical system with flat cable and cable carrier, anti-rust primer and two coats of enamel.

For outdoor use, harbours and poolsides the paint receives the marine-climate treatment and the electrical components are protected; for swimming pools the crane is combined with the seat or harness for lifting people, with the suitable hoist. In the workshop it is the 125 to 1,000 kg crane for the workstation next to a column, with no foundation block and no drilling of the floor.

The arm height is set by the fixing point: it is chosen by adding the workpiece height, the hoist and lifting-attachment height and the travel needed, and we check it on the drawing. For capacities above 1,000 kg or arms up to 9 m you move to the wall-mounted crane with tie-rod beam.

SeriesMC, 24 models
Rated capacity125, 250, 500 and 1,000 kg
Arm3 to 8 m, track profile
Columnbracket standardised for 300 or 350 mm
Rotation180° on ball bearings, band brake
Fixingclamping with brackets and counter-brackets or chemical anchors, on reinforced concrete
Supplybracket, arm, hoist trolley, flat cable and cable carrier
Outdoor usepaint finish with marine-climate treatment, poolside included
CertificationCE 2006/42/EC, plate and declaration of conformity
€ 1.200 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

4 capacities · from 125 to 1000

Data sheets

Frequently asked questions

Wall-mounted crane with track-profile arm, 125 to 1,000 kg, poolside too: the most common questions

List price from €1,200 + VAT; the price depends on capacity, arm, hoist and column size.
