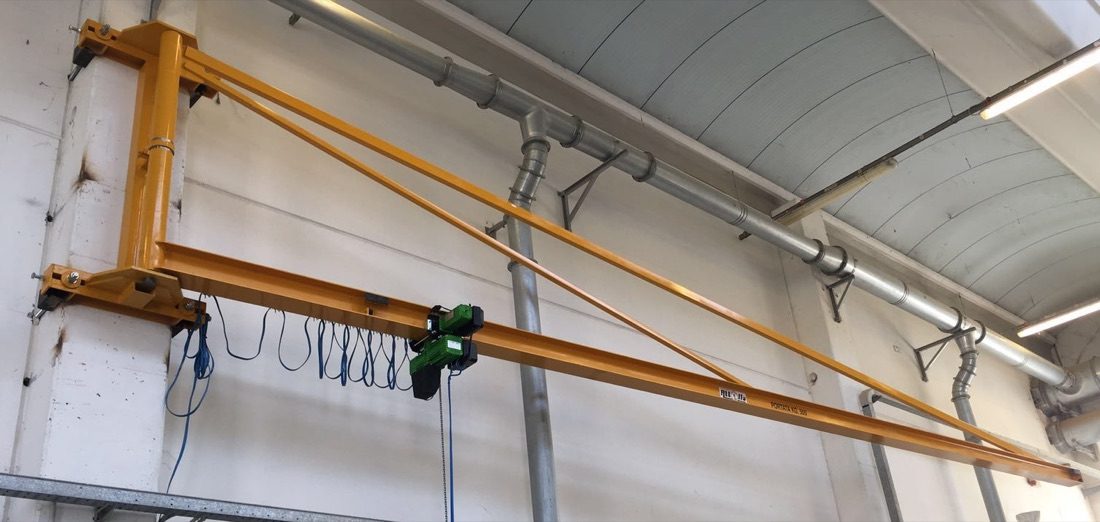

Wall-mounted crane with tie-rod beam, 11 metres and 500 kg

The 11 metre, 500 kg wall-mounted crane with tie-rod beam is the example of what is done beyond the table: the MT series reaches 9 metres of arm, here the tie rod and beam were sized for 11 metres with 500 kg at the tip, keeping the fixing to a reinforced-concrete column and 180° slewing. Made to measure in our Milan workshop, CE certified to 2006/42/EC, list price €3,500 + VAT.
Eleven metres of arm mean serving a whole bay from a single column: a row of benches, a line of machines, a long loading area. With 500 kg at the tip the moment on the bracket is that of a 1,000 kg crane with a 5-6 m arm, and the column must be sized accordingly: checking the existing structure is the first thing we do.
The tie-rod beam is the only set-up that holds this length with the deflection at the tip within limits: the tie rod carries the load to the upper part of the bracket and the beam works in reduced bending. The hoist trolley runs along the whole arm, which slews 180° on ball bearings with an adjustable band brake.
The supply includes bracket, arm with tie rod, electrical system with flat cable and cable carrier over the whole travel, anti-rust primer and two coats of enamel; the electric chain hoist is chosen on capacity and speed, with radio control on request to guide the load at a distance on such a long arm.
The same logic applies to other requests outside the table: long arms with reduced capacities, higher capacities on short arms, brackets for columns of sizes other than 300-400 mm or wall fixing. For the standard models, from 250 to 2,000 kg and from 3 to 9 metres, see the page of the wall-mounted crane with tie-rod beam.
| Type | wall-mounted crane with tie-rod beam, made to measure |
| Rated capacity | 500 kg at the tip |
| Arm | 11 m |
| Rotation | 180° on ball bearings, band brake |
| Fixing | to a reinforced-concrete column, sized on the moment |
| Supply | bracket, arm with tie rod, band brake, flat cable and cable carrier |
| Reference series | MT, 250 to 2,000 kg with 3 to 9 m arm |
| Certification | CE 2006/42/EC, plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Wall-mounted crane with tie-rod beam, 11 metres and 500 kg — models and capacities
| Model | Capacity (KG) | Arm (m) | The bracket is standardised for the column (mm) |
|---|---|---|---|
| MT-250-3 | 250 | 3 | 300 |
| MT-250-4 | 250 | 4 | 300 |
| MT-250-5 | 250 | 5 | 300 |
| MT-250-6 | 250 | 6 | 300 |
| MT-250-7 | 250 | 7 | 300 |
| MT-250-8 | 250 | 8 | 350 |
| MT-250-9 | 250 | 9 | 350 |
| MT-500-3 | 500 | 3 | 300 |
| MT-500-4 | 500 | 4 | 300 |
| MT-500-5 | 500 | 5 | 300 |
| MT-500-6 | 500 | 6 | 350 |
| MT-500-7 | 500 | 7 | 350 |
| MT-500-8 | 500 | 8 | 350 |
| MT-500-9 | 500 | 9 | 350 |
| MT-1000-3 | 1000 | 3 | 350 |
| MT-1000-4 | 1000 | 4 | 350 |
| MT-1000-5 | 1000 | 5 | 350 |
| MT-1000-6 | 1000 | 6 | 350 |
| MT-1000-7 | 1000 | 7 | 350 |
| MT-1000-8 | 1000 | 8 | 350 |
| MT-1000-9 | 1000 | 9 | 350 |
| MT-2000-3 | 2000 | 3 | 350 |
| MT-2000-4 | 2000 | 4 | 350 |
| MT-2000-5 | 2000 | 5 | 350 |
| MT-2000-6 | 2000 | 6 | 400 |
| MT-2000-7 | 2000 | 7 | 400 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
