Wall-mounted crane with tie-rod beam, 250 to 2,000 kg

Wall-mounted crane with tie-rod beam, 250 to 2,000 kg
Wall-mounted crane

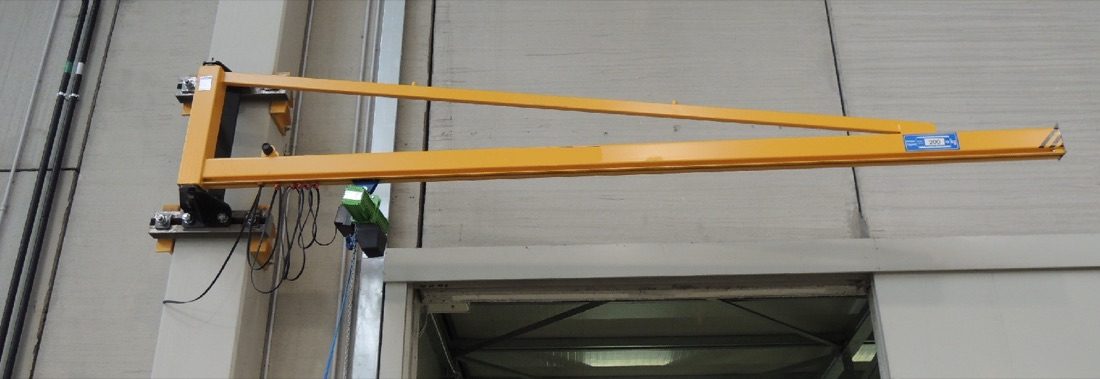

The wall-mounted crane with tie-rod beam is the jib crane without a pillar for the heavier loads and longer arms: the tie rod transfers the arm load to the bracket and allows 2,000 kg and 9 metres, fixing everything to a reinforced-concrete column or load-bearing wall. MT series in 26 models, from 250 to 2,000 kg with 3 to 9 metre arm, built in our Milan workshop and CE certified to 2006/42/EC.

The bracket is standardised on the column: 300 mm for the light models, 350 mm from 500 kg with 6 m arm and for all 1,000 kg models, 400 mm for 2,000 kg with 6 and 7 m arms. The code MT-1000-6 means 1,000 kg with 6 m arm and 350 mm column; the 2,000 kg models have arms from 3 to 7 m, the other capacities up to 9 m.

The arm slews 180° on ball bearings with an adjustable band brake, in front of the structure. The supply includes bracket, tie-rod beam arm, electrical system with flat cable and cable carrier, anti-rust primer and two coats of enamel; electric chain hoist and trolley are chosen on capacity.

Fixing is by clamping with brackets and counter-brackets around the column or with chemical anchors where the structure allows; the structure must withstand the moment of the crane at full load at the tip, and we check it with the column data before the order. For other column sizes, existing beams or wall fixing the bracket is designed for the case.

Beyond the table we work to measure: the 500 kg wall-mounted crane with tie-rod beam and 11 metre arm is an example already built. The catalogue also has the wall-mounted cantilever beam, for low ceilings, and the powered versions with tie-rod beam.

SeriesMT, 26 models
Rated capacity250, 500, 1,000 and 2,000 kg
Arm3 to 9 m (2,000 kg: 3 to 7 m), tie-rod beam
Columnbracket standardised for 300, 350 or 400 mm
Rotation180° on ball bearings, band brake
Fixingclamping with brackets and counter-brackets or chemical anchors, on reinforced concrete
Supplybracket, arm with tie rod, band brake, flat cable and cable carrier
CertificationCE 2006/42/EC, plate and declaration of conformity
€ 2.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

4 capacities · from 250 to 2000
