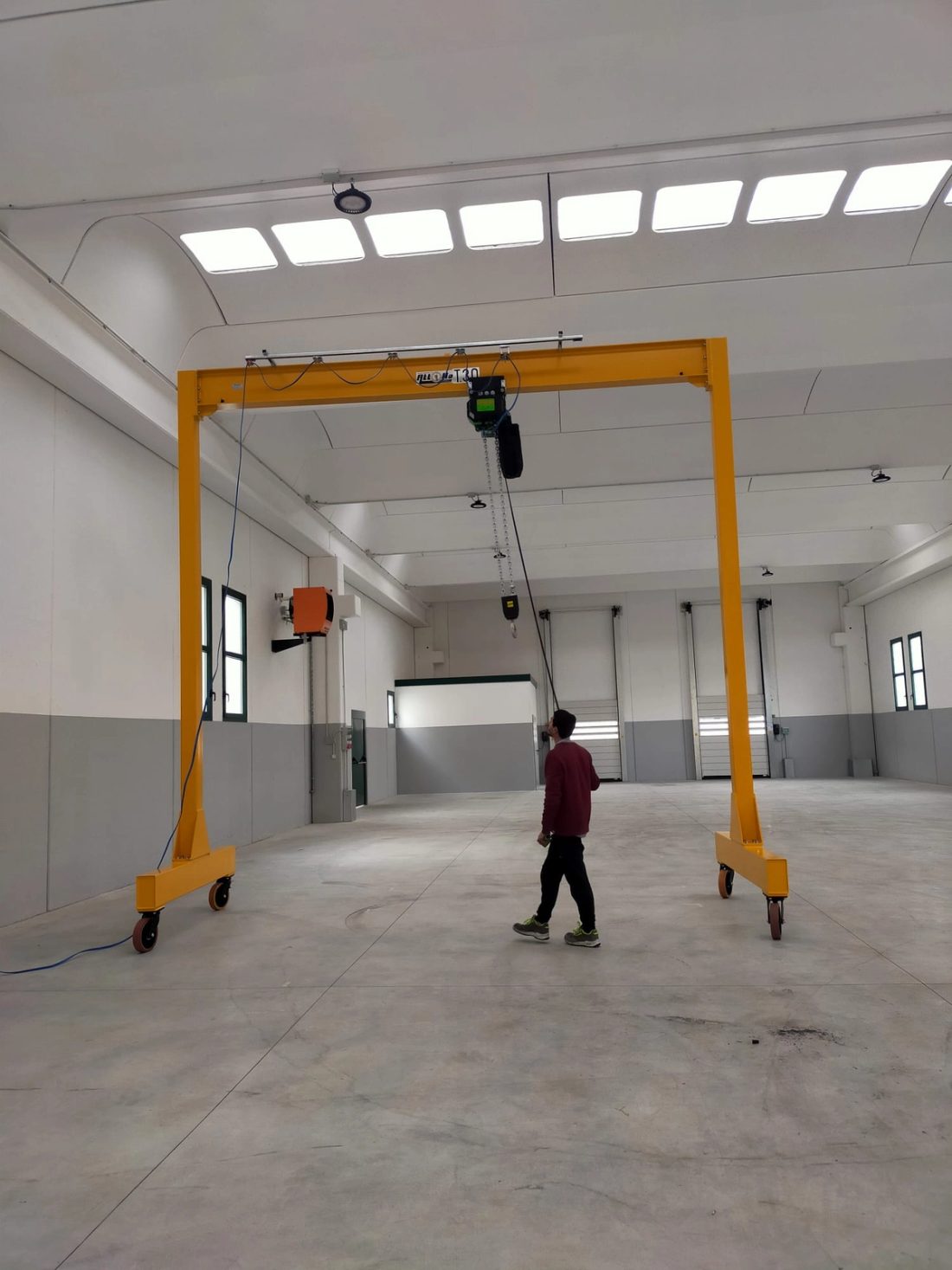

Steel gantry crane on wheels, 3,000 kg

The 3,000 kg steel A-frame gantry crane is the mid-size of the GP series: it replaces the overhead travelling crane in the workshop and on the production floor, is fitted with a manual chain hoist and trolley or with an electric hoist and trolley, and is moved unloaded on its four braked swivel castors. Height and span from 3 to 5 metres, list price 5,500 € + VAT.
In the catalogue table the GP3000 model comes in three sizes: height H and span L of 3,000, 4,000 or 5,000 mm, clear height R under the beam of 2,000, 2,800 or 3,900 mm, wheelbase S of 1,500, 2,000 or 2,500 mm. The structure is the same as the 1,000 kg crane, with larger sections.
Tubular-section legs, IPE cross-beam along which the trolley runs, Vulkolan swivel castors with brake for smooth floors; anti-rust primer and two coats of enamel. Rail wheels, higher capacities and different dimensions on request.
Three tonnes is the weight of a mould, an engine or a bundle of sections: the crane is wheeled over the workpiece with the brakes released, braked, the load is lifted with the hoist and the job is done. Travelling under load is not intended on swivel castors.
Certified to 2006/42/EC with capacity plate and declaration of conformity; hoist and trolley are quoted on the required capacity and speed. For loads up to 6,000 kg the range continues with the steel crane with screw-type outriggers.
| Series | GP, from 500 to 5,000 kg |
| Rated capacity | 3,000 kg (GP3000) |
| Height H | 3,000, 4,000 or 5,000 mm |
| Span L | 3,000, 4,000 or 5,000 mm |
| Clear height R | 2,000, 2,800 or 3,900 mm |
| Wheels | 4 Vulkolan swivel castors with brake |
| Hoist | manual or electric chain hoist, with trolley, as preferred |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
Steel gantry crane on wheels, 3,000 kg: the most common questions
List price 5,500 € + VAT in the basic size; height, span and hoist change the price, which is confirmed in the quotation.
A smooth, level floor: the Vulkolan swivel castors leave no marks and need no rails. On uneven floors or for travelling under load, rail wheels are used.
Clear height R is 2,000, 2,800 or 3,900 mm depending on the size chosen (overall height 3, 4 or 5 m); the hoist headroom must be deducted from this figure.
