Steel gantry crane on wheels, 1,000 kg, GP series from 500 to 5,000 kg

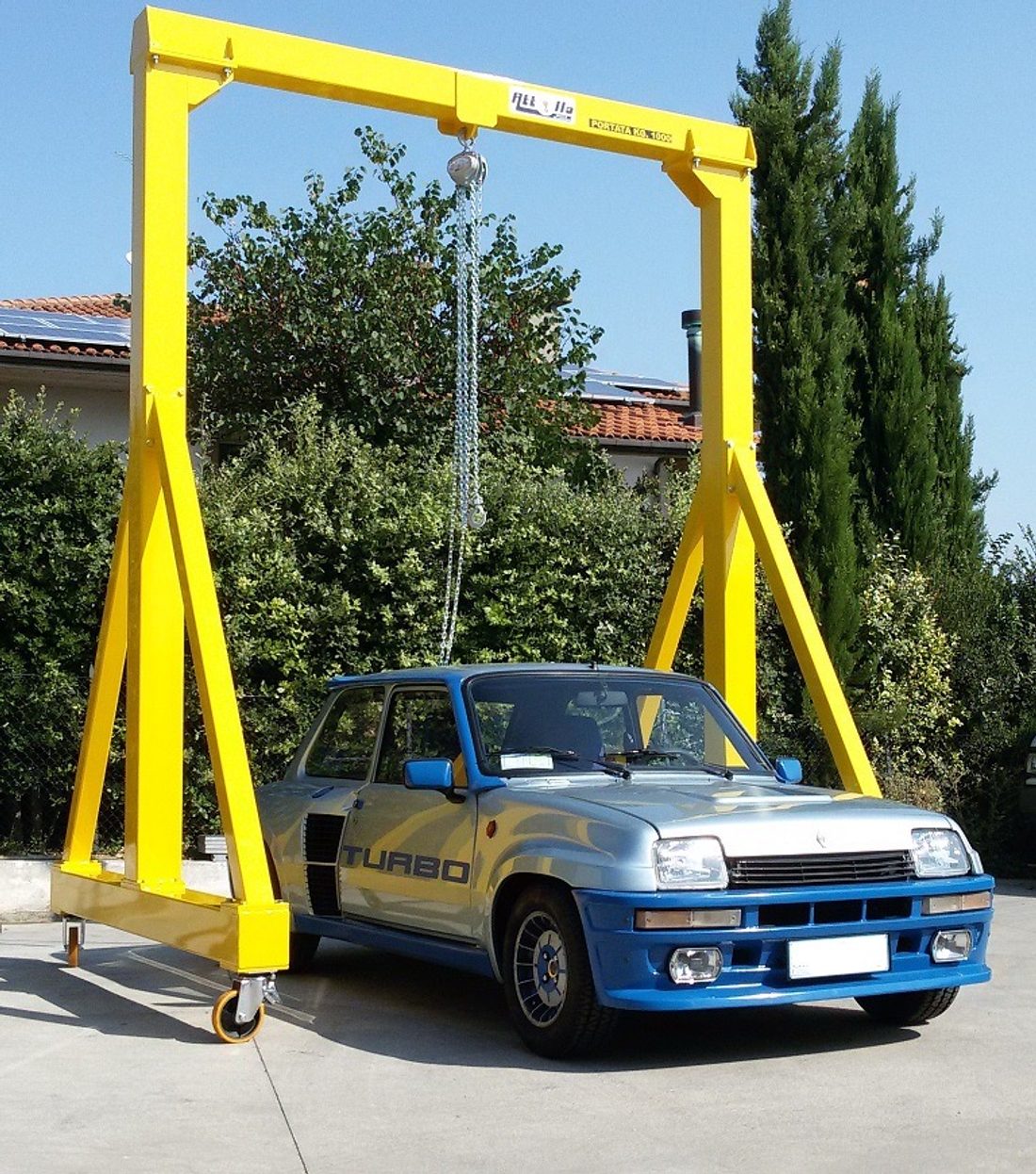

The 1,000 kg steel gantry crane on wheels is the mobile A-frame gantry that replaces the overhead travelling crane where there is none or none can be installed: two tubular-section legs, an IPE cross-beam along which the hoist trolley runs, and four Vulkolan swivel castors to move it between workstations. GP series, made by Attollo, from 500 to 5,000 kg with height and span from 3 to 5 metres, list price from 2,800 € + VAT.
The table on the data sheet is the catalogue table: for each capacity three sizes, with height H and span L of 3, 4 or 5 m, clear height R under the beam of 2,000, 2,800 or 3,900 mm and wheelbase S of 1,500, 2,000 or 2,500 mm. GP1000 is the 1,000 kg model; the same structure exists from 500 to 5,000 kg and, on request, with higher capacities and different dimensions.
The braked swivel castors make it movable by hand on smooth floors, even with the hoist fitted; the load is moved with the crane stationary, because travelling under load calls for the rail-wheel version. Finish: anti-rust primer and two coats of enamel.
The cross-beam takes either a manual chain hoist with push trolley or a 220/380 V electric chain hoist with electric trolley: the choice depends on duty cycles and load weight. The crane is supplied without hoist, which is quoted together with it on the required capacity and speed.
It is the equipment of the machine shop, the steel fabrication shop and the warehouse: it is wheeled over the workpiece, the load is lifted, the job is done, the area is cleared. Certified to 2006/42/EC with capacity plate and declaration of conformity; models above 2,000 kg or with dimensions outside the table are quoted on request.
| Series | GP, 18 models from 500 to 5,000 kg |
| Rated capacity | 1,000 kg (GP1000) |
| Height H | 3,000, 4,000 or 5,000 mm |
| Span L | 3,000, 4,000 or 5,000 mm |
| Clear height R | 2,000, 2,800 or 3,900 mm |
| Wheels | 4 Vulkolan swivel castors with brake, wheelbase 1,500-2,500 mm |
| Handling | pushed by hand, with the crane unloaded; rail wheels on request |
| Hoist | manual or electric chain hoist, with trolley, as preferred |
| Supply | tubular legs, IPE cross-beam, wheels, anti-rust primer and two coats of enamel |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Steel gantry crane on wheels, 1,000 kg, GP series from 500 to 5,000 kg — models and capacities
| Model | Capacity (KG) | Height H (mm) | Track L (mm) | Working area R (mm) | Wheels S (mm) |
|---|---|---|---|---|---|
| GP0500 | 500 | 3000 | 3000 | 2000 | 1500 |
| GP0500 | 500 | 4000 | 4000 | 2800 | 2000 |
| GP0500 | 500 | 5000 | 5000 | 3900 | 2500 |
| GP1000 | 1000 | 3000 | 3000 | 2000 | 1500 |
| GP1000 | 1000 | 4000 | 4000 | 2800 | 2000 |
| GP1000 | 1000 | 5000 | 5000 | 3900 | 2500 |
| GP2000 | 2000 | 3000 | 3000 | 2000 | 1500 |
| GP2000 | 2000 | 4000 | 4000 | 2800 | 2000 |
| GP2000 | 2000 | 5000 | 5000 | 3900 | 2500 |
| GP3000 | 3000 | 3000 | 3000 | 2000 | 1500 |
| GP3000 | 3000 | 4000 | 4000 | 2800 | 2000 |
| GP3000 | 3000 | 5000 | 5000 | 3900 | 2500 |
| GP4000 | 4000 | 3000 | 3000 | 2000 | 1500 |
| GP4000 | 4000 | 4000 | 4000 | 2800 | 2000 |
| GP4000 | 4000 | 5000 | 5000 | 3900 | 2500 |
| GP5000 | 5000 | 3000 | 3000 | 2000 | 1500 |
| GP5000 | 5000 | 4000 | 4000 | 2800 | 2000 |
| GP5000 | 5000 | 5000 | 5000 | 3900 | 2500 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Steel gantry crane on wheels, 1,000 kg, GP series from 500 to 5,000 kg: the most common questions
List price from 2,800 € + VAT; the price depends on the size (height and span from 3 to 5 m) and on the hoist chosen.
No: the swivel-castor version is moved unloaded. To travel with the load, the rail version with powered wheels is needed, or the 6,000 kg crane with outriggers.
A manual chain hoist with push trolley for occasional lifts, an electric chain hoist with electric trolley for frequent cycles. It is chosen on capacity and speed and quoted with the crane.
