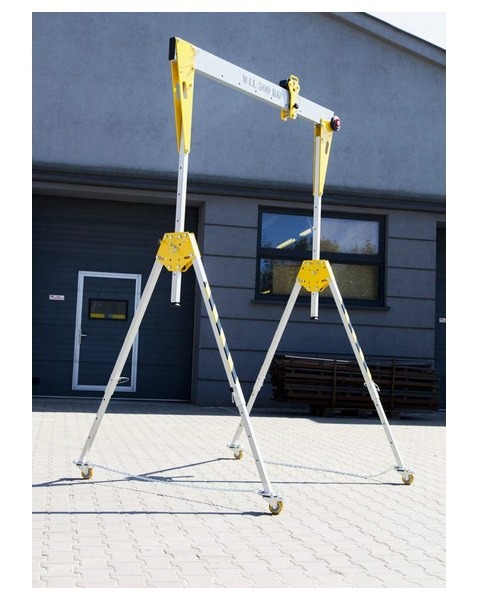

Folding aluminium gantry crane (FSB)

Folding aluminium gantry crane (FSB)
Aluminium range — New

FSB series folding aluminium gantry crane: folding tripod legs, capacity up to 500 kg, beams of 2, 3 or 4 metres and height adjustable from 1.9 to 3.1 metres. The quickest in the range to set up: open it, position it, lift.

The FSB folding series cuts set-up time to the bone: the legs fold onto the beam with nothing to dismantle, and the crane goes from transport to working position in a couple of minutes.

This is the equipment to keep in the van for frequent call-outs: emergency work, replacing pumps and motors, small repeated lifts in a different place every time. CE 2006/42 certified.

The series in figures: beams of 2, 3 or 4 metres (FSB200, FSB300, FSB400) weighing 8.25 to 16.52 kg, height adjustable from 1.9 to 3.1 m over 4 levels of 210 mm, Ø 80 mm swivel castors with brake (W3 set); made up of beam, two detachable connectors, two dismountable supports and one trolley. Capacity up to 500 kg of goods or 2 persons.

List price from 1,800 € + VAT, standards EN 13001 and EN 15011, CE marking: the cheapest and fastest gantry in the range, to keep on the van.

Rated capacityup to 500 kg of goods, or 2 people
Beam length2 · 3 · 4 m (FSB200 · FSB300 · FSB400)
Beam weightfrom 8.25 kg (2 m) to 16.52 kg (4 m)
Heightadjustable 1.9 – 3.1 m, 4 levels of 210 mm
Compositionbeam, 2 detachable connectors, 2 dismountable supports, 1 trolley
Wheelsswivel Ø 80 mm with brake (set W3)
StandardsEN 13001 · EN 15011
€ 1.800 + VAT

List price, excluding VAT. Availability and delivery times confirmed the same day, together with the configuration that suits your load.

Data sheets

Video — step-by-step assembly

How the foldable FSB series is assembled

Two operators, no plant on site: the gantry comes out of the van folded, opens, goes up, and folds back. Six and a half minutes from the package on the floor to the crane ready, and back again.

Chapters

Assembly video by the manufacturer. The on-screen captions are in English: the same steps are listed above in your language.
