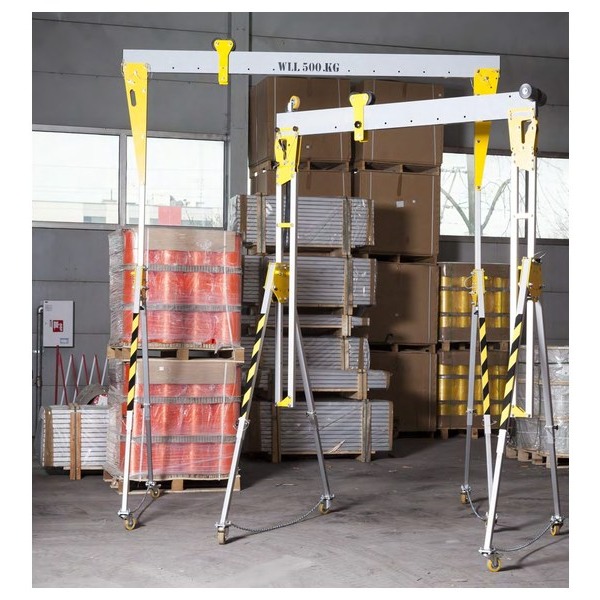

Compact aluminium gantry crane 500 kg (KSB)
Compact KSB series aluminium gantry crane: designed to work where headroom is short — basements, containers, plant rooms — without giving up capacity or the dismountable logic of the range. Also available in the KSB-LE version with an even smaller footprint.
The compact KSB series is designed to work in tight spaces: reduced upright dimensions and low height to pass through standard doorways and work in low rooms, without giving up the beam with its travelling trolley.
Perfect for boiler rooms, plant rooms and work in existing buildings where large equipment will not fit. Like the whole range it assembles by hand and is CE 2006/42 certified.
| Capacity | up to 500 kg of goods, or 2 people |
| Beam length | 2 – 6 m (KSB200 · 300 · 400 · 500 · 600) |
| Beam weight | from 8.25 kg (2 m) to 80.1 kg (6 m) |
| Working height | from 1.9 to 3.1 m |
| Trolley | outer, for goods and personnel (KSB100-350-000) |
| Format | compact, for restricted headroom |
| Versions | KSB · KSB-LE |
| Structure | aluminium, dismountable |
List price, excluding VAT. Availability and delivery times confirmed the same day, together with the configuration that suits your load.
