Adjustable H-frame lifting beam for heavy loads up to 30 tonnes

The adjustable H-frame lifting beam up to 30 tonnes is the version for heavy loads: machine skids, containers, transformers and structures to be lifted on four points with vertical sling legs. The BHR series list models reach 15,000 kg with beam from 4 to 6 metres; beyond that, up to 30 tonnes, the lifting beam is custom-built in Milan from steel beam sections. List price from 6,000 € + VAT.
The table on the data sheet lists the list models up to 15,000 kg (BHR-154, 155, 156 with beam of 4,000, 5,000 and 6,000 mm and A adjustable from 2,000 to 6,000 mm): higher capacities are special versions sized on the load, with beam and cross beam sections calculated on the weight and the required centre distances.

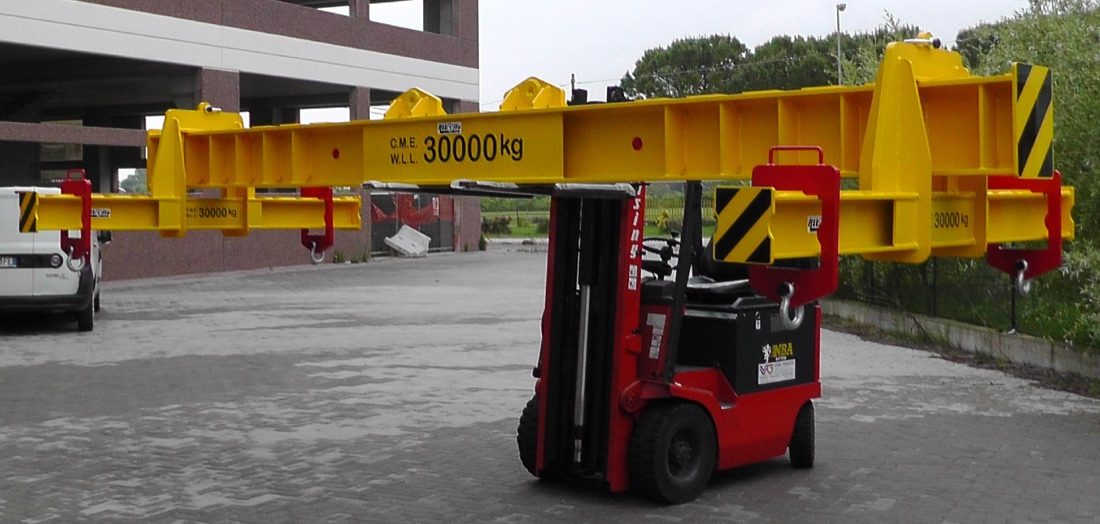

Adjustable on both axes: the cross beams slide along the main beam (A) and the attachment points along the cross beams (B), so the same lifting beam handles loads of different sizes. Bow shackles and swivel hooks as standard, steel structure with primer and two coats of enamel.
It is the lifting beam for industrial assembly and heavy haulage: with the overhead crane or the mobile crane the load rises level without bending, with vertical slings and the hook plumb over the centre of gravity.
2006/42/EC certified with capacity plate and declaration of conformity; for special versions, the weight, dimensions and position of the attachment points of the load are required.
| Rated capacity | up to 30,000 kg (list models up to 15,000 kg) |
| Main beam A | 4,000, 5,000 or 6,000 mm from the list; custom-built beyond |
| Cross beams B | from 1,100-2,000 mm to 1,500-3,000 mm from the list |
| Adjustment | on both axes, with the beam unloaded |
| Supply | bow shackles, swivel hooks, primer and two coats of enamel |
| Structure | steel (steel beam sections) |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Adjustable H-frame lifting beam for heavy loads up to 30 tonnes — models and capacities
| Model | Capacity (KG) | A max (mm) | A min (mm) | B max (mm) | B min (mm) |
|---|---|---|---|---|---|
| BHR-23 | 2000 | 3000 | 1500 | 1500 | 900 |
| BHR-24 | 2000 | 4000 | 2000 | 2000 | 1100 |
| BHR-25 | 2000 | 5000 | 2500 | 2500 | 1300 |
| BHR-26 | 2000 | 6000 | 3000 | 3000 | 1500 |
| BHR-33 | 3000 | 3000 | 1500 | 1500 | 900 |
| BHR-34 | 3000 | 4000 | 2000 | 2000 | 1100 |
| BHR-35 | 3000 | 5000 | 2500 | 2500 | 1300 |
| BHR-36 | 3000 | 6000 | 3000 | 3000 | 1500 |
| BHR-43 | 4000 | 3000 | 1500 | 1500 | 900 |
| BHR-44 | 4000 | 4000 | 2000 | 2000 | 1100 |
| BHR-45 | 4000 | 5000 | 2500 | 2500 | 1300 |
| BHR-46 | 4000 | 6000 | 3000 | 3000 | 1500 |
| BHR-53 | 5000 | 3000 | 1500 | 1500 | 900 |
| BHR-54 | 5000 | 4000 | 2000 | 2000 | 1100 |
| BHR-55 | 5000 | 5000 | 2500 | 2500 | 1300 |
| BHR-56 | 5000 | 6000 | 3000 | 3000 | 1500 |
| BHR-63 | 6000 | 3000 | 1500 | 1500 | 900 |
| BHR-64 | 6000 | 4000 | 2000 | 2000 | 1100 |
| BHR-65 | 6000 | 5000 | 2500 | 2500 | 1300 |
| BHR-66 | 6000 | 6000 | 3000 | 3000 | 1500 |
| BHR-84 | 8000 | 4000 | 2000 | 2000 | 1100 |
| BHR-85 | 8000 | 5000 | 2500 | 2500 | 1300 |
| BHR-86 | 8000 | 6000 | 3000 | 3000 | 1500 |
| BHR-104 | 10000 | 4000 | 2000 | 2000 | 1100 |
| BHR-105 | 10000 | 5000 | 2500 | 2500 | 1300 |
| BHR-106 | 10000 | 6000 | 3000 | 3000 | 1500 |
| BHR-154 | 15000 | 4000 | 2000 | 2000 | 1100 |
| BHR-155 | 15000 | 5000 | 2500 | 2500 | 1300 |
| BHR-156 | 15000 | 6000 | 3000 | 3000 | 1500 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Adjustable H-frame lifting beam for heavy loads up to 30 tonnes: the most common questions
List price from 6,000 € + VAT; versions above 15,000 kg are quoted on the load, with the dimensions of the attachment points.
15,000 kg from the list, 30 tonnes custom-built; beyond that, special lifting beams are designed with a dedicated structural verification.
A crane or overhead crane with a capacity equal to the load plus the weight of the lifting beam, which for these capacities is several hundred kilograms and is stated in the quotation.
