Adjustable dismountable H-frame lifting beam up to 10 tonnes, low headroom

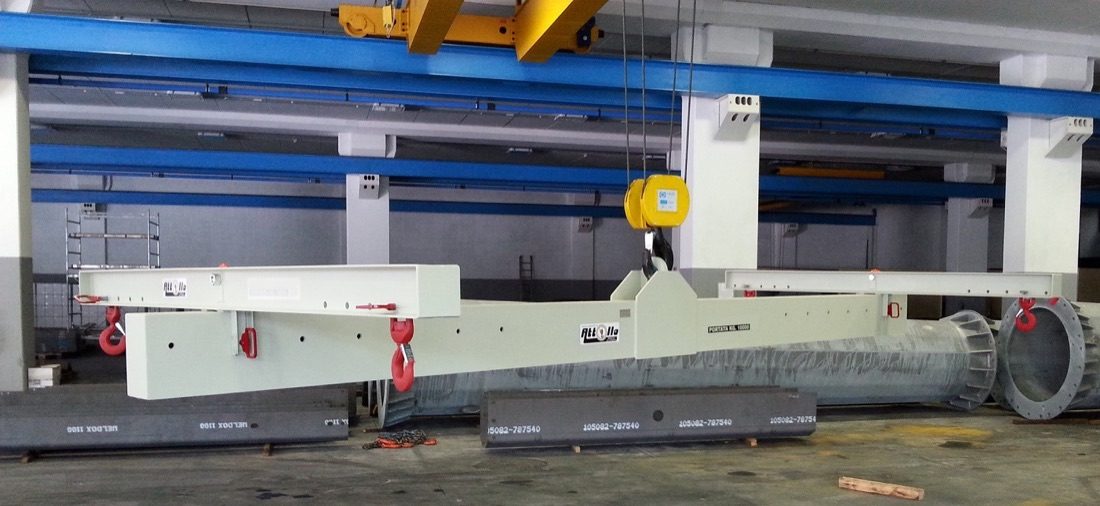

The adjustable dismountable H-frame lifting beam up to 10 tonnes has the cross beams mounted above the main beam: headroom is reduced and the lifting beam also works with cranes that have little hook height available. It is dismantled into three elements for transport by van and assembly on site. BHR series from 2,000 to 10,000 kg, list price from 4,500 € + VAT.
The settings are those of the BHR series in the table: A along the main beam from 1,500 to 6,000 mm and B on the cross beams from 900 to 3,000 mm depending on the model, with bow shackles and swivel hooks as standard. The cross beams above the main beam move the attachment points higher and gain usable height.
Dismantled, the lifting beam travels by van: main beam and two cross beams, with the connecting pins; assembly is done on site without special tools and each element is marked.
It is the lifting beam for installers and mobile cranes: glazing, panels, formwork, skids to be assembled on site, where the lifting beam does not stay fixed under an overhead crane but follows the crew.
Steel structure with primer and two coats of enamel, 2006/42/EC certified with capacity plate and declaration of conformity; for sites with many manual lifts, the 1,000 kg aluminium version.
| Series | BHR, dismountable version |
| Rated capacity | from 2,000 to 10,000 kg |
| Main beam A | 3,000-6,000 mm, adjustable from half to full beam length |
| Cross beams B | from 900 to 3,000 mm depending on model, mounted above the main beam |
| Transport | dismountable into beam and two cross beams |
| Supply | bow shackles, swivel hooks, primer and two coats of enamel |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Adjustable dismountable H-frame lifting beam up to 10 tonnes, low headroom — models and capacities
| Model | Capacity (KG) | A max (mm) | A min (mm) | B max (mm) | B min (mm) |
|---|---|---|---|---|---|
| BHR-23 | 2000 | 3000 | 1500 | 1500 | 900 |
| BHR-24 | 2000 | 4000 | 2000 | 2000 | 1100 |
| BHR-25 | 2000 | 5000 | 2500 | 2500 | 1300 |
| BHR-26 | 2000 | 6000 | 3000 | 3000 | 1500 |
| BHR-33 | 3000 | 3000 | 1500 | 1500 | 900 |
| BHR-34 | 3000 | 4000 | 2000 | 2000 | 1100 |
| BHR-35 | 3000 | 5000 | 2500 | 2500 | 1300 |
| BHR-36 | 3000 | 6000 | 3000 | 3000 | 1500 |
| BHR-43 | 4000 | 3000 | 1500 | 1500 | 900 |
| BHR-44 | 4000 | 4000 | 2000 | 2000 | 1100 |
| BHR-45 | 4000 | 5000 | 2500 | 2500 | 1300 |
| BHR-46 | 4000 | 6000 | 3000 | 3000 | 1500 |
| BHR-53 | 5000 | 3000 | 1500 | 1500 | 900 |
| BHR-54 | 5000 | 4000 | 2000 | 2000 | 1100 |
| BHR-55 | 5000 | 5000 | 2500 | 2500 | 1300 |
| BHR-56 | 5000 | 6000 | 3000 | 3000 | 1500 |
| BHR-63 | 6000 | 3000 | 1500 | 1500 | 900 |
| BHR-64 | 6000 | 4000 | 2000 | 2000 | 1100 |
| BHR-65 | 6000 | 5000 | 2500 | 2500 | 1300 |
| BHR-66 | 6000 | 6000 | 3000 | 3000 | 1500 |
| BHR-84 | 8000 | 4000 | 2000 | 2000 | 1100 |
| BHR-85 | 8000 | 5000 | 2500 | 2500 | 1300 |
| BHR-86 | 8000 | 6000 | 3000 | 3000 | 1500 |
| BHR-104 | 10000 | 4000 | 2000 | 2000 | 1100 |
| BHR-105 | 10000 | 5000 | 2500 | 2500 | 1300 |
| BHR-106 | 10000 | 6000 | 3000 | 3000 | 1500 |
| BHR-154 | 15000 | 4000 | 2000 | 2000 | 1100 |
| BHR-155 | 15000 | 5000 | 2500 | 2500 | 1300 |
| BHR-156 | 15000 | 6000 | 3000 | 3000 | 1500 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
