Sheet pack lifting clamps, SPL series from 2,500 to 10,000 kg

The sheet pack lifting clamps take the pack from both sides: they slide underneath, are hooked to the crane with chains, master links or shackles, and the safety connecting chains prevent them from opening under load. SPL series made by Attollo in four models from 2,500 to 10,000 kg per pair, with handling knobs; STT round bar brackets from 0.7 to 10 tonnes per bracket. List price from 1,800 € + VAT.
The table on the data sheet lists the SPL models: pack height H from 200 to 600 mm, depth C 180 mm, width B from 1,000 to 1,250 mm, weight of the pair from 15 to 51 kg. The STT round bar brackets, from 0.7 to 10 tonnes per single bracket, have A from 100 to 500 mm and bar diameter from 20 to 80 mm.

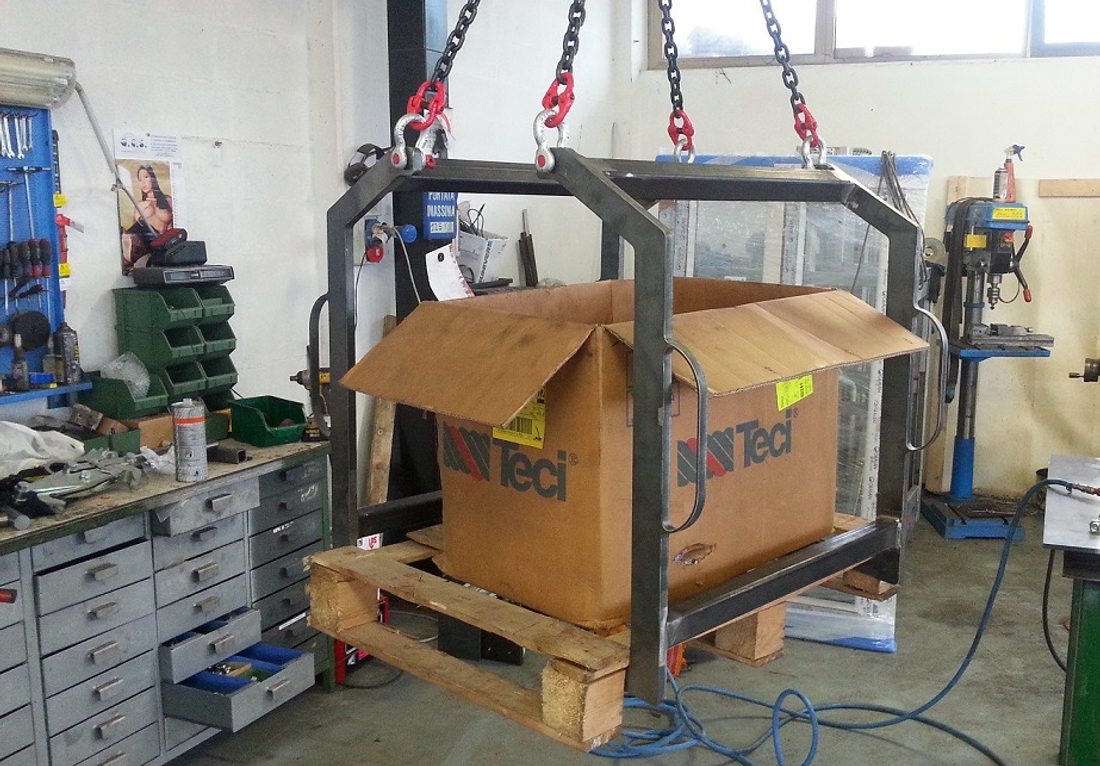

The two clamps are rigged as a two-leg sling on the crane hook; the knobs are used to guide them during handling and the connecting chains keep the pair closed under the pack. Steel structure with primer and two coats of enamel.
These are the clamps of service centres, steel fabricators and sheet metal warehouses: the pack is picked up by overhead crane without slipping slings or forks that mark the sheets. Built for the sheets to be lifted, by size and pack height.
Certified 2006/42/EC with capacity plate and declaration of conformity; for oversize packs, clamps are built to drawing.
| Series | SPL, 4 models; STT round bar, 6 models |
| Capacity per pair | from 2,500 to 10,000 kg (SPL); from 700 to 10,000 kg per bracket (STT) |
| Pack height H | from 200 to 600 mm (SPL); A from 100 to 500 mm (STT) |
| Sizes | C 180 mm · B from 1,000 to 1,250 mm (SPL) |
| Weight per pair | from 15 to 51 kg (SPL) |
| Supplied with | handling knobs, safety connecting chains |
| Mounting | chains, master links or shackles |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Sheet pack lifting clamps, SPL series from 2,500 to 10,000 kg — models and capacities
| Model | Capacity per pair (kg) | H (mm) | C (mm) | B (mm) | Weight per pair (KG) |
|---|---|---|---|---|---|
| SPL-2 | 2500 | 200 | 180 | 1000 | 15 |
| SPL-4 | 4000 | 400 | 180 | 1000 | 21 |
| SPL-6 | 6300 | 500 | 180 | 1000 | 27 |
| SPL-10 | 10000 | 600 | 180 | 1250 | 51 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Sheet pack lifting clamps, SPL series from 2,500 to 10,000 kg: the most common questions
List price from 1,800 € + VAT per pair; the model is chosen on the height and weight of the packs and confirmed in the quotation.
For the SPL series it refers to the pair; for the STT round bar brackets to the single bracket, so with two brackets it doubles.
With chains, master links or shackles, as a two-leg sling with a limited angle; the safety connecting chains always remain connected.
