Vacuum lifters for marble, stone and porcelain
Vacuum lifters for marble, granite, stone and porcelain slabs: continuous vacuum with 6/8 bar pneumatic, 220/380 V electric or battery supply, with single or multiple pads and manual or pneumatic tilting from 0 to 90°. The seals are chosen to suit the finish — polished, sawn, flamed or bush-hammered — and every machine is CE certified with an audible and visual alarm.
Pneumatic vacuum lifters for marble and granite
The single-pad unit with compressed-air Venturi ejector, the 2-pad unit on an adjustable bar with guide handles, and the 250 kg vacuum lifter with two-cylinder pneumatic tilting for waterjet and CNC cutting centres.
Vacuum lifters for porcelain stoneware and precast elements
The lightweight aluminium frame with multiple suction pads for 160×320 porcelain stoneware slabs, and the pneumatic vacuum lifter with tilting for precast concrete slabs and panels.
Vacuum lifters for marble, stone and porcelain: models, capacities and dimensions
| Model | Rated capacity | Pick-ups | Movements | Power supply |
|---|---|---|---|---|
| Pneumatic marble vacuum lifter, 1 pad | — | 1 in polyethylene | — | compressed air 6/8 bar (Venturi) |
| Marble vacuum lifter with 2 pads and control bar | — | 2 rectangular on an adjustable bar | — | pneumatic (electric or battery on request) |

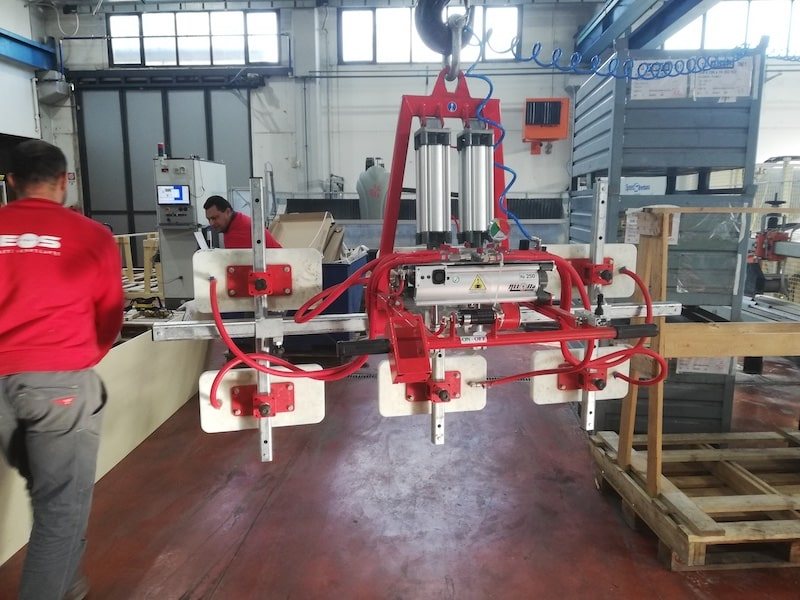

| 250 kg marble vacuum lifter with pneumatic tilting | 250 kg | 6 polyethylene on adjustable bars | pneumatic 0–90°, 2 cylinders | — |
| Vacuum lifter for large-format porcelain slabs | — | multiple cups on adjustable cross-arms | — | aluminium |
| Pneumatic vacuum lifter for precast elements | — | — | pneumatic, twin cylinder | compressed air, no electrical parts |
Stone vacuum lifters at list price
| Vacuum lifter | Pick-ups | Tilting | Power supply | Used for | List price |
|---|---|---|---|---|---|
| Single pad | 1 polyethylene pad | — | compressed air 6/8 bar (Venturi) | marble and granite slabs, polyethylene | €1,400 |
| 2 pads on bar | 2 adjustable rectangular pads | — | pneumatic (electric or battery on request) | long slabs, steps | €2,500 |
| Pneumatic tilting 250 kg | 6 polyethylene pads on bars | pneumatic 0-90°, 2 cylinders | compressed air | waterjet and CNC loading/unloading | €2,900 |
| Porcelain stoneware slabs | multiple suction pads on adjustable arms | — | compact vacuum unit | stoneware 160×320, thin slabs | on request |
| Precast elements | made to measure | pneumatic, twin cylinder | compressed air, no electrical parts | concrete slabs and panels | on request |
List prices + VAT. The seals are chosen according to the finish: polished, rough, flamed or bush-hammered.
How to choose vacuum lifters for marble, stone and porcelain
The surface finish
Polished or honed: standard seal; rough, flamed or bush-hammered: soft seal for uneven surfaces. Tell us the finish and we will size the grip.
Compressed air, mains power or battery
In the workshop, 6/8 bar compressed air with a Venturi ejector is the simplest and most robust solution; electric or battery-powered when the vacuum lifter works far from the compressor.
Tilting the slab
Loading and unloading cutting centres requires pneumatic 0-90° tilting: the slab rotates under control, without swinging, even when already polished.
Thin slabs

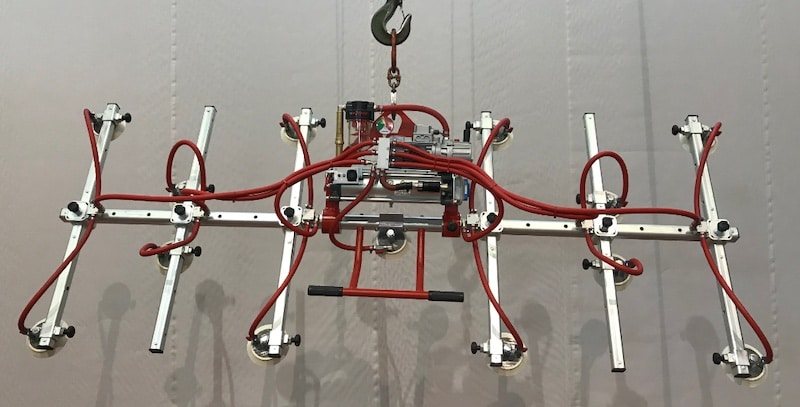

Large-format stoneware only a few millimetres thick breaks if held at two points: the aluminium frame with multiple suction pads spreads the grip over the whole slab.
Vacuum lifters for marble, stone and porcelain: the most common questions
At list price, the pneumatic single-pad unit starts from €1,400 + VAT, the 2-pad unit from €2,500 and the vacuum lifter with pneumatic tilting from €2,900; stoneware and precast units are quoted on the format.
With seals for rough surfaces, yes, at the reduced capacity shown on the identification plate; on deep bush-hammered finishes it must be checked case by case.
For the pneumatic versions, yes, 6/8 bar; alternatively, electric or battery versions are available.
Yes: Machinery Directive 2006/42/EC, CE marking, capacity plate, vacuum indicator and audible and visual alarm.
