Vacuum lifters for sandwich panels and wood
Vacuum lifters for timber, MDF, chipboard and insulated sandwich panels: frames and pads in high-yield steel, fabric-reinforced rubber and neoprene foam seals for irregular and breathable surfaces, in fixed, tilting and board-handling versions. For roof laying, machines with a compliant dual vacuum circuit and hydraulic tilting, available for hire as well.
Vacuum lifters for sandwich and insulated panels

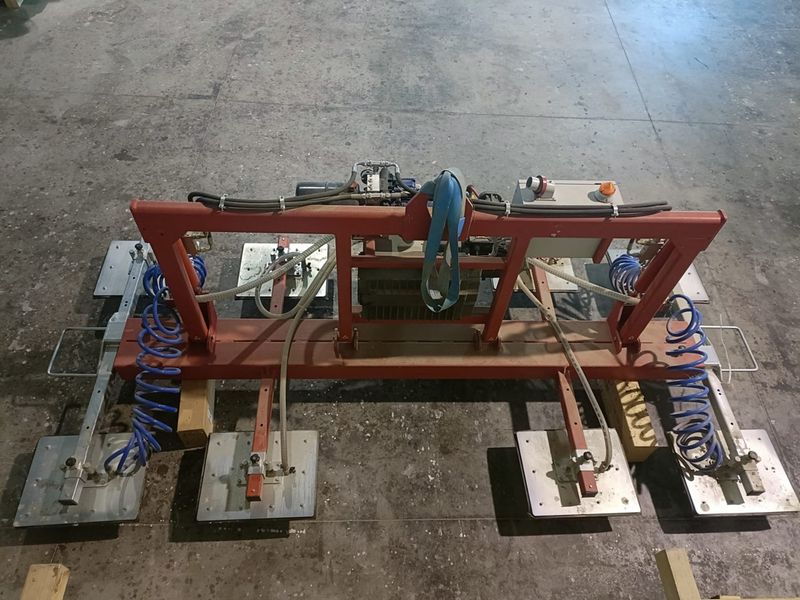

Rectangular pads on adjustable bars and seals that do not mark the panel's thin sheet: from the 200 kg four-pad lifter to the self-contained battery version with radio control, up to the 360 kg lifter that turns ribbed panels delivered stacked head-to-tail through 180° and lays them straight after.
Site vacuum lifters for laying roofs
Hung from the mobile crane or site crane, with standard-compliant double vacuum circuit, pre-vacuum reservoir and self-contained alarm: the telescopic battery lifter takes the panel from the stack to the roof in a single cycle, and the 400 kg vacuum lifting beam with 8 pads keeps panels of 8 metres and more flat.
Vacuum lifters for wood, MDF and chipboard
Seals for breathable surfaces and fixed, tilting or pneumatic-tilting frames: PN series for melamine-faced panels from 125 to 500 kg, PNT for chipboard and MDF from 125 to 200 kg, 90 kg door lifters and TV series for boards and beams from 250 to 1,000 kg with tubes up to 12 metres. Pneumatic, electric or manual pump.
Vacuum lifters for sandwich panels and wood: models, capacities and dimensions
| Model | Rated capacity | Pads | Power supply |
|---|---|---|---|
| 200 kg vacuum lifter for sandwich panels | 200 kg | 4 rectangular on adjustable bars | — |

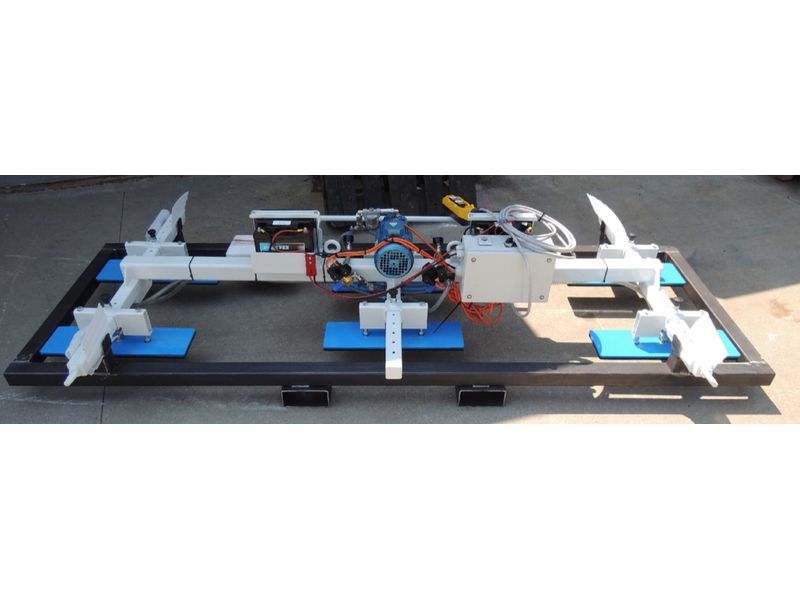

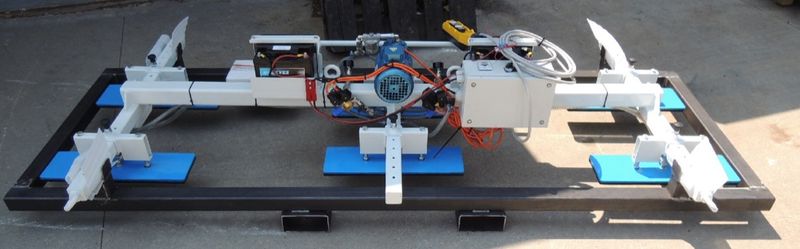

| Self-contained battery vacuum lifter for insulated sandwich panels | — | rectangular on adjustable bars, on the rib pitch | on-board battery, self-contained vacuum unit |
| Vacuum lifter for sandwich panels with 180° tilting | max. 360 kg | — | hydraulic, 180°, radio operated |
| Vacuum lifter for laying roofing panels on site | — | telescopic, galvanized pads | hydraulic |
| Vacuum lifting beam for long insulated panels | — | lifting beam with multiple pads in line | from a mobile or site crane |
| Pneumatic vacuum lifter for timber panels | — | 4 on adjustable arms | pneumatic 0–90° |
| Vacuum lifter for wood with pneumatic tilting, PN series from 125 to 500 kg | 125, 250 or 500 kg | 1 or 2, from 50×20 to 60×30 cm | pneumatic 0-90° |
| Manual vacuum lifter for timber, MDF and chipboard | — | 4 round | ON-OFF bar with gauge |
The catalogue wood series: capacities and pads
| Series | Use | Capacities | Pads | Structure | Air consumption |
|---|---|---|---|---|---|
| PN1F / PN2F | melamine-faced panels | 125 – 500 kg | 1 or 2, from 50×20 to 60×30 cm | fixed horizontal | 150 l/min |
| PN1R / PN2R | melamine-faced panels | 125 – 500 kg | 1 or 2, from 50×20 to 60×30 cm | tilting | 150 l/min |
| PN2RP | melamine-faced panels | 250 – 500 kg | 2, 50×20 or 50×30 cm | pneumatic tilting | 150 l/min |
| PNT1F / PNT2F | chipboard and MDF | 125 – 200 kg | 1 or 2, 60×20 or 50×30 cm | fixed horizontal | 270 – 540 l/min |
| PNT1R / PNT2R / PNT2RP | chipboard and MDF | 125 – 200 kg | 1 or 2, 60×20 or 50×30 cm | tilting, also pneumatic | 270 – 540 l/min |
| PNT4F / PNT4R / PNT4RP | medium-thickness panels | 200 kg | 4 × Ø 250 mm | fixed, tilting or pneumatic | — |
| PNT6F / PNT6R / PNT6RP | large thin panels | 200 kg | 6 × Ø 250 mm | fixed, tilting or pneumatic | — |
| PNT4F / 4R / 4RP doors | doors | 90 kg | 4 × 40×9 cm | fixed, tilting or pneumatic | — |
| TV1 / TV2 | boards | 250 – 700 kg | 1 or 2, from 70×16 to 100×16 cm | fixed | 270 l/min |
| TV3 / TV4 / TV6 | boards and beams | 500 – 1.000 kg | 3, 4 or 6, 70×12 cm | 4 or 6 m tube, beams up to 8 or 12 m | 270 l/min |
Data from the Attollo catalogue, pages 52-53. Vacuum lifters for sandwich panels are sized on the panel: capacity, length and rib pitch.
How to choose vacuum lifters for sandwich panels and wood
Sandwich panel: weight, length and laying
An insulated panel weighs little but is long and bends: the lifter must be chosen on length before weight. Up to 4-5 metres the four adjustable pads are enough; beyond that, the vacuum lifting beam spreads the grips over the whole panel and keeps it flat up to the roof. If panels arrive stacked upside down, 180° turnover is needed.
On site: battery and double circuit
On the roof there is neither power nor compressed air: site lifters work on battery, with pre-vacuum reservoir, audible and visual alarm and independent double vacuum circuit, as the standard requires for lifting with people under the load. Quick-change batteries with external charger avoid stoppages.
Wood, MDF and chipboard: the seal matters
Breathable surfaces lose vacuum: for MDF, chipboard and OSB dedicated seals and a pump unit that compensates for the loss are needed, which is why the PNT series use more air than the PN for melamine-faced panels. For large, thin panels you move to 6 pads, for doors and leaves to the narrow 40×9 cm pads.
Fixed, tilting or pneumatic tilting
The fixed frame picks and sets down horizontally; the tilting one takes the panel from horizontal to vertical by hand, for the panel saw or the vertical store; the pneumatic one does it with a cylinder, effortlessly, for repeated cycles. Beams and long boards use the tubes of the TV series, from 4 to 12 metres.
Power supply
In the joinery 6/8 bar compressed air is almost always available and the PN, PNT and TV series use it with consumptions from 150 to 540 l/min; alternatively the 220/380 V electric pump unit or the battery. Manual pump lifters serve for light pieces and smooth surfaces.
Vacuum lifters for sandwich panels and wood: the most common questions
List price for the 200 kg four-pad lifter is €6,000 + VAT, the site lifter for laying €8,000, the 400 kg vacuum lifting beam €8,200 and the self-contained battery version €8,000. The 180° turnover lifter and special configurations are on quotation.
From 200 kg with four pads up to 400 kg with the 8-pad lifting beam; the 180° turnover lifter carries 360 kg. The real limit is panel length: the grips are spread out so as not to dent the sheet and to keep the panel flat.
Yes, the site lifter for laying roofs is also available for hire: ask for availability and duration and we reply the same day.
With the vacuum lifter with radio-controlled 180° hydraulic turnover: four pads on two independent vacuum circuits grip the ribbed panel, turn it over and take it to laying, with interchangeable batteries so as not to stop.
The PNT series, with seals for breathable surfaces and a larger pump unit: 1 or 2 pads up to 200 kg, 4 pads for medium-thickness panels, 6 pads for large thin panels. Fixed, tilting or with pneumatic tilting.
Yes: designed to Machinery Directive 2006/42/EC and standard EN 13155, delivered with CE marking, capacity plate, declaration of conformity and operating manual.
