Manual vacuum lifter for timber, MDF and chipboard

Manual vacuum lifter for timber, MDF and chipboard
Vacuum range — New

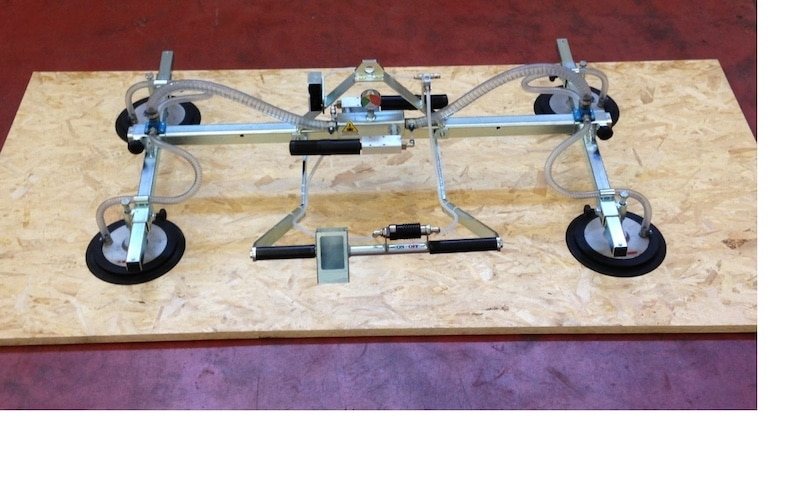

Four-cup manual vacuum lifter for timber, MDF, chipboard and polyethylene panels: galvanized frame with ON-OFF control bar, monitoring gauge and clear hoses. Its handy size makes it the bench tool for moving panels and worktops without marking them.

The neoprene foam seals compensate for the porosity of rough timber and the texture of OSB: the grip is verified on the gauge before lifting.

Hooks onto jib cranes and light hoists; CE plate on board.

Manual means no on-board supply for continuous vacuum: the ON-OFF bar controls the grip, the vacuum gauge checks it and the transparent hoses show it. On melamine-faced panels and closed surfaces the hold is long; on MDF, chipboard and OSB the foam neoprene seals compensate for porosity, but the grip must be checked before every lift.

With four round grips and a galvanised frame it is the bench tool for moving panels and worktops without marking them, list price €3,000 + VAT; for continuous cycles and large panels the pneumatic PN and PNT series, up to 500 kg, are in the same collection.

Pick-ups4 round
ControlON-OFF bar with gauge
Materialstimber, MDF, chipboard, OSB
CertificationCE with plate
€ 3.000 + VAT

List price, excluding VAT. Availability and delivery times confirmed the same day, together with the configuration that suits your material.
