Vacuum lifters for sheet metal

Vacuum lifters for steel, aluminium, stainless steel and copper sheet, including laser-cut parts: single or multiple pads adjustable lengthways and crossways, with standard capacities from 250 to 2,500 kg and telescopic and hydraulic versions up to 8,000 kg and beyond. Supply by compressed air at 6/8 bar, 220/380 V electric or battery, all CE certified.

Vacuum lifters for sheet metal

Fixed-frame vacuum lifters for sheet metal, 250 to 1,500 kg

The horizontal frame with 4, 6 or 8 pads of Ø 250 or 300 mm is the workshop and cutting-centre lifter: VLA series on compressed air (130 l/min) and GLA series with electric pump unit (380 l/min), capacities from 250 to 1,500 kg. The pads adjust on the arms to follow the sheet format; below 500 kg the 700×300 single pad or the two round pads are enough.

Vacuum lifters for sheet metal

Beam and telescopic vacuum lifters for long sheets, up to 8,000 kg

For heavy sheets, sheet-metal packs and large-format plates the grip moves to a beam with 8, 16 or 20 pads: fixed at 2,500 kg for continuous service on an overhead crane, telescopic at 8,000 kg with double pump unit, or with hydraulic extensions at 7,500 kg operated from the panel. To specification up to 15,000 kg.

Vacuum lifters for sheet metal

Fork-mounted and self-priming vacuum lifters for sheet metal

Where there is no crane: the fork-mounted battery lifter turns the forklift into a sheet lifter, with vacuum grip and radio control. And where there is not even power, the VMS self-priming lifters from 100 to 2,400 kg generate the vacuum with the hook movement alone: you find them in the self-priming vacuum lifters collection.

All models

Vacuum lifters for sheet metal: models, capacities and dimensions

ModelRated capacityPadsPower supply
Sheet metal vacuum lifter, 1 pad 700×300 mm500 kg700×300 mm220/380 V electric
Sheet metal vacuum lifter, 2 pads350 kg2 round220/380 V electric
1,500 kg sheet metal vacuum lifter with 8 pads1,500 kg8 adjustable on a cross frame220/380 V electric

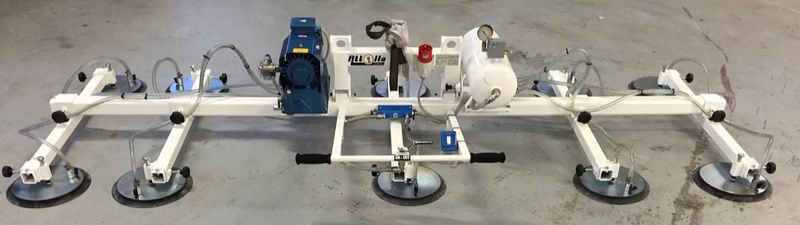

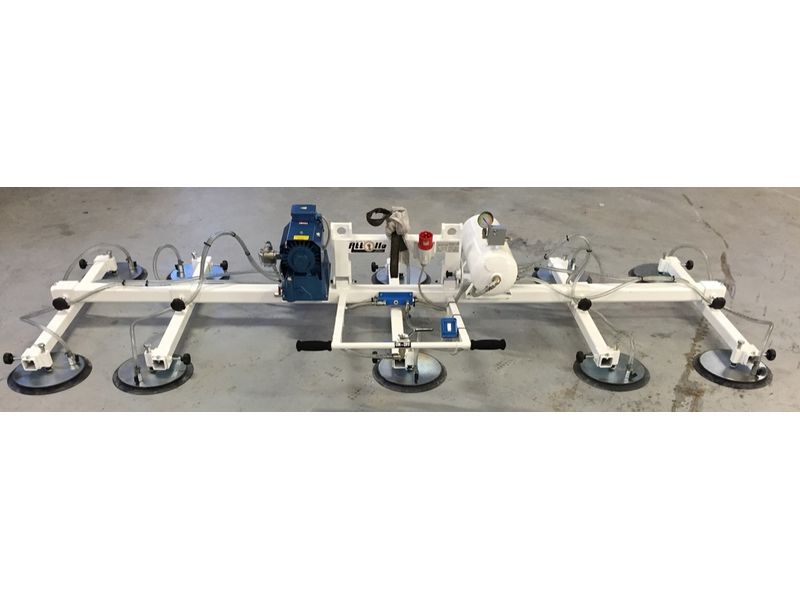

Vacuum lifter for sheet metal with 10 pads, pneumatic VLA series from 250 to 1,500 kg250 to 1,500 kg4, 6, 8 or 10 of Ø 250 or 300 mm, adjustable6/8 bar compressed air, consumption 130 l/min

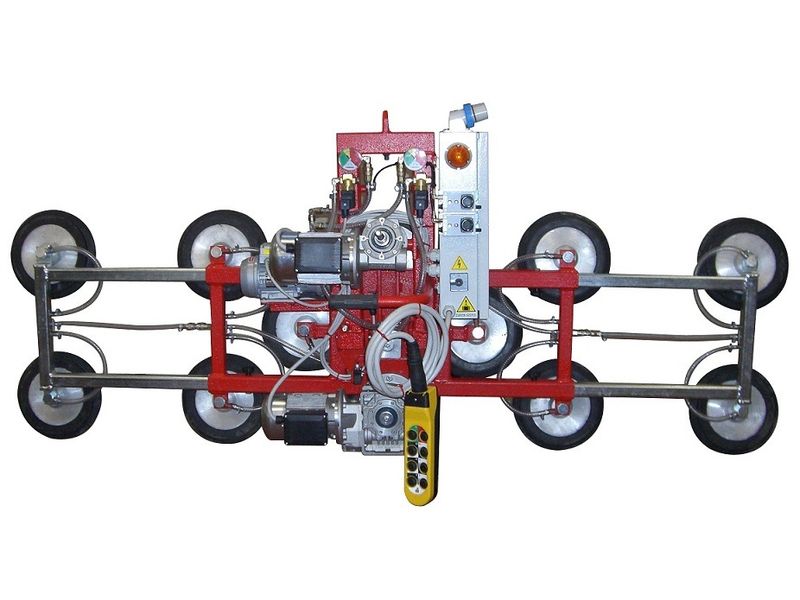

Dismountable 12-pad vacuum lifter for large-format sheets—12, adjustable on the armselectric, pneumatic or battery, according to the system
Electric vacuum lifter for sheet metal, 3,500 kg, GLA series up to 1,500 kg250 to 1,500 kg4, 6 or 8 of Ø 250 or 300 mm, adjustableelectric 220/380 V, consumption 380 l/min
2,500 kg sheet metal vacuum lifter2,500 kg8 on a cross-beam—
8,000 kg telescopic sheet metal vacuum lifter8,000 kgtelescopic, ~20 cupstwin pump unit

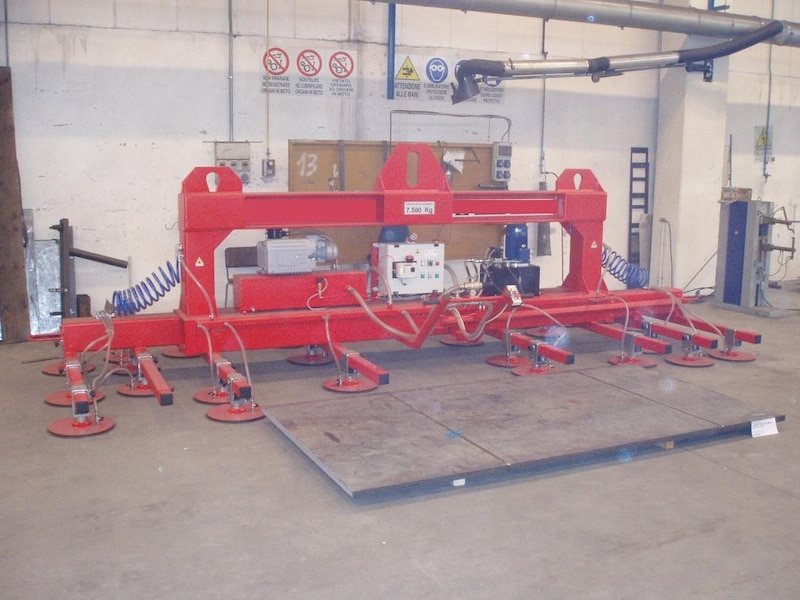

7,500 kg telescopic hydraulic vacuum lifter7,500 kg16vacuum pump, panel, hydraulic power pack
Fork-mounted battery vacuum lifter for sheet metal, for forklift trucks——on-board battery, self-contained vacuum unit
All series

The catalogue fixed-frame series: capacities, pads and air consumption

ModelRated capacityPadsPad ØPower supplyAir consumption
VLA 4F250 / 500 kg4250 / 300 mmcompressed air130 l/min
VLA 6F500 / 1.000 kg6250 / 300 mmcompressed air130 l/min
VLA 8F1.000 / 1.500 kg8250 / 300 mmcompressed air130 l/min
GLA 4F250 / 500 kg4250 / 300 mmelectric pump unit380 l/min
GLA 6F500 / 1.000 kg6250 / 300 mmelectric pump unit380 l/min
GLA 8F1.000 / 1.500 kg8250 / 300 mmelectric pump unit380 l/min

Data from the Attollo catalogue, page 50: capacity depends on pad diameter (250 or 300 mm). Footprints from 600×1,000 mm (250 kg 4F) to 635×1,695 mm (1,000 kg 8F), height 620 mm.

How to choose

How to choose vacuum lifters for sheet metal

Capacity, format and number of pads

Capacity must be calculated on the heaviest sheet, but the number of pads depends on the format: a long, thin sheet deflects and must be supported at several points. That is why the same capacity exists with 4, 6 or 8 pads, and sheets over 3 metres move to the beam. For laser cutting with many holes, small adjustable pads positioned on solid areas are needed.

Compressed air, electric or battery

With 6/8 bar compressed air in the department the pneumatic series is the simplest and lightest; the 220/380 V electric pump unit makes the lifter independent of the air line; the battery serves on site and on the forklift. Self-priming lifters have no power supply at all: the vacuum is created by the hook travel.

Long sheets and heavy packs

Beyond 2,000-2,500 kg or 4-6 metres of length the lifter becomes a beam: fixed with 8 pads for continuous service, telescopic when formats change often, with hydraulic extensions when adjustment has to be made from the panel without getting off the overhead crane. The telescopic versions reach 8,000 kg in the catalogue and 15,000 kg to specification.

Safety of the grip

Every lifter has the colour-scale vacuum gauge and the reservoir that maintains the vacuum even if the supply fails; the versions for continuous service and for site add the audible and visual alarm and the double vacuum circuit where the standard requires it. The grip is checked before the load leaves the ground.

Sheet surface

Oiled, painted, perforated or ribbed sheets are lifted with dedicated seals and pads: tell us material, minimum thickness, maximum format and surface condition and we configure the lifter for your case. All are CE certified with capacity plate.

Frequently asked questions

Vacuum lifters for sheet metal: the most common questions

List prices for electric fixed-frame lifters start at €4,600 + VAT (2 and 8 pads), the 2,500 kg beam is €6,500, the 7,500 kg hydraulic telescopic €15,000 and the 8,000 kg telescopic €18,000; the fork-mounted battery lifter for forklifts is listed at €5,500. Single pad and versions to specification on quotation.
