Vacuum lifters for glass
Vacuum lifters for handling glass, plate glass and insulating glazing: rotation from 0 to 360° and tilting from 0 to 90°, manual or powered, with compressed air, 220/380 V electric or 24 V battery supply. Frames adjustable on two axes for panes and window units of different sizes, all CE certified with a plate.

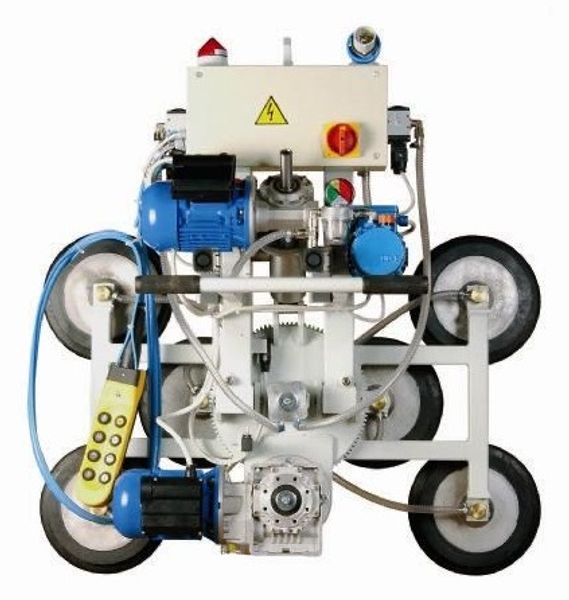

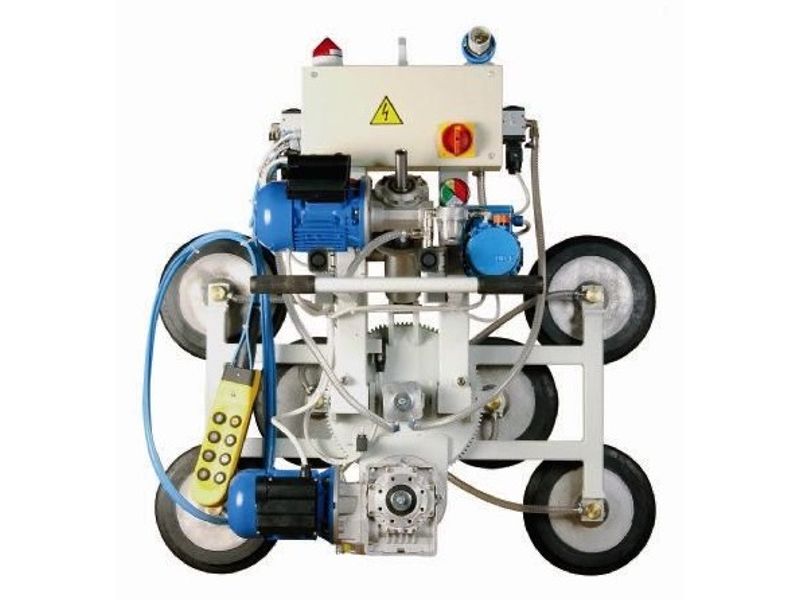

6-pad glass vacuum lifters, with and without rotation
The 600 kg machine with rubber support wheels, warning beacon and control pendant; the 800 kg version with 0-360° electric rotation by gear motor; the 800+400 kg with removable extensions and twin gear motors. 220/380 V power supply or 24 V battery.
Vacuum lifters with tilting and with stand

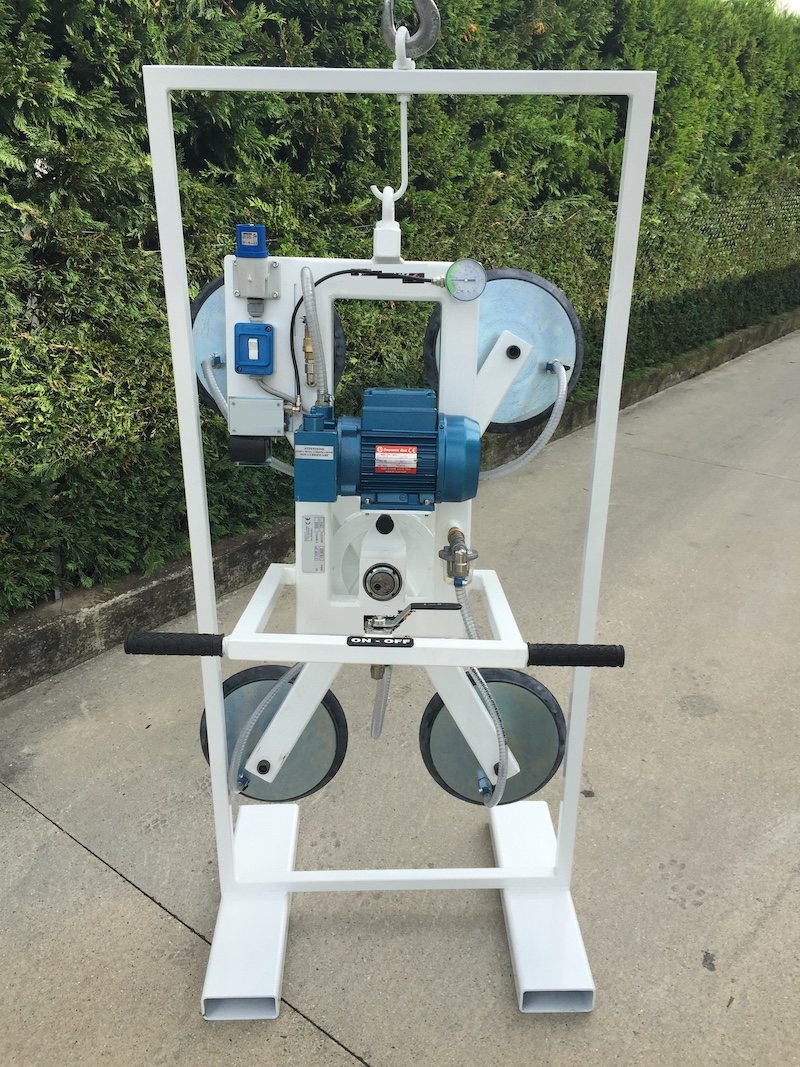

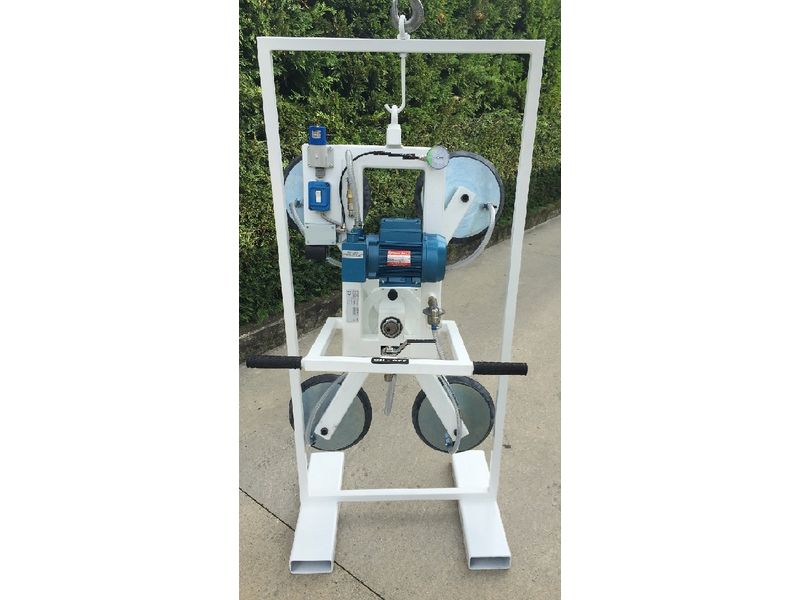

Balanced manual 0-90° tilting on 5 suction pads to pick up the sheet from the bench and bring it upright, and the electric vacuum lifter with stand for storage and installation.
Vacuum lifters for glass: models, capacities and dimensions
| Model | Rated capacity | Vacuum lifters | Movements | Power supply |
|---|---|---|---|---|
| 600 kg vacuum lifter for glass and plate glass | 600 kg | 6 with support wheels | — | beacon + vacuum gauge |
| 800 kg glass vacuum lifter with powered rotation | 800 kg | 6 on an adjustable frame | electric 0–360° | 220/380 V or 24 V battery |
| Glass vacuum lifter with extensions, 800+400 kg | 800 kg (8 cups) / 400 kg (4 cups) | — | removable side extensions | rubber wheels on the cups |
| 6-pad glass vacuum lifter | to the sheets, on the plate | — | — | 220/380 V or 24 V battery |
| Glass vacuum lifter with manual tilting | — | 5 on adjustable bars | manual 0–90° | jib crane, light overhead crane |
| Electric glass vacuum lifter with stand | to the sheets, on the plate | — | — | — |
Glass vacuum lifters at list price
| Vacuum lifter | Rated capacity | Pick-ups | Movements | Power supply | List price |
|---|---|---|---|---|---|
| Glass and glass panes 600 kg | 600 kg | 6 with support wheels | — | electric, warning beacon and vacuum gauge | €4,000 |
| Electric rotation 800 kg | 800 kg | 6 on an adjustable frame | 0-360° electric rotation | 220/380 V or 24 V battery | €5,500 |
| With extensions 800+400 kg | 800 / 400 kg | 8 / 4 with rubber wheels | twin geared motor | electric | €6,500 |
| Manual tilting | made to measure | 5 on adjustable bars | manual 0-90° tilting | on-board vacuum motor | on request |
| 6 pads (catalogue) | made to measure | 6 | — | electric | €3,500 |
| Electric with stand (catalogue) | made to measure | made to measure | — | electric | €2,800 |
List prices + VAT; capacity and number of pads are defined on the customer's sheets. All CE certified with plate and warning alarm.
How to choose vacuum lifters for glass
The sheet format
The two-axis adjustable frame positions the suction pads on the sheet: 4 pads are enough for small formats, large insulating glass units need 6 or 8. The capacity is that of the heaviest sheet.
Rotation and tilting
Installing windows and glazing requires rotating the sheet: 0-360° electric rotation by gear motor and, on request, 0-90° tilting; to pick up from a horizontal bench, balanced manual tilting is enough.
Power supply
Electric 220/380 V in the glass shop; 24 V battery on site and on scaffolding, where there is no power socket.
The support wheels
The rubber wheels on the suction pads guide the vertical sheet onto the stand and into the shop window without metal-to-glass contact: standard on the 600 and 800 kg machines.
Vacuum lifters for glass: the most common questions
At list price, the electric vacuum lifter with stand starts from €2,800 + VAT, the 6-pad model from €3,500, the 600 kg from €4,000, the electric rotation model from €5,500 and the 800+400 kg from €6,500.
On smooth surfaces, yes; for satin, patterned or film-coated glass, the hold of the seals must be checked: tell us the finish.
The audible and visual alarm signals the drop in vacuum; the safety reserves are defined for the machine in the quotation.
Yes: Machinery Directive 2006/42/EC, CE marking, capacity plate, vacuum gauge and warning alarm.
