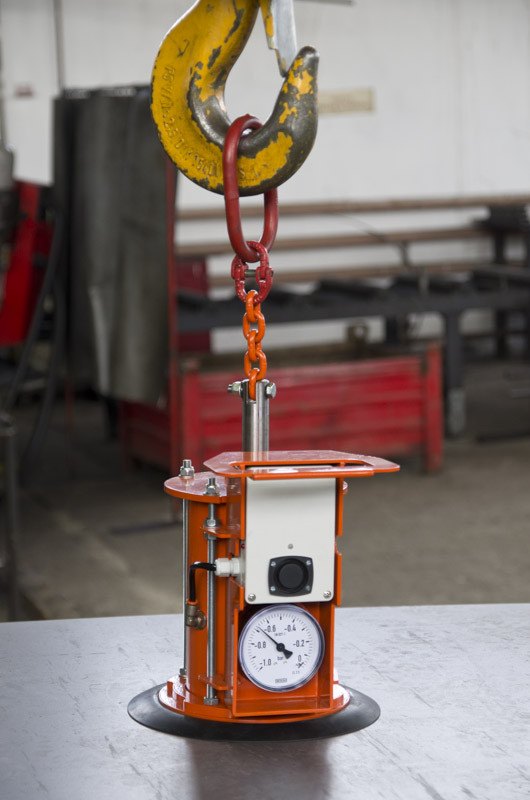

VMS 100-1 vacuum lifter

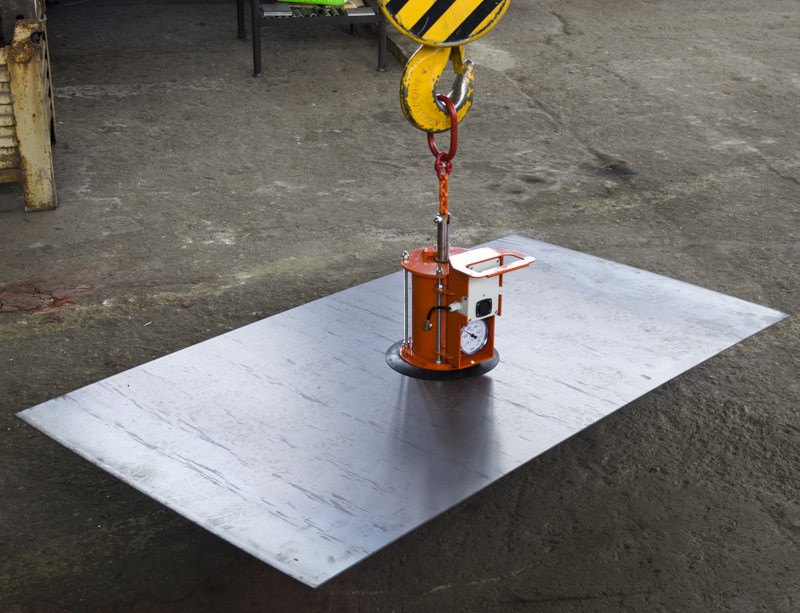

Self-priming vacuum lifter VMS 100-1 of 100 kg with 1 suction cup of Ø 230 mm, for sheet metal and slabs up to 1,000 × 1,000 mm. This is the single-cup bench unit: 17 kg of its own weight, moved by hand once off the hook, picking up the sheet fresh from the laser with no cables or hoses to drag around. The vacuum is created by the movement of the hoist itself: lower the hook and the vacuum lifter grips, set the load down and the grip releases. No power, no compressed air and no batteries to recharge are needed, and release cannot happen while the piece is suspended. Materials: steel, stainless steel, aluminium, glass, plastic, stone and wood with a closed, sealed surface.
Minimum workpiece size Ø 250 mm, minimum thickness 1 mm on steel, minimum load 5 kg. Own weight 17 kg. This configuration has no shut-off valves: every cup must rest on the workpiece.
| Rated capacity | 100 kg |
| Suction cups | 1 × Ø 230 mm |
| Maximum sheet metal size | 1,000 × 1,000 mm |
| Minimum size | Ø 250 mm |
| Minimum thickness | 1 mm on steel |
| Minimum load | 5 kg |
| Own weight | 17 kg |
| Shut-off valves | no |
| Power supply | none — self-priming vacuum |
Coming to the price list: this product is just entering the Vacuum Lifters range. Ask for availability, lead time and price: we reply the same day with the configuration that suits your material.
