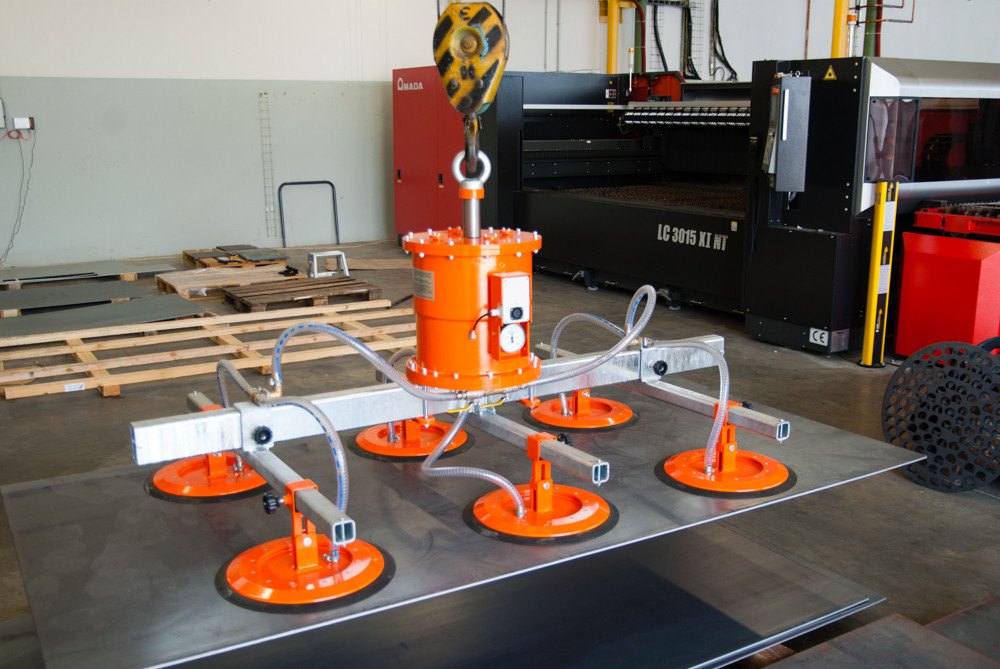

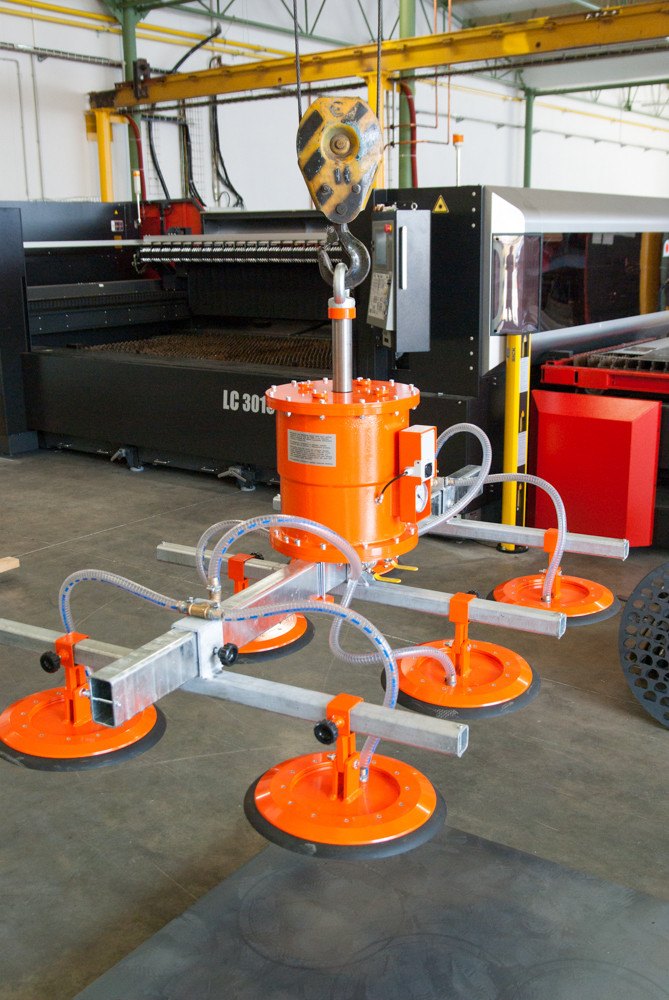

VMS 1200-6R vacuum lifter
Self-priming vacuum lifter VMS 1200-6R of 1,200 kg with 6 suction cups of Ø 400 mm, for sheet metal and slabs up to 3,000 × 1,500 mm. Six Ø 400 mm cups: compared with the four-cup version it gains the ability to work 1 mm sheet, because the load spreads over a third more points. The vacuum is created by the movement of the hoist itself: lower the hook and the vacuum lifter grips, set the load down and the grip releases. No power, no compressed air and no batteries to recharge are needed, and release cannot happen while the piece is suspended. Materials: steel, stainless steel, aluminium, glass, plastic, stone and wood with a closed, sealed surface.
Minimum workpiece size 850 × 850 mm, minimum thickness 1 mm on steel, minimum load 10 kg. Own weight 206 kg. It can be fitted with shut-off valves: by isolating the cups that fall outside the workpiece, smaller formats can be handled without losing the vacuum.
| Rated capacity | 1,200 kg |
| Suction cups | 6 × Ø 400 mm |
| Maximum sheet metal size | 3,000 × 1,500 mm |
| Minimum size | 850 × 850 mm |
| Minimum thickness | 1 mm on steel |
| Minimum load | 10 kg |
| Own weight | 206 kg |
| Shut-off valves | yes |
| Power supply | none — self-priming vacuum |
Coming to the price list: this product is just entering the Vacuum Lifters range. Ask for availability, lead time and price: we reply the same day with the configuration that suits your material.
