Neo HV turning arm 250

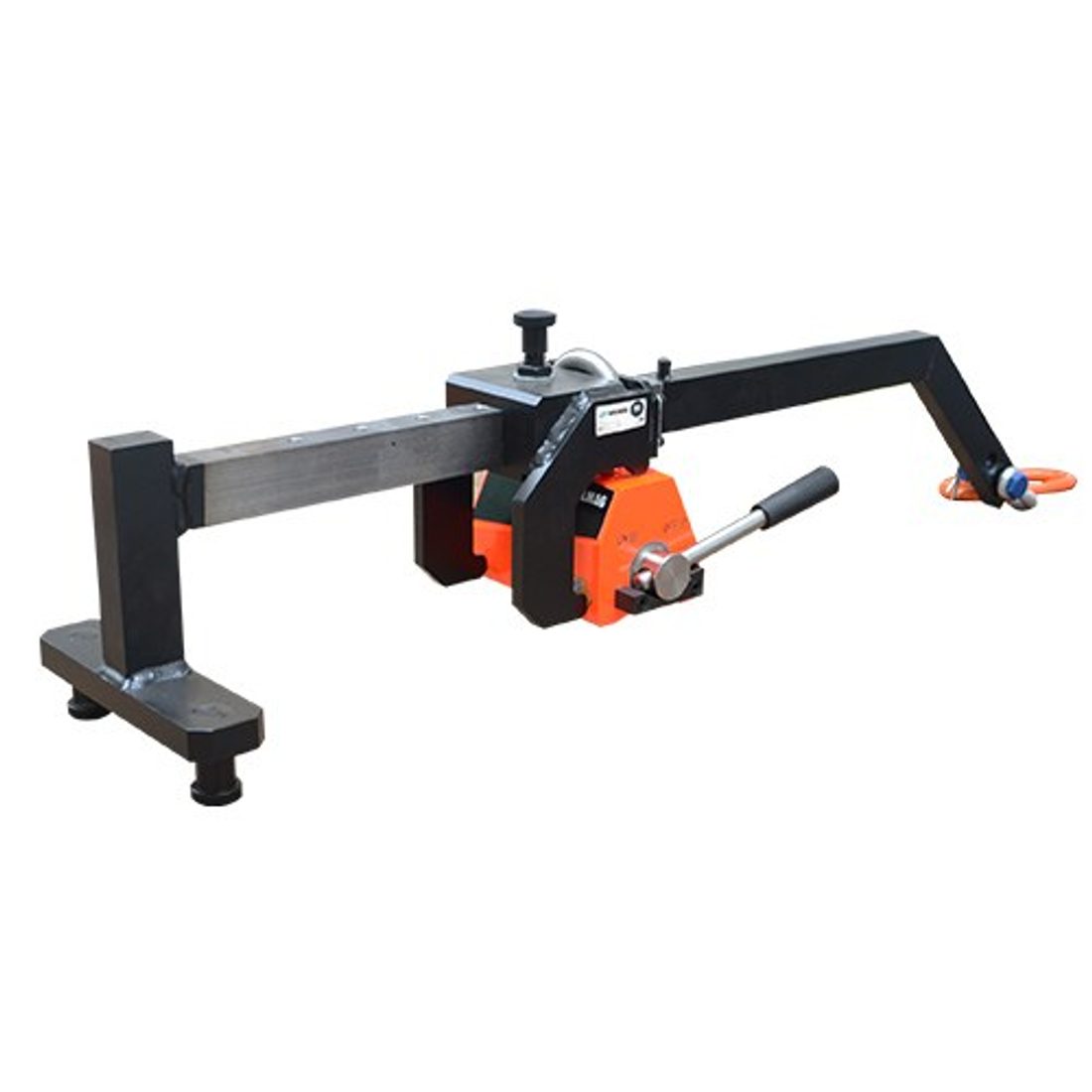

HV 250 turning arm, 244 mm high, order code LARM250: to be paired with a lifting magnet in order to rotate the workpiece from horizontal to vertical and back, without slings and without intermediate supports. Version to pair with the 250 kg Neo magnet: the size for shafts and rounds that go into a medium centre lathe. It is needed whenever a semi-finished part leaves the store lying flat and has to go into the lathe or the horizontal machining centre standing up: the manoeuvre that normally takes two people and a second hook-up is resolved in a single movement of the crane. The arm adjusts over a wide range of diameters and widths, pulls off for the magnet to be changed and carries a sturdy lifting eye. ⚠️ The magnet is not included and must be ordered separately. The photograph shows one model from the series: the rated capacity and dimensions of the model you choose are the ones given in the table.

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
