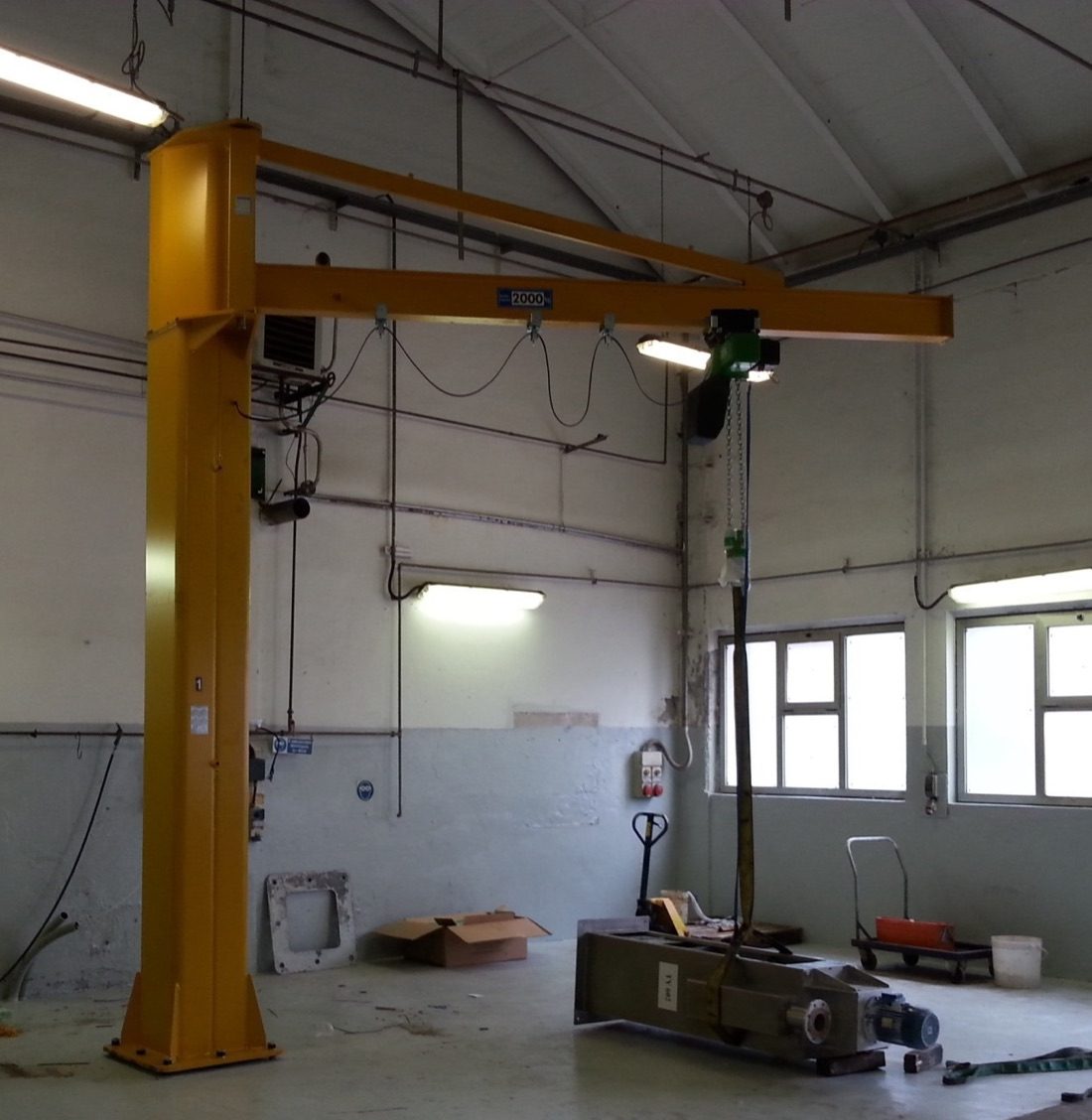

Pillar-mounted jib crane with tie-rod beam, 1,000 kg

The 1,000 kg pillar-mounted jib crane with tie-rod beam carries the load on a beam arm supported by a tie rod that transfers to the pillar: this is how the arm reaches 9 metres and the same set-up holds up to 2,000 kg. CT series, with the 1,000 kg model in seven arm lengths from 3 to 9 metres, built in our Milan workshop and CE certified to 2006/42/EC.
The tie rod is the difference from the track-profile crane: for the same capacity it allows longer arms, and for the same arm it allows higher capacities. In the table the seven 1,000 kg models run from CT-1000-3, with 3 m arm and 3.5 m overall height, to CT-1000-9 with 9 m arm and 4 m height; the free height under the arm is 2.83 m for the 3 m arm and 3.10 m from 4 m upwards.
The arm slews 270° on ball bearings, with an adjustable band slewing brake, and 300° on request. The supply includes pillar, arm with tie rod, electrical system with flat cable and cable carrier, anti-rust primer and two coats of enamel; electric chain hoist and trolley are chosen on capacity and speed.
The CT series covers 250 to 2,000 kg, with arms from 3 to 9 m for capacities up to 1,000 kg and from 3 to 7 m for 2,000 kg: the full table is on the page. It is the crane for steel fabricators, profile warehouses and welding stations where the piece is heavy and the arm has to cover the whole bench.
Fixing is to a foundation block with foundation frame or to a plate with chemical anchors on a suitable floor; there is also the pallet-base version with tie-rod beam, to be moved by forklift. The powered versions with tie-rod beam, pillar or wall-mounted, are in the catalogue and quoted on request.
| Series | CT, models from 250 to 2,000 kg |
| Rated capacity | 1,000 kg |
| Arm | 3 to 9 m, tie-rod beam |
| Overall height | 3.5 m (3 m arm) or 4 m |
| Height under the arm | 2.83 m or 3.10 m |
| Rotation | 270° on ball bearings, 300° on request |
| Supply | pillar, arm with tie rod, band brake, flat cable and cable carrier |
| Certification | CE 2006/42/EC, plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Pillar-mounted jib crane with tie-rod beam, 1,000 kg — models and capacities
| Model | Capacity (KG) | Arm (m) | Overall height (m) | Under the arm (m) |
|---|---|---|---|---|
| CT-250-3 | 250 | 3 | 3 | 2.48 |
| CT-250-4 | 250 | 4 | 3 | 2.48 |
| CT-250-5 | 250 | 5 | 3.5 | 2.83 |
| CT-250-6 | 250 | 6 | 3.5 | 2.83 |
| CT-250-7 | 250 | 7 | 3.5 | 2.83 |
| CT-250-8 | 250 | 8 | 4 | 3.10 |
| CT-250-9 | 250 | 9 | 4 | 3.10 |
| CT-500-3 | 500 | 3 | 3.5 | 2.83 |
| CT-500-4 | 500 | 4 | 3.5 | 2.83 |
| CT-500-5 | 500 | 5 | 3.5 | 2.83 |
| CT-500-6 | 500 | 6 | 4 | 3.10 |
| CT-500-7 | 500 | 7 | 4 | 3.10 |
| CT-500-8 | 500 | 8 | 4 | 3.10 |
| CT-500-9 | 500 | 9 | 4 | 3.10 |
| CT-1000-3 | 1000 | 3 | 3.5 | 2.83 |
| CT-1000-4 | 1000 | 4 | 4 | 3.10 |
| CT-1000-5 | 1000 | 5 | 4 | 3.10 |
| CT-1000-6 | 1000 | 6 | 4 | 3.10 |
| CT-1000-7 | 1000 | 7 | 4 | 3.10 |
| CT-1000-8 | 1000 | 8 | 4 | 3.10 |
| CT-1000-9 | 1000 | 9 | 4 | 3.10 |
| CT-2000-3 | 2000 | 3 | 4 | 3.10 |
| CT-2000-4 | 2000 | 4 | 4 | 3.10 |
| CT-2000-5 | 2000 | 5 | 4 | 3.10 |
| CT-2000-6 | 2000 | 6 | 4 | 3.10 |
| CT-2000-7 | 2000 | 7 | 4 | 3.10 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Pillar-mounted jib crane with tie-rod beam, 1,000 kg: the most common questions
List price from €2,600 + VAT; the price of the model depends on arm length, hoist and fixing.
The tie rod gives longer arms and higher capacities with the same pillar; the cantilever beam leaves the full height above the arm free and suits low ceilings. With 1,000 kg and 7-9 m arms the tie rod is the better choice.
Yes: the CT series reaches 2,000 kg with arms from 3 to 7 m and 4 m overall height; it is quoted on request for the model.
