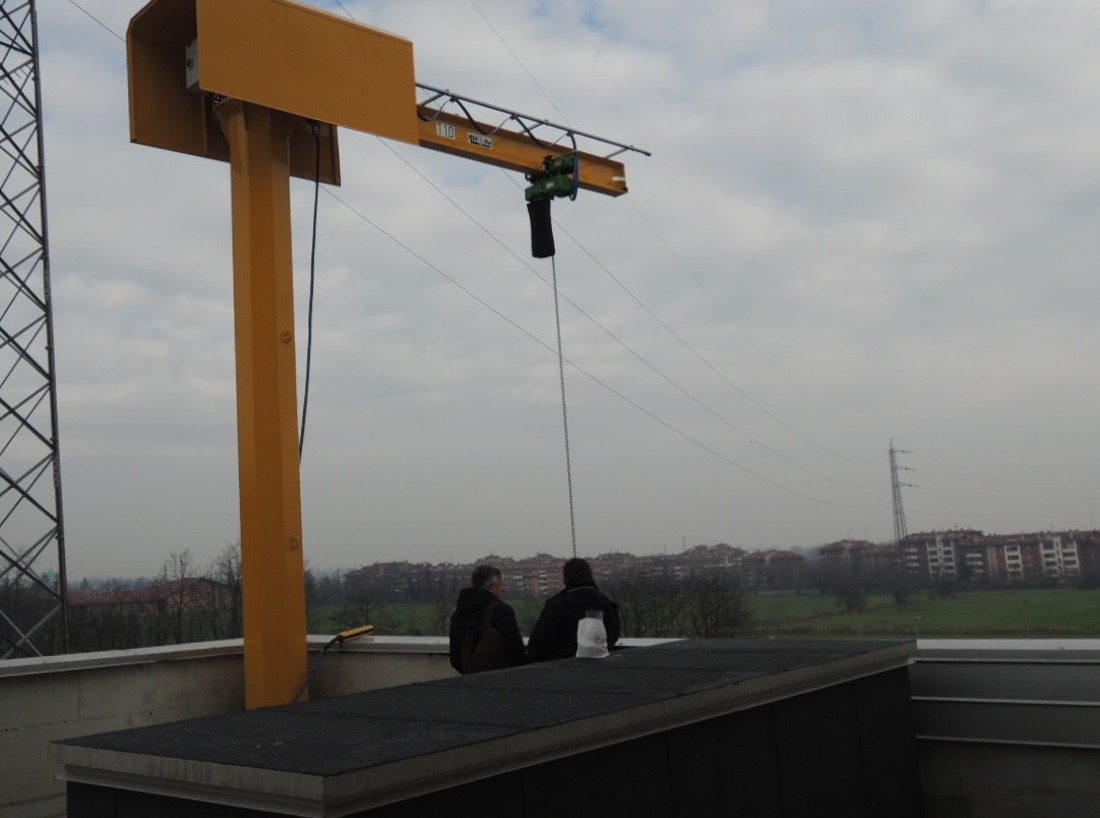

Pillar-mounted jib crane with 360° powered slewing, 1,000 kg

The 1,000 kg pillar-mounted jib crane with powered slewing serves the whole area around the pillar with an arm that turns continuously through 360° driven by a gearmotor: the operator does not push the load, but guides it from the pendant control together with lifting and travel. CRE series, 4 to 10 metres outreach, 4 metres overall height, built for outdoor use and continuous cycles, CE certified to 2006/42/EC.
Powered slewing changes the daily work: with an 8-10 metre arm and a one-tonne load, manual slewing requires an effort and a run-up that weigh at the end of the shift, while the motor brings the hook to the point and stops it where needed. The model is chosen on outreach: in the table, CRE-1000-6 has 6 m outreach, 4 m overall height and 3.60 m under the arm, with a pillar width T of 180 mm; the 8, 9 and 10 m arms have 3.48 m under the arm and a 350 mm pillar.
The supply includes pillar, arm, electrical system with galvanised trunking and flat cable, independent pendant control and multipole line collector, which allows continuous slewing without winding the cables; anti-rust primer and two coats of enamel, with marine-climate treatment when the crane works outdoors. Electric chain hoist and powered trolley are chosen on capacity and required speeds; radio control, two speeds and inverter for soft starts and stops on request.
The same series covers capacities from 500 to 5,000 kg: the 1,000 kg crane is the size for yards, quays, shipyards and departments where the load comes from several directions. For heavier loads the series table lists the 2,000, 3,000 and 5,000 kg models, with outreach up to 10 m and a 350 mm pillar.
Fixing is to a foundation block with foundation frame, sized by us on the moment of the crane at full load and at the tip; on request a plate with chemical anchors where the floor allows. The same crane is available with continuous manual 360° slewing (CRM series, 250 to 2,000 kg, 4 to 8 m outreach), when the slewing motor is not needed.
| Series | CRE, models from 500 to 5,000 kg |
| Rated capacity | 1,000 kg |
| Outreach | 4 to 10 m |
| Overall height | 4 m |
| Height under the arm | 3.48 to 3.67 m depending on outreach |
| Rotation | continuous powered 360°, with line collector |
| Controls | independent pendant; radio control, two speeds and inverter on request |
| Use | outdoor and continuous cycles, marine-climate paint finish |
| Certification | CE 2006/42/EC, plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Pillar-mounted jib crane with 360° powered slewing, 1,000 kg — models and capacities
| Model | Capacity (KG) | Outreach S (m) | Overall height H (mm) | Under the arm h (mm) | Width T (mm) |
|---|---|---|---|---|---|
| CRE-500-5 | 500 | 5 | 4 | 3700 | 150 |
| CRE-500-6 | 500 | 6 | 4 | 3670 | 160 |
| CRE-500-7 | 500 | 7 | 4 | 3640 | 170 |
| CRE-500-8 | 500 | 8 | 4 | 3600 | 180 |
| CRE-500-9 | 500 | 9 | 4 | 3550 | 190 |
| CRE-1000-4 | 1000 | 4 | 4 | 3670 | 160 |
| CRE-1000-5 | 1000 | 5 | 4 | 3640 | 170 |
| CRE-1000-6 | 1000 | 6 | 4 | 3600 | 180 |
| CRE-1000-7 | 1000 | 7 | 4 | 3500 | 200 |
| CRE-1000-8 | 1000 | 8 | 4 | 3480 | 350 |
| CRE-1000-9 | 1000 | 9 | 4 | 3480 | 350 |
| CRE-1000-10 | 1000 | 10 | 4 | 3480 | 350 |
| CRE-2000-4 | 2000 | 4 | 4 | 3600 | 180 |
| CRE-2000-5 | 2000 | 5 | 4 | 3550 | 190 |
| CRE-2000-6 | 2000 | 6 | 4 | 3500 | 200 |
| CRE-2000-7 | 2000 | 7 | 4 | 3380 | 350 |
| CRE-2000-8 | 2000 | 8 | 4 | 3370 | 350 |
| CRE-2000-9 | 2000 | 9 | 4 | 3370 | 350 |
| CRE-2000-10 | 2000 | 10 | 4 | 3370 | 350 |
| CRE-3000-4 | 3000 | 4 | 4 | 3550 | 190 |
| CRE-3000-5 | 3000 | 5 | 4 | 3370 | 350 |
| CRE-3000-6 | 3000 | 6 | 4 | 3370 | 350 |
| CRE-3000-7 | 3000 | 7 | 4 | 3320 | 350 |
| CRE-3000-8 | 3000 | 8 | 4 | 3250 | 350 |
| CRE-3000-9 | 3000 | 9 | 4 | 3250 | 350 |
| CRE-3000-10 | 3000 | 10 | 4 | 3250 | 350 |
| CRE-5000-4 | 5000 | 4 | 4 | 3350 | 350 |
| CRE-5000-5 | 5000 | 5 | 4 | 3270 | 350 |
| CRE-5000-6 | 5000 | 6 | 4 | 3220 | 350 |
| CRE-5000-7 | 5000 | 7 | 4 | 3150 | 350 |
| CRE-5000-8 | 5000 | 8 | 4 | 3150 | 350 |
| CRE-5000-9 | 5000 | 9 | 4 | 3150 | 350 |
| CRE-5000-10 | 5000 | 10 | 4 | 3150 | 350 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Pillar-mounted jib crane with 360° powered slewing, 1,000 kg: the most common questions
List price from €10,000 + VAT; the price depends on outreach, hoist and the controls chosen (pendant or radio control, one or two speeds).
Yes, that is its typical use: marine-climate paint treatment, electrical system in galvanised trunking and protected electrical components. On quays and in harbours it is the basis of boat-hauling cranes.
Slewing is driven by the gearmotor and stops when the button is released; with the optional inverter the stop is progressive, with no swinging of the load.
