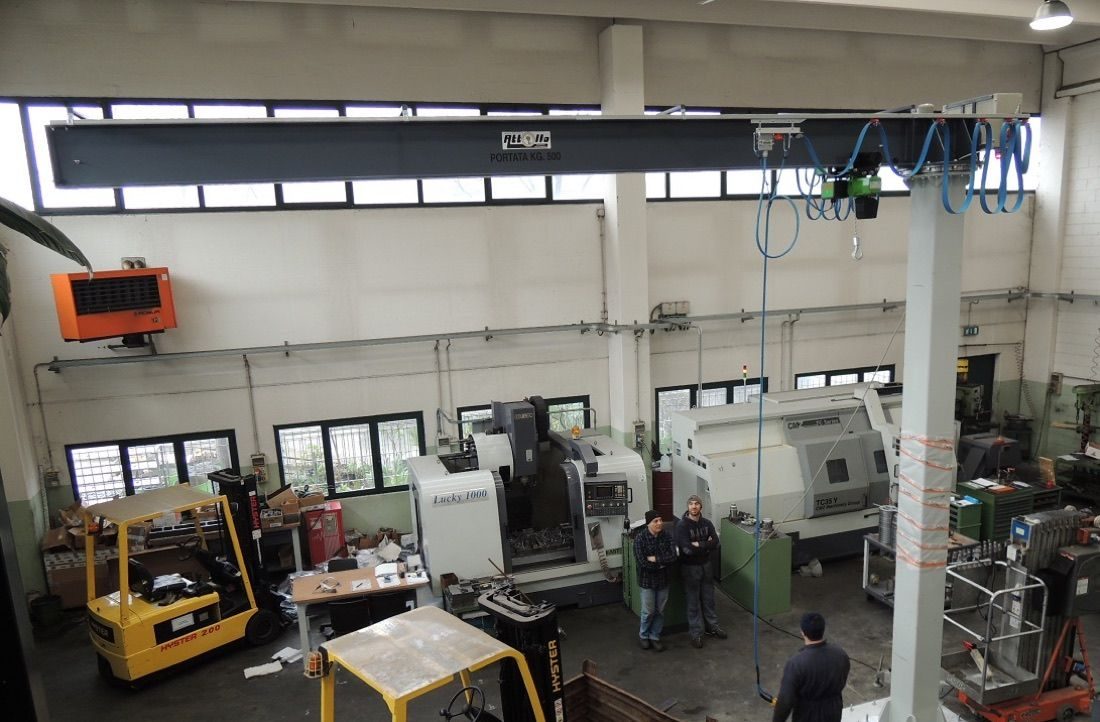

Pillar-mounted jib crane with 360° powered slewing, 500 kg

The 500 kg pillar-mounted jib crane with powered slewing is the entry model of the CRE series: an arm that turns continuously through 360° driven by a gearmotor, 5 to 9 metres outreach, 4 metres overall height, with slewing, lifting and travel operated from the pendant control. For workstations served from several sides and for yards, built in Milan and CE certified to 2006/42/EC.
With 500 kg, powered slewing is mainly about outreach: at 7-9 metres a manual arm is hard to control and the load swings. The five models in the table run from CRE-500-5, with 5 m outreach and 3.70 m under the arm, to CRE-500-9 with 9 m and 3.55 m under the arm; the pillar width T grows from 150 to 190 mm with outreach.
The supply includes pillar, arm, electrical system with galvanised trunking and flat cable, independent pendant control and multipole line collector for continuous slewing; anti-rust primer and two coats of enamel. Electric chain hoist and powered trolley are quoted on the required speed; radio control, two speeds and inverter on request.
The CRE series reaches 5,000 kg with outreach up to 10 m: if the load grows over time, the same set-up (pillar, collector, controls) applies to the 1,000, 2,000, 3,000 and 5,000 kg models, with the pillar going from 150-190 to 350 mm. Alternatively, for continuous slewing without a motor, the manual CRM series covers 250 to 2,000 kg with 4 to 8 m outreach.
Fixing is to a foundation block with foundation frame, which we size; where the industrial floor allows, a plate with chemical anchors. For outdoor and marine environments the paint receives the specific treatment.
| Series | CRE, models from 500 to 5,000 kg |
| Rated capacity | 500 kg |
| Outreach | 5 to 9 m |
| Overall height | 4 m |
| Height under the arm | 3.55 to 3.70 m depending on outreach |
| Rotation | continuous powered 360°, with line collector |
| Controls | independent pendant; radio control, two speeds and inverter on request |
| Certification | CE 2006/42/EC, plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Pillar-mounted jib crane with 360° powered slewing, 500 kg — models and capacities
| Model | Capacity (KG) | Outreach S (m) | Overall height H (mm) | Under the arm h (mm) | Width T (mm) |
|---|---|---|---|---|---|
| CRE-500-5 | 500 | 5 | 4 | 3700 | 150 |
| CRE-500-6 | 500 | 6 | 4 | 3670 | 160 |
| CRE-500-7 | 500 | 7 | 4 | 3640 | 170 |
| CRE-500-8 | 500 | 8 | 4 | 3600 | 180 |
| CRE-500-9 | 500 | 9 | 4 | 3550 | 190 |
| CRE-1000-4 | 1000 | 4 | 4 | 3670 | 160 |
| CRE-1000-5 | 1000 | 5 | 4 | 3640 | 170 |
| CRE-1000-6 | 1000 | 6 | 4 | 3600 | 180 |
| CRE-1000-7 | 1000 | 7 | 4 | 3500 | 200 |
| CRE-1000-8 | 1000 | 8 | 4 | 3480 | 350 |
| CRE-1000-9 | 1000 | 9 | 4 | 3480 | 350 |
| CRE-1000-10 | 1000 | 10 | 4 | 3480 | 350 |
| CRE-2000-4 | 2000 | 4 | 4 | 3600 | 180 |
| CRE-2000-5 | 2000 | 5 | 4 | 3550 | 190 |
| CRE-2000-6 | 2000 | 6 | 4 | 3500 | 200 |
| CRE-2000-7 | 2000 | 7 | 4 | 3380 | 350 |
| CRE-2000-8 | 2000 | 8 | 4 | 3370 | 350 |
| CRE-2000-9 | 2000 | 9 | 4 | 3370 | 350 |
| CRE-2000-10 | 2000 | 10 | 4 | 3370 | 350 |
| CRE-3000-4 | 3000 | 4 | 4 | 3550 | 190 |
| CRE-3000-5 | 3000 | 5 | 4 | 3370 | 350 |
| CRE-3000-6 | 3000 | 6 | 4 | 3370 | 350 |
| CRE-3000-7 | 3000 | 7 | 4 | 3320 | 350 |
| CRE-3000-8 | 3000 | 8 | 4 | 3250 | 350 |
| CRE-3000-9 | 3000 | 9 | 4 | 3250 | 350 |
| CRE-3000-10 | 3000 | 10 | 4 | 3250 | 350 |
| CRE-5000-4 | 5000 | 4 | 4 | 3350 | 350 |
| CRE-5000-5 | 5000 | 5 | 4 | 3270 | 350 |
| CRE-5000-6 | 5000 | 6 | 4 | 3220 | 350 |
| CRE-5000-7 | 5000 | 7 | 4 | 3150 | 350 |
| CRE-5000-8 | 5000 | 8 | 4 | 3150 | 350 |
| CRE-5000-9 | 5000 | 9 | 4 | 3150 | 350 |
| CRE-5000-10 | 5000 | 10 | 4 | 3150 | 350 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Pillar-mounted jib crane with 360° powered slewing, 500 kg: the most common questions
List price from €9,000 + VAT; the price depends on outreach, hoist and controls. The manual 360° slewing version (CRM series) costs less and is quoted on request.
For outreach and cycle: with 7-9 m arms, frequent loads or outdoor workstations, motorised slewing saves the operator from pushing the load and stops it precisely over the deposit point.
Yes, as a rule: the moment of a crane with 9 m outreach requires a sized foundation. We specify it in the supply drawing; on reinforced industrial floors the plate with chemical anchors is considered.
