Pillar-mounted jib crane with articulated arm, 125 to 1,000 kg

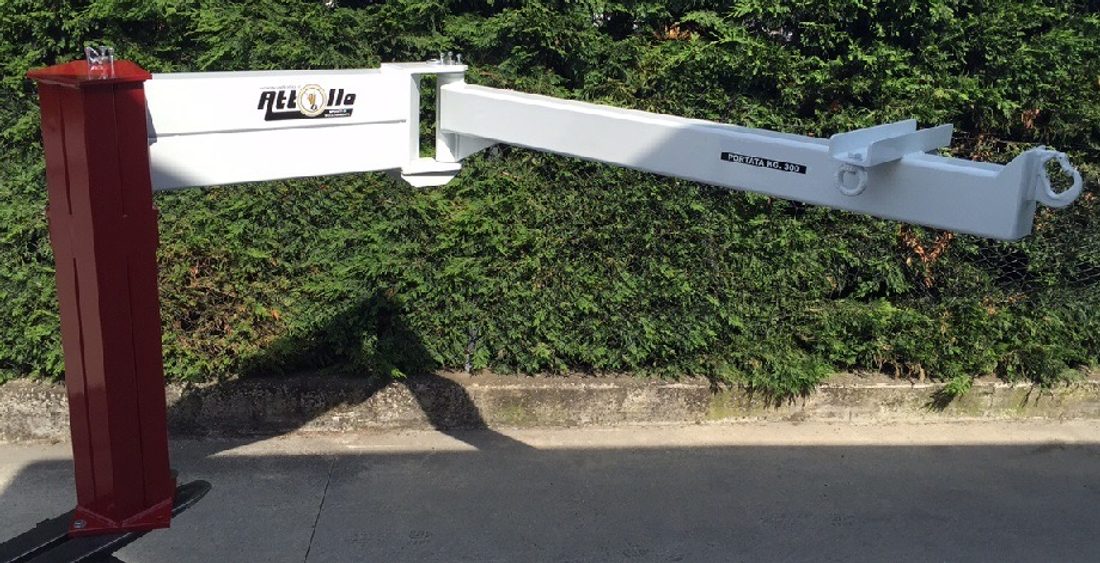

The pillar-mounted jib crane with articulated arm has the arm in two hinged sections: the first slews on the pillar, the second slews on the first, and the hook reaches behind a column, inside a machine or over a bench where a rigid arm cannot enter. CBS series in 21 models, from 125 to 1,000 kg, with the two sections from 1+2 m up to 4+4 m, built in Milan and CE certified to 2006/42/EC.
The two arm sections slew 270° on ball bearings, with an adjustable band brake; 300° slewing is available on request. Total outreach is the sum of the two sections A and B: in the table on the page, CBS-250-6 means 250 kg with 3+3 m, that is six metres reachable even around an obstacle, and overall height runs from 3 m for the short models to 4 m for the 500 and 1,000 kg ones with the longest arms.
The supply includes pillar, articulated arm, electrical system with flat cable and cable carrier, anti-rust primer and two coats of enamel. The electric chain hoist is chosen on capacity; on the second section, in track profile, runs the trolley that takes the hook to the tip.
It is the crane for tight workstations: machining cells with several machines, assembly lines with the bench against the wall, departments where the pillar can only stand in a corner. The arm folds back on itself when not needed and frees the manoeuvring space. For even tighter spaces there is the version with manually telescopic arm (CBSM series, 250 to 1,000 kg).
Fixing is the same as for pillar cranes: a foundation frame in the block or a plate with chemical anchors on a suitable floor. Capacities and outreach beyond the table, such as three-section arms, are designed to measure in our workshop.
| Series | CBS, 21 models |
| Rated capacity | 125, 250, 500 and 1,000 kg |
| Outreach | two sections, from 1+2 m to 4+4 m |
| Overall height | 3, 3.5 or 4 m |
| Rotation | 270° on both sections, 300° on request |
| Supply | pillar, articulated arm, band brake, flat cable and cable carrier |
| Telescopic version | CBSM series, 250 to 1,000 kg, outreach 3-4.5 m + 1.5-2.5 m |
| Certification | CE 2006/42/EC, plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Pillar-mounted jib crane with articulated arm, 125 to 1,000 kg — models and capacities
| Model | Capacity (KG) | Outreach (m) A | Outreach (m) B | Overall height (m) |
|---|---|---|---|---|
| CBS-125-3 | 125 | 1 | 2 | 3 |
| CBS-125-4 | 125 | 2 | 2 | 3 |
| CBS-125-5 | 125 | 2 | 3 | 3.5 |
| CBS-125-6 | 125 | 3 | 3 | 3.5 |
| CBS-125-7 | 125 | 3 | 4 | 3.5 |
| CBS-125-8 | 125 | 4 | 4 | 3.5 |
| CBS-250-3 | 250 | 1 | 2 | 3 |
| CBS-250-4 | 250 | 2 | 2 | 3 |
| CBS-250-5 | 250 | 2 | 3 | 3.5 |
| CBS-250-6 | 250 | 3 | 3 | 3.5 |
| CBS-250-7 | 250 | 3 | 4 | 3.5 |
| CBS-250-8 | 250 | 4 | 4 | 3.5 |
| CBS-500-3 | 500 | 1 | 2 | 3.5 |
| CBS-500-4 | 500 | 2 | 2 | 3.5 |
| CBS-500-5 | 500 | 2 | 3 | 3.5 |
| CBS-500-6 | 500 | 3 | 3 | 4 |
| CBS-500-7 | 500 | 3 | 4 | 4 |
| CBS-500-8 | 500 | 4 | 4 | 4 |
| CBS-1000-3 | 1000 | 1 | 2 | 3.5 |
| CBS-1000-4 | 1000 | 2 | 2 | 4 |
| CBS-1000-5 | 1000 | 2 | 3 | 4 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Pillar-mounted jib crane with articulated arm, 125 to 1,000 kg: the most common questions
When there is an obstacle between the pillar and the pick-up point, or when the workstation is closed on three sides: the second section brings the hook where it is needed and the arm folds away when not working. For the same capacity it costs more than the rigid track profile, so it is chosen only where it is really needed.
List price from €2,200 + VAT; the price depends on capacity, length of the two sections, hoist and fixing.
Yes: the rated capacity applies with the hook at the tip, that is at the sum of the two sections. The structure is sized on that case, the most unfavourable.
