Loading platforms and special attachments
The special attachments that solve one precise problem: loading platforms to unload pallet trucks from vehicles, ball tables for dies, fork-mounted roller tables, clamp carriages for three-way trucks and snow ploughs for the winter. Every attachment is CE certified and adapted to the customer's truck and duty cycle.
Loading platforms and roller beds
The fork-mounted platform that unloads pallet trucks from vehicles without ramps, the ball transfer table with side rails and brake for moulds, and the fork-mounted roller bed powered by the stacker's pump.
Special attachments
The clamp mounting plate for three-way trucks with rotation in an enclosed housing, and the fork-mounted snow plough blade in wear-resistant steel, adjustable to 3 positions.
Fork-mounted vacuum lifters
The battery-powered vacuum lifter with four suction pads and rubber wheels for glass sheets and slabs held vertically, the ten-pad vacuum beam rated 300 kg for thin sheet metal, and the fork-mounted battery-powered vacuum lifter for sheet metal.
Loading platforms and special attachments: models, capacities and dimensions
| Model | Mounting / vehicle | Function | Drive / pads | Supplied with |
|---|---|---|---|---|
| Fork-mounted loading platform for pallet trucks | painted and assembled | unloading pallet trucks from vehicles | — | CE 2006/42 |
| Ball loading table for dies | pedestrian stacker | dies and press tooling | — | removable sides + brake |
| Fork-mounted handling roller table | made to measure on the stacker | load transfer at height | hydraulic, with selector | — |
| Three-way clamp carriage | — | three-way trucks | — | CE 2006/42 |
| Snow plough for forklift trucks | — | wear-resistant steel | 3 positions | — |
| Fork-mounted battery vacuum lifter for glass and slabs | pockets for forks | — | self-contained battery | beacon, pendant control, CE plate |
| 300 kg fork-mounted vacuum beam for sheet metal | — | thin sheet metal, long formats | 300 kg | CE with plate |
| Fork-mounted battery vacuum lifter for sheet metal, for forklift trucks | — | — | on-board battery, self-contained vacuum unit | vacuum reservoir, non-return valve, vacuum gauge, alarm |
Special attachments: what they solve
| Attachment | Machine | Load | Feature |
|---|---|---|---|
| Loading platform for pallet trucks | forklift truck | pallet trucks from vans and lorries | painted and assembled, no ramps |
| Ball transfer table | pedestrian stacker | moulds and dies | removable side rails and brake |
| Powered fork-mounted roller bed | stacker with pump | moulds and loads at height | solenoid valve with selector switch, custom-built |
| Clamp mounting plate | three-way trucks | clamps and attachments | rotation in a closed box |
| Snow plough blade | forklift truck | snow in yards and on ramps | wear-resistant steel, 3 positions, also 1,500 mm |
| Vacuum lifter for glass | forklift truck, fork pockets | glass sheets and slabs held vertically | 4 suction pads, battery, warning beacon |
| Vacuum beam | forklift truck | thin sheet metal | 10 suction pads, 300 kg, on-board vacuum |
Every attachment is adapted to the truck and the work cycle; the vehicle's capacity plate and the load data are required.
How to choose loading platforms and special attachments
Unloading without a loading dock
If vans arrive where there is no loading dock or ramp, the fork-mounted loading platform lowers the pallet truck to the ground with the forklift: no platform to hire.
Moulds and heavy parts on tables
The ball transfer table lets them slide with a push and locks them with side rails and brake; when the table is at height and the part must not be pushed by hand, the powered fork-mounted roller bed transfers it with the stacker's pump.
Glass and sheet metal with the forklift truck
The battery-powered vacuum lifter for glass grips the sheet vertically with its rubber wheels; for thin sheet metal the ten-pad vacuum beam rated 300 kg picks the sheets flat from the stack.
Three-way trucks
To mount clamps and attachments while keeping the rotation of the gripping head, the clamp mounting plate with its mechanism in an enclosed housing is required, checked against the truck model.
Winter

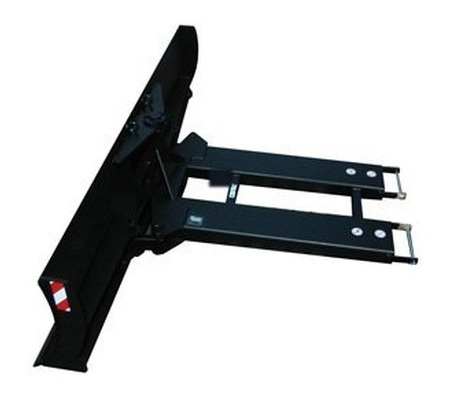

The fork-mounted snow plough blade keeps the yard and ramps clear with the forklift truck: wear-resistant steel blade, adjustable to 3 positions, in several widths including 1,500 mm.
Loading platforms and special attachments: the most common questions
They are quoted on the basis of the truck and the work cycle, because every attachment is custom-built; the quotation is free and for powered roller beds it includes the system design.
The platform is sized to the pallet truck and to the forklift that carries it on its forks; it is supplied painted and fully assembled.
The vacuum lifter for glass and the vacuum lifter for sheet metal run on a self-contained battery, with no cables or compressor; the ten-pad vacuum beam has the vacuum unit on board.
The lower wear-resistant steel blade is the sacrificial part: it wears, not the structure or the paving; the 3-position adjustment directs the snow where needed.
Yes: built to the Machinery Directive 2006/42/EC, with CE marking, capacity plate and declaration of conformity.
