Pillar-mounted jib crane with cantilever beam, 125 to 2,000 kg

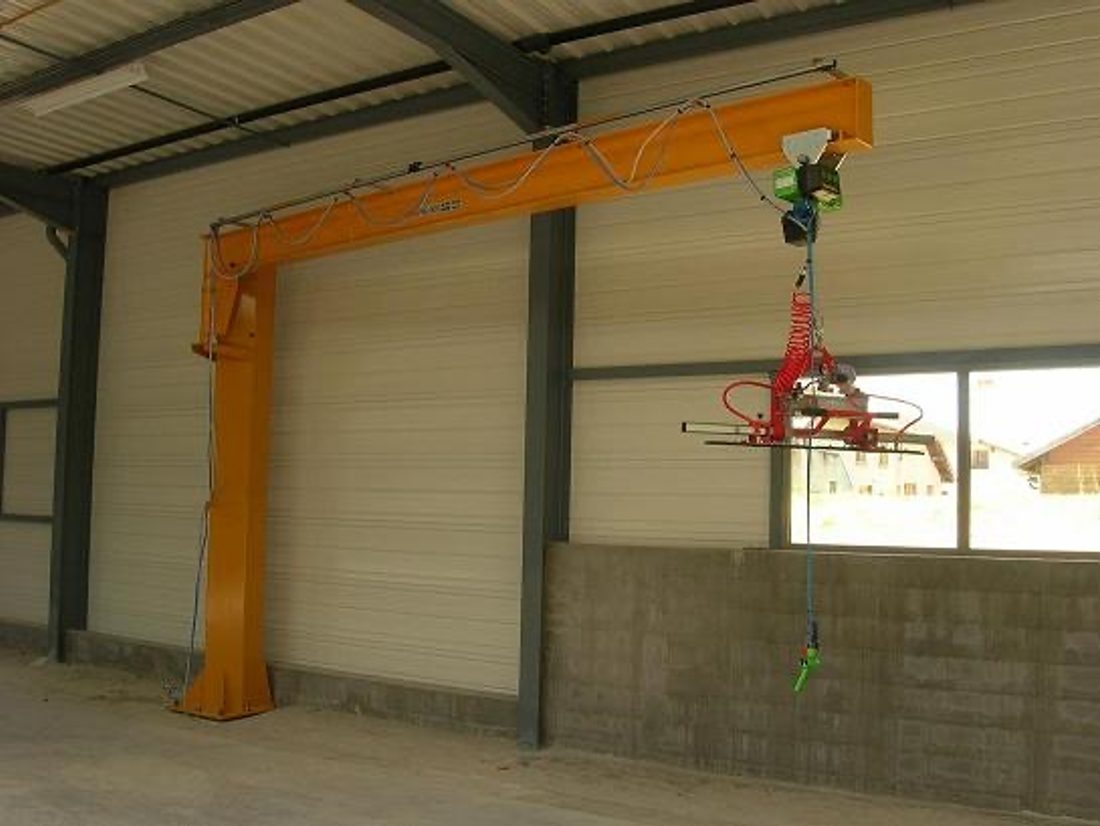

The pillar-mounted jib crane with cantilever beam has no tie rod above the arm: the beam cantilevers from the pillar and leaves the full height under the ceiling free, with maximum hook travel in an overall height of only 3 metres. CS series in 31 models, from 125 to 2,000 kg with 2 to 8 metre arm, built in Milan and CE certified to 2006/42/EC: the crane for low buildings and mezzanines.
All models in the series have 3 m overall height: it is the strong point when ducting, racking or a mezzanine passes above the workstation. The free height under the arm depends on capacity and arm length, which deflects more the longer it is: in the table it runs from 2.85 m for the short 125 kg arms to 2.52 m for the 8 m arm at 1,000 kg.
The arm slews 270° on ball bearings, with an adjustable band slewing brake and 300° slewing on request. The supply includes pillar, arm, electrical system with flat cable and cable carrier, anti-rust primer and two coats of enamel; electric chain hoist and trolley are chosen on capacity.
The series covers four capacities with 2 to 8 m arm and the 2,000 kg size with 3 to 5 m arm: the code CS-500-4 means 500 kg with a 4 m arm. For longer arms or higher capacities at the same height the tie-rod beam is considered, which however takes up the space above the arm.
Fixing is to a foundation block with foundation frame or to a plate with chemical anchors; the pallet-base version with cantilever beam is moved by forklift without drilling. The catalogue also has the wall-mounted crane with cantilever beam, for those with a column, and the powered version.
| Series | CS, 31 models |
| Rated capacity | 125, 250, 500, 1,000 and 2,000 kg |
| Arm | 2 to 8 m (2,000 kg: 3 to 5 m), cantilever beam |
| Overall height | 3 m |
| Height under the arm | 2.52 to 2.85 m depending on capacity and arm |
| Rotation | 270° on ball bearings, 300° on request |
| Supply | pillar, arm, band brake, flat cable and cable carrier |
| Certification | CE 2006/42/EC, plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Pillar-mounted jib crane with cantilever beam, 125 to 2,000 kg — models and capacities
| Model | Capacity (KG) | Arm (m) | Overall height (m) | Under the arm (m) |
|---|---|---|---|---|
| CS-125-2 | 125 | 2 | 3 | 2.85 |
| CS-125-3 | 125 | 3 | 3 | 2.85 |
| CS-125-4 | 125 | 4 | 3 | 2.79 |
| CS-125-5 | 125 | 5 | 3 | 2.77 |
| CS-125-6 | 125 | 6 | 3 | 2.75 |
| CS-125-7 | 125 | 7 | 3 | 2.75 |
| CS-125-8 | 125 | 8 | 3 | 2.72 |
| CS-250-2 | 250 | 2 | 3 | 2.83 |
| CS-250-3 | 250 | 3 | 3 | 2.81 |
| CS-250-4 | 250 | 4 | 3 | 2.77 |
| CS-250-5 | 250 | 5 | 3 | 2.75 |
| CS-250-6 | 250 | 6 | 3 | 2.70 |
| CS-250-7 | 250 | 7 | 3 | 2.67 |
| CS-250-8 | 250 | 8 | 3 | 2.64 |
| CS-500-2 | 500 | 2 | 3 | 2.81 |
| CS-500-3 | 500 | 3 | 3 | 2.77 |
| CS-500-4 | 500 | 4 | 3 | 2.73 |
| CS-500-5 | 500 | 5 | 3 | 2.70 |
| CS-500-6 | 500 | 6 | 3 | 3.64 |
| CS-500-7 | 500 | 7 | 3 | 3.61 |
| CS-500-8 | 500 | 8 | 3 | 3.61 |
| CS-1000-2 | 1000 | 2 | 3 | 2.79 |
| CS-1000-3 | 1000 | 3 | 3 | 2.75 |
| CS-1000-4 | 1000 | 4 | 3 | 2.70 |
| CS-1000-5 | 1000 | 5 | 3 | 6.64 |
| CS-1000-6 | 1000 | 6 | 3 | 2.61 |
| CS-1000-7 | 1000 | 7 | 3 | 2.61 |
| CS-1000-8 | 1000 | 8 | 3 | 2.52 |
| CS-2000-3 | 2000 | 3 | 3 | 2.72 |
| CS-2000-4 | 2000 | 4 | 3 | 2.66 |
| CS-2000-5 | 2000 | 5 | 3 | 2.59 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Pillar-mounted jib crane with cantilever beam, 125 to 2,000 kg: the most common questions
List price from €1,500 + VAT; the price depends on capacity, arm, hoist and fixing.
For height: 3 m overall and no tie rod above the arm, so no obstruction under low ceilings, mezzanines or ducting. It is also the series with the shortest arm in the catalogue, from 2 m, for compact workstations.
The deflection at the tip is calculated in the design and is within the limits of the standard; this is why the height under the arm in the table decreases with arm length. If more hook height is needed, the pillar is built to measure.
