Stainless steel for food and pharmaceutical

In food, pharmaceutical and cosmetics departments paint is not permitted: it chips, releases particles and does not stand up to washing with aggressive detergents. Our jib cranes for these environments are built entirely in stainless steel — pillar, arm and fasteners — in AISI 304 or, where contact is more severe, in AISI 316. The same choice applies to outdoor installations and marine climates, where stainless steel does away with the upkeep of paintwork.

Stainless steel for food and pharmaceutical

Stainless steel jib cranes

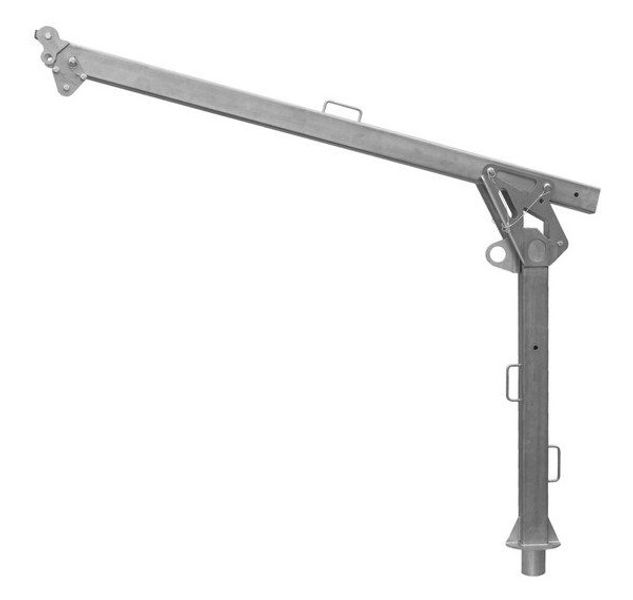

The pillar-mounted crane entirely in AISI 304 or 316, fasteners included, for departments that are washed and sanitised every day, and the modular stainless steel crane for manholes and confined spaces with loads up to 500 kg and protection for three people.

All models

Stainless steel for food and pharmaceutical: models, capacities and dimensions

ModelMaterialRated capacityRotationUse
Pillar-mounted jib crane in stainless steel AISI 304 or 316stainless steel AISI 304 or AISI 316, fasteners includedmade to measuremanualfood, pharmaceutical, chemical, outdoor
Modular stainless steel crane for confined spaces: 500 kg, 3 persons, rescue 140 kgstainless steel, modularup to 500 kg (marked on the jib)up to 3 people at oncemanholes, inspection pits, confined spaces
All series

Stainless steel: when it is needed and which alloy

RequirementAlloyWhy
Food and pharmaceuticalAISI 304daily washing, no release onto the product, smooth surfaces
Chemical, chlorides, aggressive sanitisersAISI 316resistance to corrosion from chlorides and acids
Outdoors and marine environmentAISI 316salt spray and humidity with no paintwork to redo
Confined spaces, water networksmodular stainless steelportable anchor point, weather-resistant

All fasteners are stainless steel: a painted crane with galvanized screws shows the first rust spots after the first washes.

How to choose

How to choose stainless steel for food and pharmaceutical

304 or 316

AISI 304 for food and pharmaceutical; AISI 316 with chlorides, aggressive sanitisers and in the marine environment.

The hoist

In a stainless steel version or with stainless steel chain and hooks suited to the department; for classified zones, ATEX hoists.

The finishes

On request, polished welds and surfaces without stagnation points for food contact areas.

Frequently asked questions

Stainless steel for food and pharmaceutical: the most common questions

The stainless steel crane for confined spaces starts at 2,600 € + VAT; the pillar-mounted jib crane in AISI 304 or 316 is quoted on capacity and outreach.
