ATEX explosion-proof
When handling work takes place in hazardous environments, the equipment has to deliver high levels of safety and reliability. Our range of explosion-proof cranes and lifting systems comes out of long experience in applications in potentially explosive atmospheres: industrial jib cranes and manual cranes, electric, pneumatic and manual hoists, with capacities from 125 kg to 2,000 kg. Every component that could generate a spark — hooks, chains, trolley wheels — is replaced with non-sparking materials in accordance with the ATEX Directive 2014/34/EU.
ATEX hoists

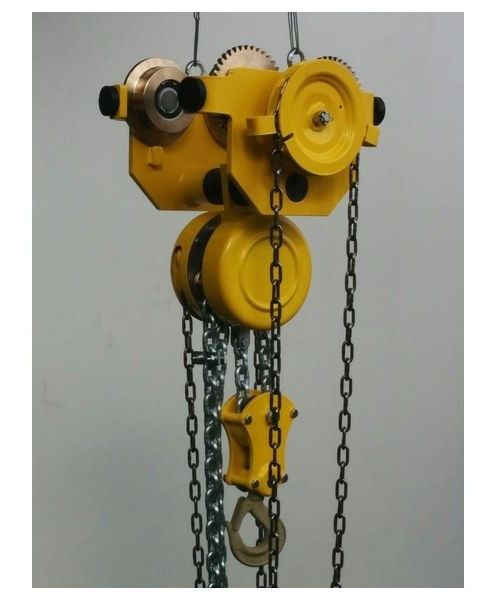

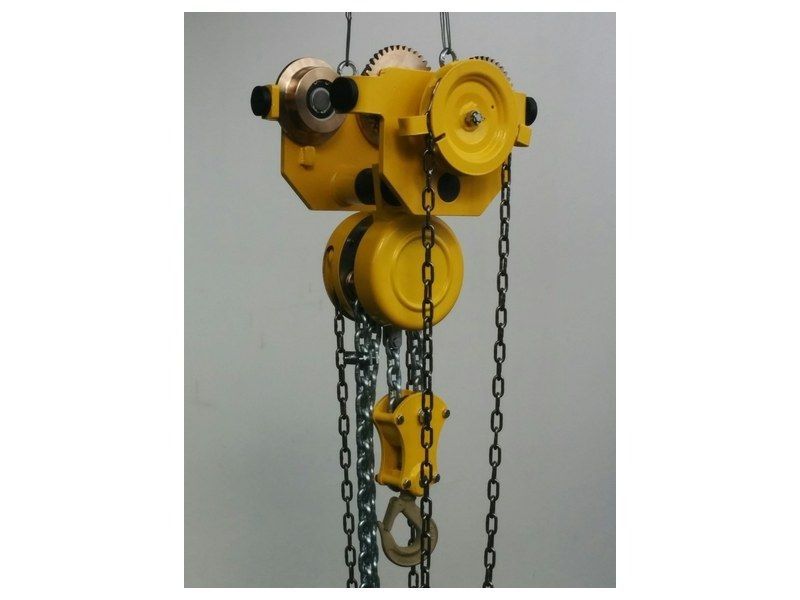

The manual chain hoist Group II Category 2GD T5 with spark-proof machining and the PROFI pneumatic hoist for continuous cycles, from -20 to +70 °C, with integrated rotor brake.
ATEX explosion-proof: models, capacities and dimensions
| Model | Operation | ATEX classification | Temperature | Build |
|---|---|---|---|---|
| ATEX hand chain hoist, Group II Category 2GD T5 | manual, with manual trolley | Group II Category 2GD, zones 1 gas and 21 dust | T5, max 100 °C surface | bronze-plated hooks, stainless steel hand chain, trolley wheels and ratchet disc in solid bronze |
| PROFI ATEX pneumatic chain hoist for continuous cycles | pneumatic, compressed air | areas classified under the ATEX Directive 2014/34/EU | operating from -20 to +70 °C | integrated on the rotor, automatic locking without pressure |
ATEX zones and the hoists in the list range
| Zone | Atmosphere | Required category | Hoist in the list range |
|---|---|---|---|
| Zone 1 | gas, likely presence in normal operation | 2G | manual 2GD T5, pneumatic |
| Zone 2 | gas, occasional presence | 3G (or higher) | manual 2GD T5, pneumatic |
| Zone 21 | dust, likely presence | 2D | manual 2GD T5, pneumatic |
| Zone 22 | dust, occasional presence | 3D (or higher) | manual 2GD T5, pneumatic |
| Zone 0 / 20 | continuous presence | 1G / 1D | subject to dedicated assessment |
Classifying the department is the employer's responsibility: tell us the zone, substances and temperature class and we will check the marking.
How to choose atex explosion-proof
Zone and category
Zone 1/21 requires category 2, zone 2/22 category 3: the manual hoist in the list range is 2GD and covers both.
Manual or pneumatic
Manual for occasional lifts without power in the zone; pneumatic for continuous cycles using the department's compressed air.
Crane and beam
The jib crane or monorail under which the hoist works must be in an ATEX version: bronze wheels, earthing, spark-free components.
ATEX explosion-proof: the most common questions
List price for the manual chain hoist starts at 1,700 € + VAT and for the PROFI pneumatic hoist at 4,500 €.
The limit on the maximum surface temperature of the hoist: 100 °C, below the ignition temperature of most substances used in chemical and painting processes.
Yes: jib cranes, gantries and suspended crane systems in ATEX versions with the same precautions as the hoists.
