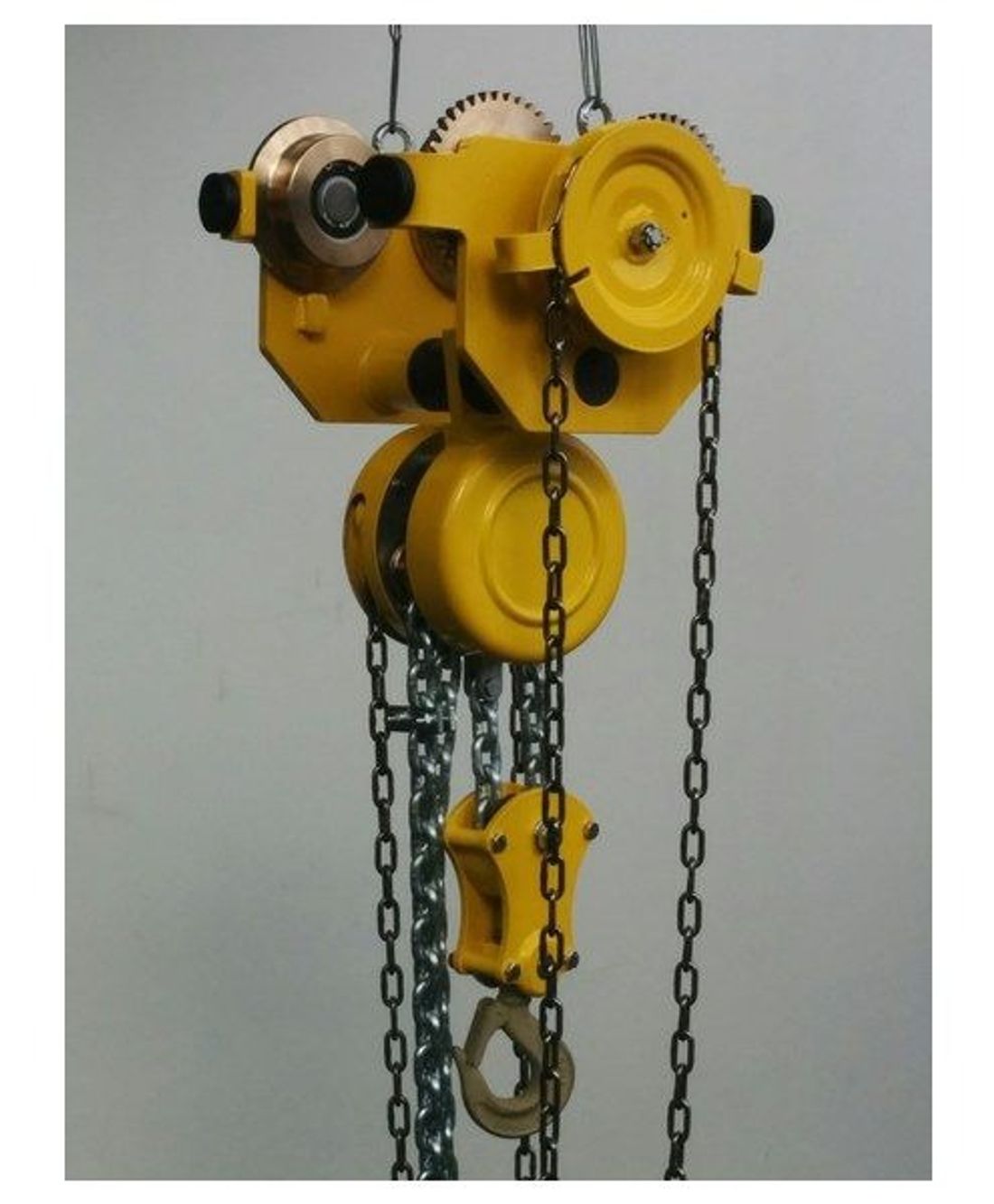

ATEX hand chain hoist, Group II Category 2GD T5

The ATEX hand chain hoist works in classified zones with an explosion risk: Group II Category 2GD, for zones 1 gas and 21 dust, temperature class T5 with a maximum surface temperature of 100 °C. Design and construction are those of the standard hoist, with spark-proof features: bronze-plated hooks, stainless steel hand chain on hoist and trolley, trolley wheels and ratchet disc in bronze machined from solid. List price from 1,700 € + VAT.
The parts that can rub or strike are in bronze or stainless steel: bronze-plated hooks produce no sparks against the load, solid bronze trolley wheels run on the beam without ignition, and the stainless steel hand chain neither rusts nor sparks.
Category 2GD covers zones 1 and 21 (and therefore also 2 and 22); class T5 limits the surface temperature to 100 °C: suitable for most substances in the chemical, petrochemical, painting and silo sectors.
Capacities and lift heights as for the standard manual series; the manual push or hand-chain-operated trolley runs on the beam of the crane or monorail, which must also be specified in ATEX execution.
Supplied with ATEX 2014/34/EU marking, CE marking, capacity plate, declaration of conformity and manual.
| ATEX classification | Group II Category 2GD, zones 1 gas and 21 dust |
| Temperature class | T5, max 100 °C surface |
| Build | bronze-plated hooks, stainless steel hand chain, trolley wheels and ratchet disc in solid bronze |
| Operation | manual, with manual trolley |
| Directive | ATEX 2014/34/EU |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
ATEX hand chain hoist, Group II Category 2GD T5: the most common questions
List price from 1,700 € + VAT; capacity, lift height and trolley determine the price in the quotation.
Zones 1 and 21 (category 2GD), and consequently 2 and 22; not for zone 0.
Yes: crane, trolley and beam must have the same precautions; we design the whole system.
