Modular stainless steel crane for confined spaces: 500 kg, 3 persons, rescue 140 kg

Modular stainless steel crane for confined spaces: 500 kg, 3 persons, rescue 140 kg
Stainless steel jib cranes

The stainless steel crane is the lifting and lowering device for entry into manholes and confined spaces: modular and weather-resistant, it lifts loads up to 500 kg (marked on the jib), provides personal protection for three people at the same time and serves as a rescue point with rescue devices up to 140 kg, such as the CRW 200. List price 2,600 € + VAT.

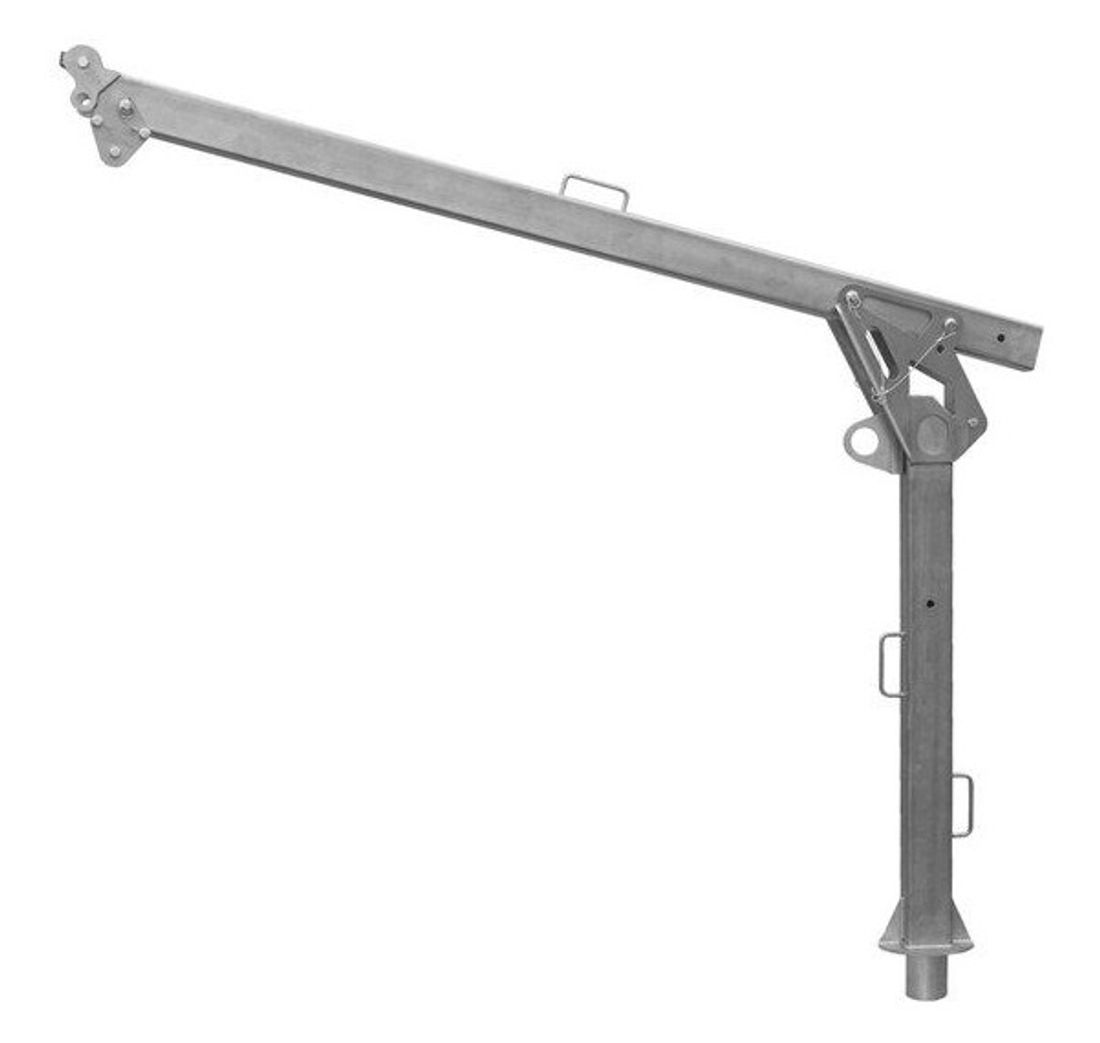

The crane consists of column, jib and base: it is assembled on site in a few minutes, fixed to the base or the sleeve and dismantled for transport. Stainless steel is unaffected by rain, salt spray and washing.

Three functions in one device: lifting goods up to 500 kg with the wire rope winch, fall-arrest anchor point for three operators and recovery system with the rescue device (up to 140 kg) to bring the person inside back to the surface.

It is the crane for water and sewer networks, treatment plants and maintenance in inspection pits and tanks: where there is nothing to attach to, the crane brings its own anchor point.

Supplied with CE marking, declaration of conformity and manual; additional fixing bases and rescue devices are quoted separately.

Materialstainless steel, modular
Rated capacityup to 500 kg (marked on the jib)
Personal protectionup to 3 people at once
Rescuerescue lifting devices up to 140 kg, e.g. CRW 200
Usemanholes, inspection pits, confined spaces
CertificationCE, declaration of conformity and manual
€ 2.600 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Frequently asked questions

Modular stainless steel crane for confined spaces: 500 kg, 3 persons, rescue 140 kg: the most common questions

List price 2,600 € + VAT; bases, winches and rescue devices are quoted separately.
