Overhead cranes and suspended systems

Overhead cranes and suspended systems that serve the whole working area without taking up floor space: single-girder on track profile anchored to existing structures, or on free-standing columns when the roof cannot carry the load. Manual or powered travel with pendant control and radio control, capacities from 125 to 2,000 kg and beyond, all CE certified.

Overhead cranes and suspended systems

Suspended crane systems and overhead travelling cranes on columns

The 1,500 kg free-standing suspended crane system for factory buildings with light roof structures or under lease, and the motorised overhead travelling crane on iron columns with inverter and radio remote control; in the catalogue, the light overhead travelling crane and the 1,000 kg enclosed-track system.

All models

Overhead cranes and suspended systems: models, capacities and dimensions

ModelRated capacityStructureTravelLifting
1,500 kg suspended system on columns1,500 kgfree-standing on steel columnselectric chain hoist with pendant control—
Powered overhead crane on steel columns—steel columns with runwaypowered, pendant or radio controlelectric chain hoist

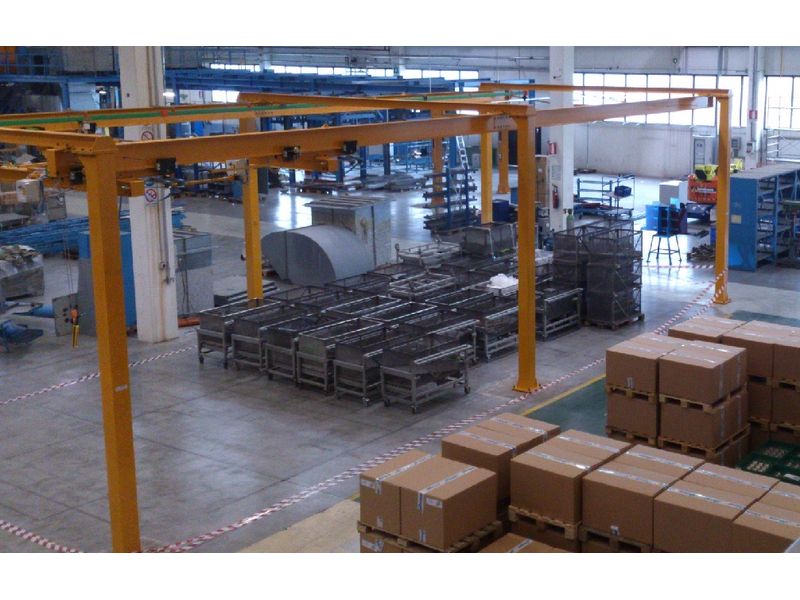

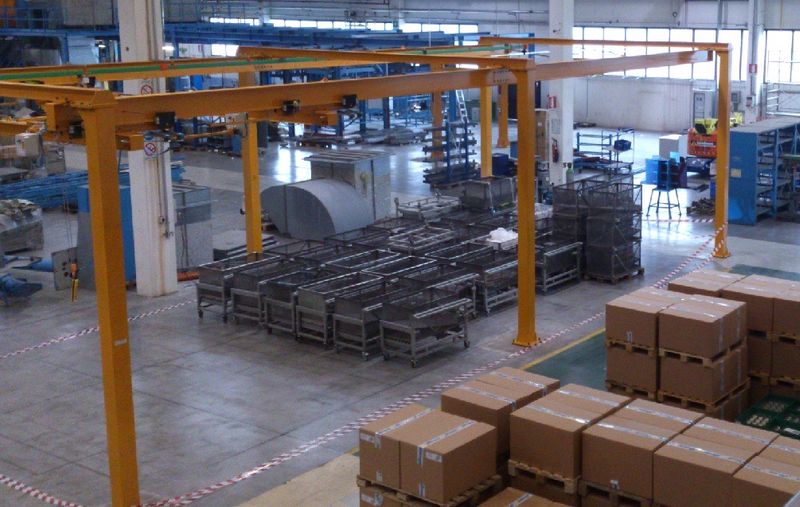

Light overhead travelling crane on columns, single-girder up to 10 tonnesup to 10 t (double-girder up to 60 t)—motorisedelectric wire rope hoist

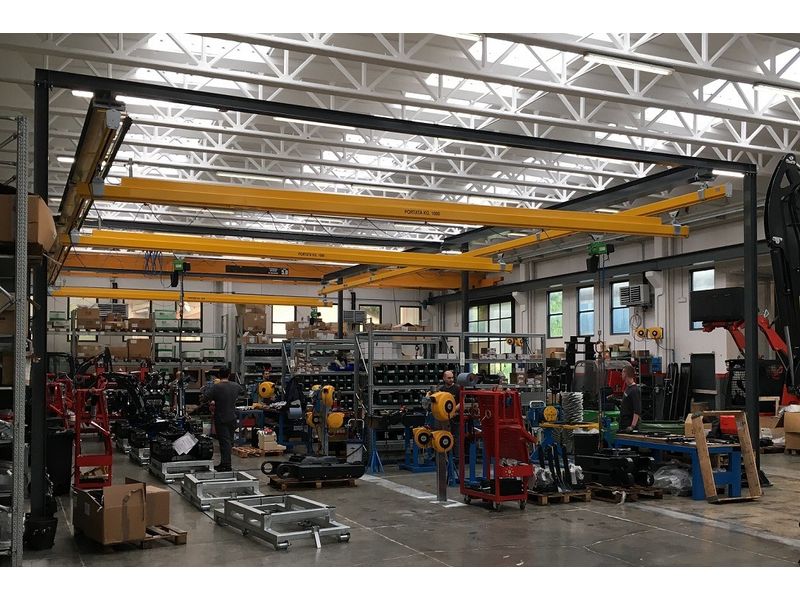

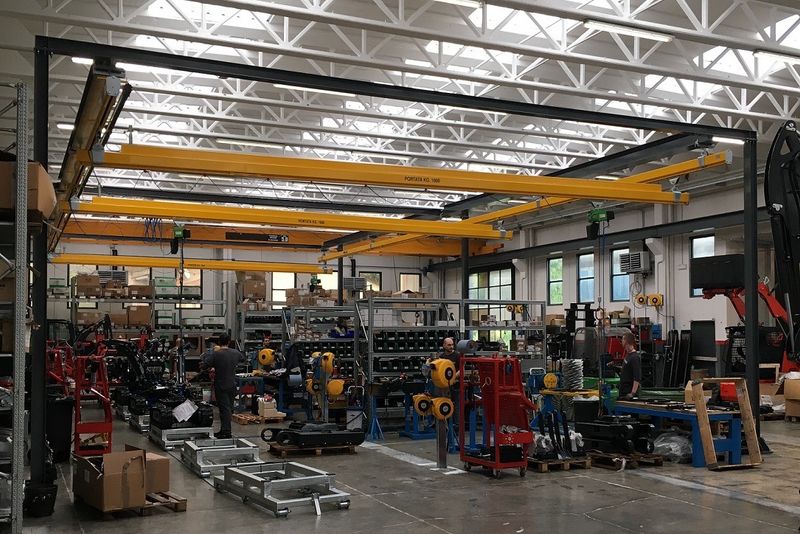

1,000 kg suspended crane system with enclosed track1,000 kg (series from 125 to 2,000 kg)modular enclosed track, small, medium and large sizespush or electric trolleysmanual or electric chain hoist
All series

The configurations

SystemRated capacityStructureTravelWhen
Suspended system on track profile125 – 2.000 kganchored to beams, slabs, roof structurepush or electricload-bearing roof structure, large area
Suspended crane system on columns1,500 kgfree-standing on steel columnselectric chain hoistlight roof structure or rented factory building
Motorised overhead crane on columnsproject-basedsteel columns with runwaymotorised with inverter, radio remote controlloads over 500 kg, many handling operations per day
Single-girder / double-girder overhead travelling craneup to 10 t / 60 tsupported on runwaysmotorisedheavy industry, wire rope hoist

Each system is designed for the factory building: capacity, area, usable height, structure and duty cycles.

How to choose

How to choose overhead cranes and suspended systems

The roof structure

If it is load-bearing, the enclosed-track system is anchored to the beams and takes up no floor space; if it is light or the building is rented, the free-standing structure on columns.

Push-operated or motorised

Up to 500 kg, push travel is acceptable; above that, or with many handling operations per day, motorisation with inverter brings the hook to the point effortlessly.

What the quotation requires

Capacity, area to be covered, usable height, building structure and cycles: with these data the system is designed and quoted.

Frequently asked questions

Overhead cranes and suspended systems: the most common questions

In the catalogue, the 1,000 kg enclosed-track system starts at 6,000 € + VAT and the light overhead travelling crane on columns at 8,000 €; free-standing and motorised versions are quoted on the project.
