Home / Catalogue / New Jersey barrier clamp / Automatic clamp for New Jersey barriers, PNJA series from 5,000 to 8,000 kg

Automatic clamp for New Jersey barriers, PNJA series from 5,000 to 8,000 kg

Automatic clamp for New Jersey barriers, PNJA series from 5,000 to 8,000 kg
New Jersey barrier clamp

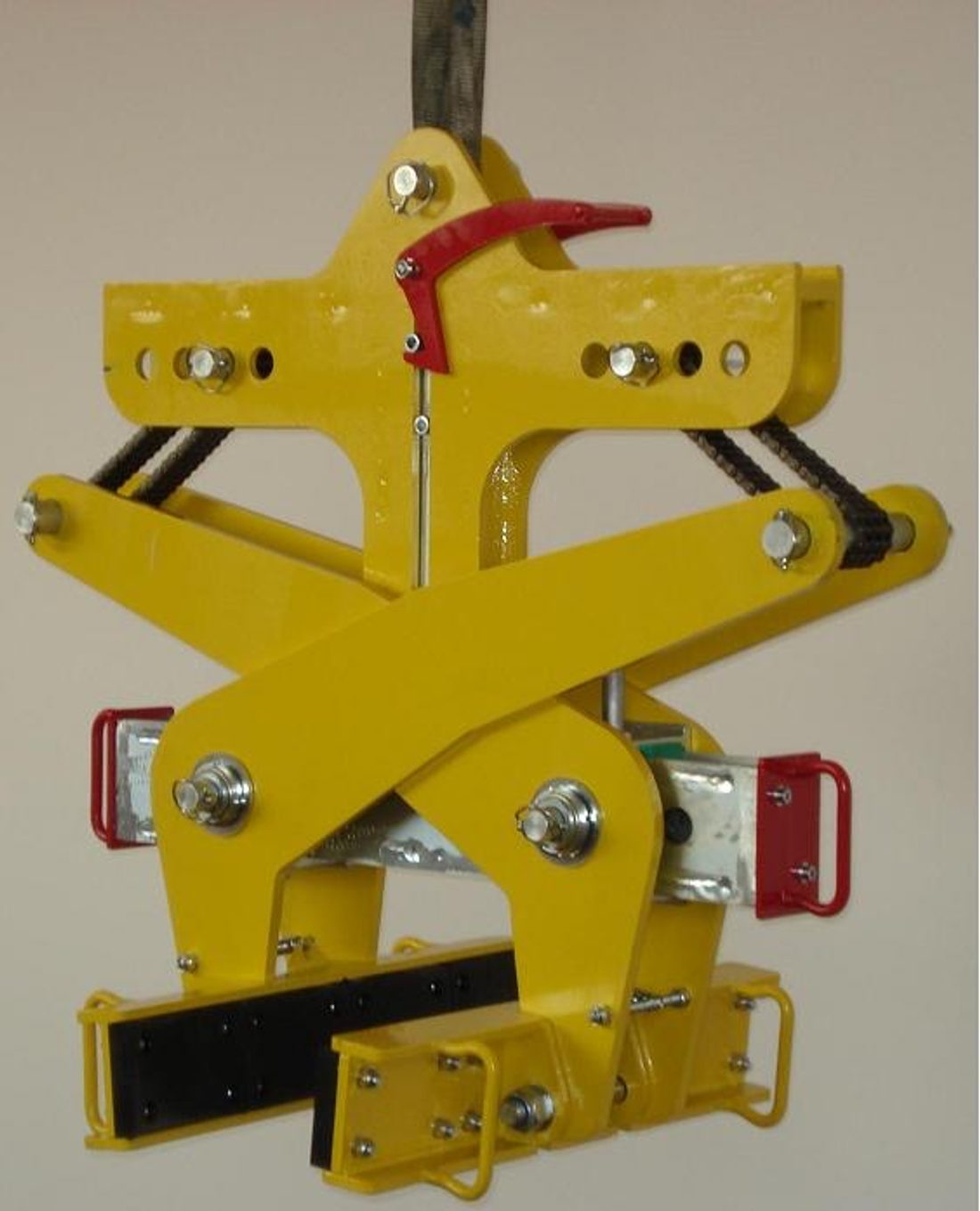

The New Jersey clamp automatically engages and releases road barriers and concrete elements with parallel faces: it is lowered onto the piece, closes as it lifts and releases when set down, with nobody near the load. PNJA series in three models of 5,000, 6,000 and 8,000 kg with jaw opening up to 400 mm, cut-resistant rubber jaws as standard or iron jaws on request, galvanic zinc plating, compliant with UNI EN 13155. List price from 3,000 € + VAT.

Data sheet values: PNJA 5000 and 6000 with 25-400 mm opening, 200 mm gripping depth, 500 mm jaws and 220 kg; PNJA 8000 with 50-400 mm opening, 850 mm jaws and 430 kg. Basic supply with automatic locking, cut-resistant rubber jaws and galvanic zinc plating.

The black rubber jaws grip the concrete without damaging it, leaving a slight black mark; they wear on rough surfaces. The iron jaws with pointed teeth penetrate the surface and hold better in intensive use and on barriers.

Under mobile cranes, truck-mounted cranes and overhead cranes, the clamp lays barriers along the motorway or in the precaster's yard at a pace that slings cannot match; special colours on request.

Compliant with UNI EN 13155 and Machinery Directive 2006/42/EC, with CE marking, capacity plate and declaration of conformity.

SeriesPNJA, 3 models
Rated capacity5,000, 6,000 or 8,000 kg
Jaw opening25-400 mm (5,000 and 6,000 kg), 50-400 mm (8,000 kg)
Gripping depth200 mm
Jaw length500 mm (5,000 and 6,000 kg), 850 mm (8,000 kg)
Weight220 kg (5,000 and 6,000 kg), 430 kg (8,000 kg)
Jawscut-resistant rubber as standard, iron on request
Finishgalvanic zinc plating, colours on request
CertificationUNI EN 13155, 2006/42/EC, capacity plate
€ 3.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

Automatic clamp for New Jersey barriers, PNJA series from 5,000 to 8,000 kg: the most common questions

List price from 3,000 € + VAT for the 5,000 kg model; the 6,000 and 8,000 kg models and the iron jaws are confirmed in the quotation.
