Certified support stands — capacity to measure
Certified support stands

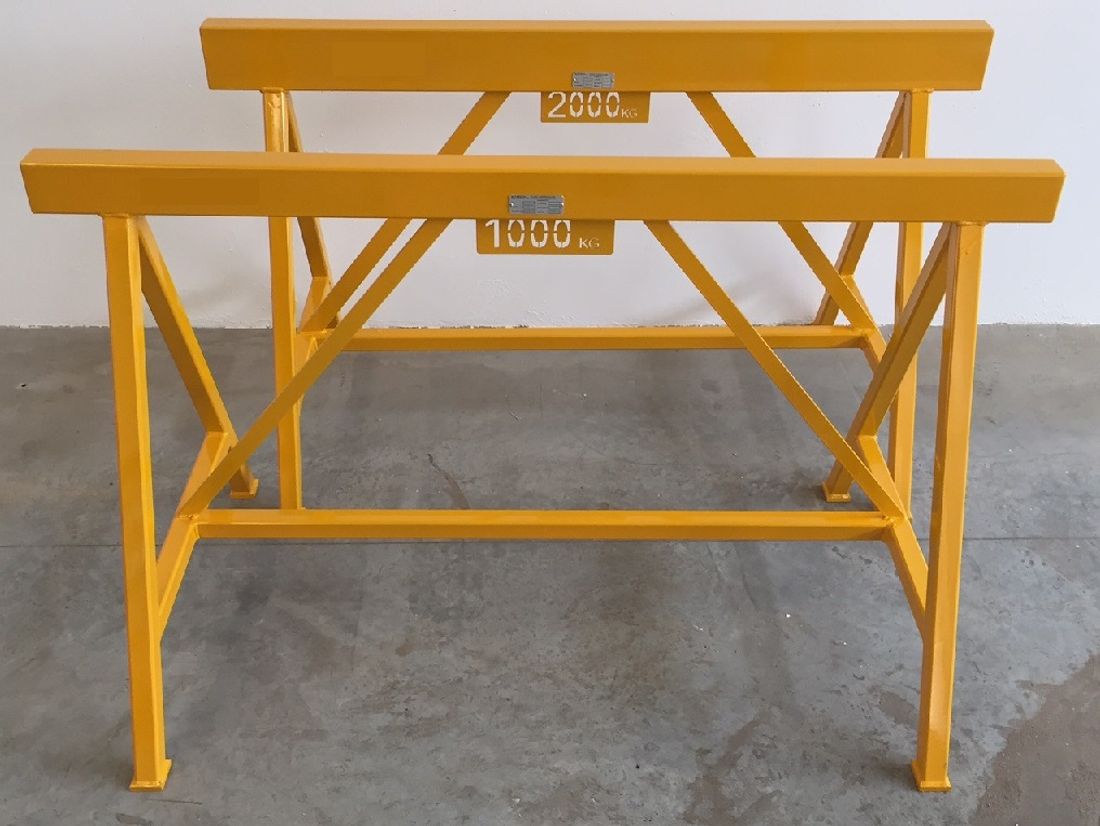

Certified support stands — capacity to measure is a CE certified support stand that holds material steady on its support during work. Built to measure and certified to CE 2006/42, the Machinery Directive.
€ 700 + VAT
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
8 capacities · from 500 to 15.000
Certified support stands — capacity to measure — models and capacities
| Type | L (mm) | H (mm) | B (mm) | Capacity (Kg) | Base (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| A CA 0,5 | 1.200 | 900 | 700 | 500 | 50 | 26 |
| A CA 1 | 1.500 | 900 | 700 | 1.000 | 50 | 29 |
| A CA 2 | 1.500 | 900 | 700 | 2.000 | 50 | 32 |
| A CA 3 | 1.500 | 900 | 700 | 3.000 | 50 | 47 |
| A CA 5 | 1.500 | 900 | 700 | 5.000 | 50 | 50 |
| A CA 7 | 2.000 | 900 | 1.000 | 7.000 | 100 | 90 |
| A CA 10 | 2.000 | 900 | 1.000 | 10.000 | 100 | 122 |
| A CA 15 | 2.000 | 900 | 1.000 | 15.000 | 100 | 140 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
