Aluminium tripods
Aluminium tripods for lifting and access: light to carry, quick to open, stable under load. From the adjustable workshop version to safety tripods for confined spaces, with dedicated winches and accessories.
Safety tripods for confined spaces
EN 795 tripods for the access and rescue of persons: TM 9, TM 9-N and TM 9-L with leg locking, TM 13, lightweight TM 17, the basic lightweight version and the steel TM 7 for construction sites; with a winch and a retractable fall arrester they become the complete system.

Personnel safety tripod (TM 9)

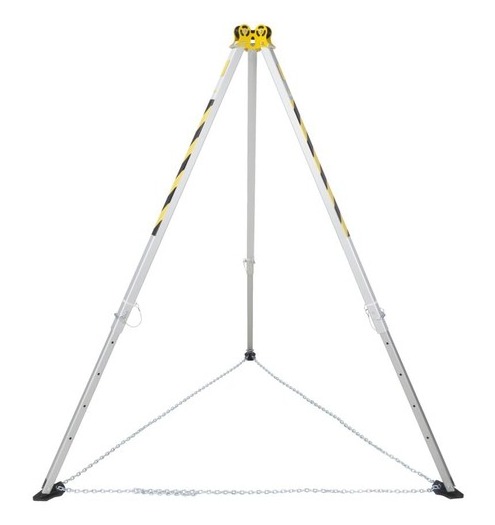

Aluminium safety tripod (TM 9-N)

Safety tripod with leg locking (TM 9-L)

Safety tripod (TM 13)

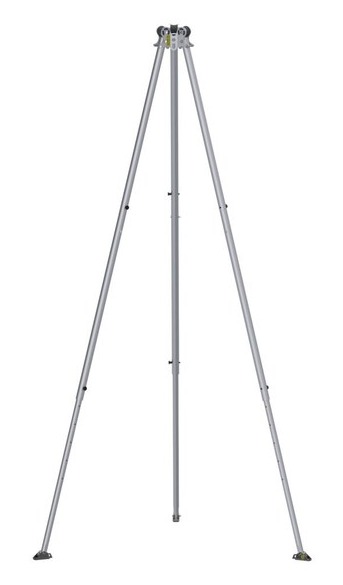

Light aluminium safety tripod (TM 17)

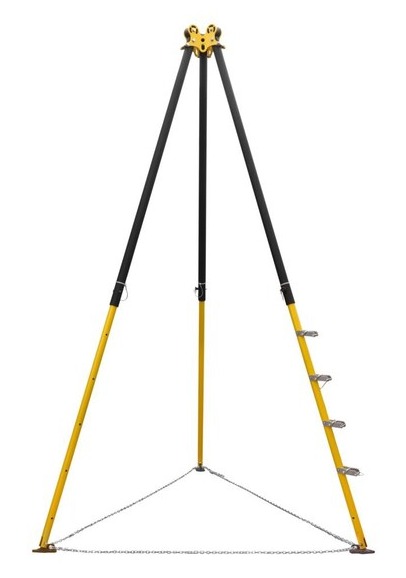

Light aluminium safety tripod (TM 15)

Steel safety tripod (TM 7)
Compact tripods, on wheels and with winch
The TM 15 MINI that fits in a car boot, the tripod on suction-cup bases for smooth surfaces, the TM 6 and TM 6-T on wheels to move between manholes without folding, the kit with pre-mounted winch and the TM 9-T for goods.

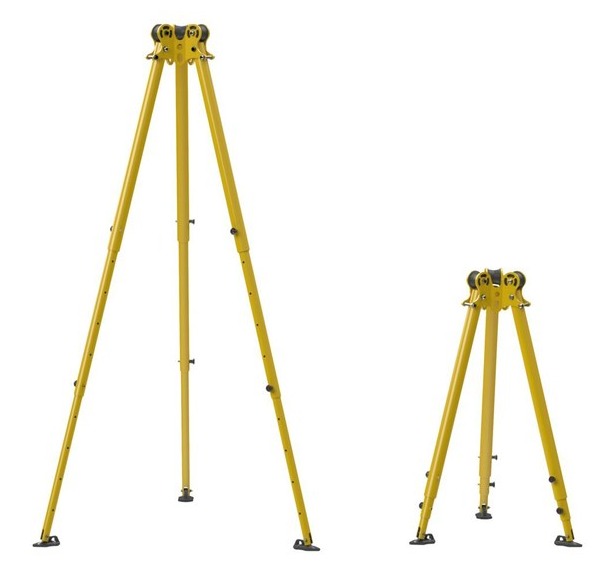

Compact aluminium tripod (TM 15 MINI)

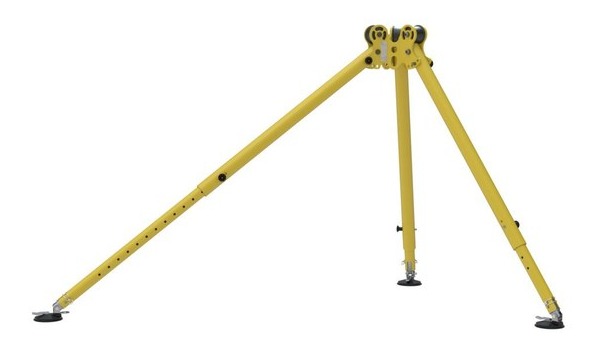

Compact aluminium tripod on suction pads (TM 16)

Safety tripod on wheels (TM 6)

Aluminium goods tripod on wheels (TM 6-T)

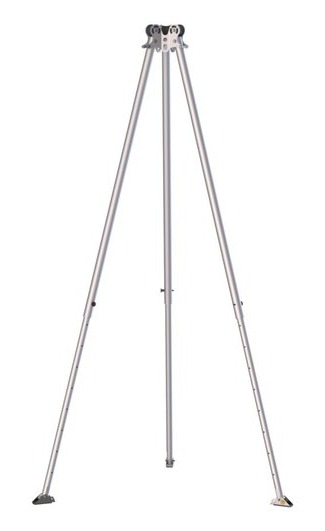

Aluminium tripod with manual winch kit (TM 15-G)

Goods tripod (TM 9-T)
Davits, quadpod and lifting tripod
The TM 14 with cantilever davit, the TM 14-ZSE convertible crane/tripod, the TM 1 base crane, the ALUQUAD quadpod for 500 kg and 3 persons for wide openings, and the Attollo lifting tripod from 250 to 3,000 kg with hoist or winch.

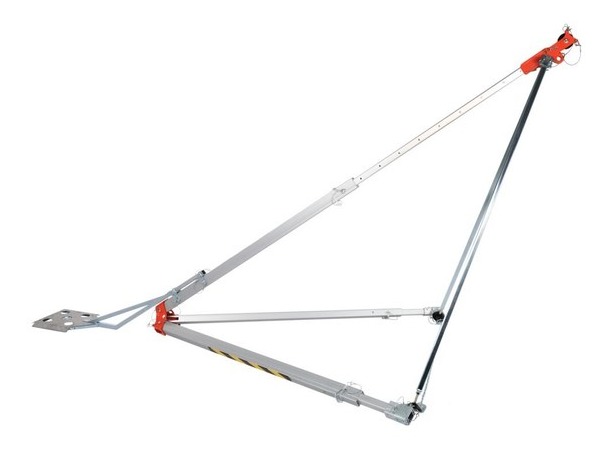

Aluminium tripod with jib (TM 14)

Crane with tripod option (TM 14-ZSE)

Basic aluminium crane (TM 1)

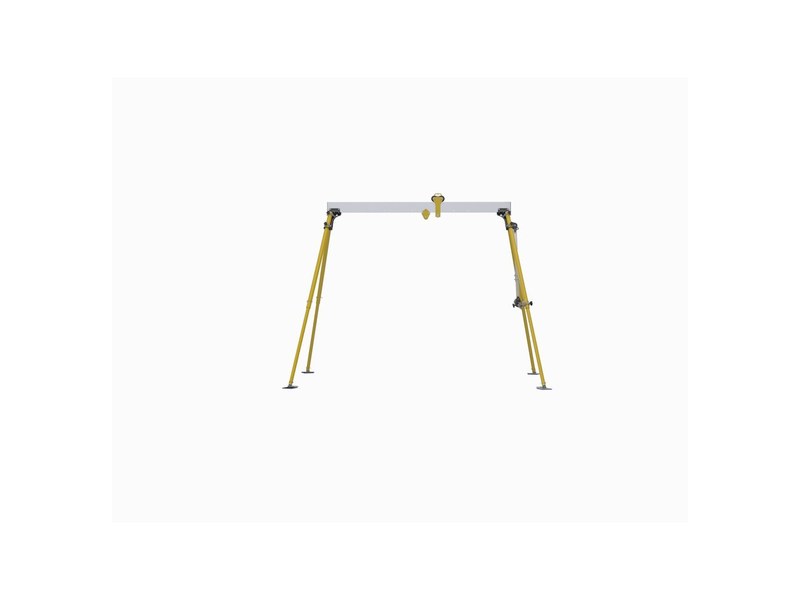

Aluminium rescue quadpod (ALUQUAD)

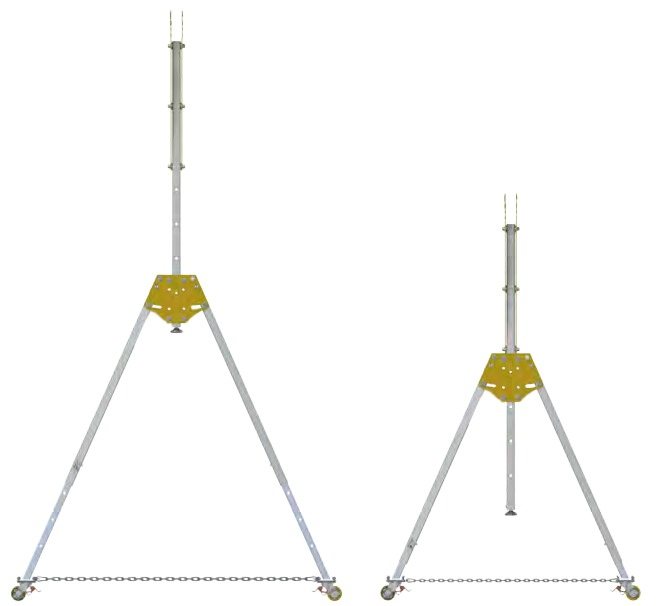

Adjustable aluminium tripod
Aluminium tripods: models, capacities and dimensions
| Model | Material | Use | Standard | Supplied with |
|---|---|---|---|---|
| Personnel safety tripod (TM 9) | aluminium | access and personnel recovery | EN 795 | — |
| Aluminium safety tripod (TM 9-N) | light aluminium | — | — | height-adjustable |
| Safety tripod with leg locking (TM 9-L) | aluminium, leg locking | fall arrest and personnel recovery | EN 795 | — |
| Safety tripod (TM 13) | aluminium | fall arrest and personnel recovery | EN 795 | — |
| Light aluminium safety tripod (TM 17) | light aluminium | — | — | height-adjustable |
| Light aluminium safety tripod (TM 15) | light aluminium | goods and personnel | — | height-adjustable |
| Steel safety tripod (TM 7) | steel | fall arrest and personnel recovery | EN 795 | — |
| Compact aluminium tripod (TM 15 MINI) | light aluminium | compact | — | — |
| Compact aluminium tripod on suction pads (TM 16) | aluminium | — | — | suction base for smooth surfaces |
| Safety tripod on wheels (TM 6) | aluminium, wheeled base | fall arrest and personnel recovery | EN 795 | — |
| Aluminium goods tripod on wheels (TM 6-T) | aluminium, wheeled base | materials lifting | CE 2006/42 | — |
| Aluminium tripod with manual winch kit (TM 15-G) | light aluminium | — | — | winch kit with bracket |
| Goods tripod (TM 9-T) | aluminium | materials lifting | CE 2006/42 | — |
| Aluminium tripod with jib (TM 14) | light aluminium | tripod + cantilever jib | — | — |
| Crane with tripod option (TM 14-ZSE) | aluminium | lifting and safety | CE 2006/42 | — |
| Basic aluminium crane (TM 1) | aluminium | light lifting and access | CE 2006/42 | — |
| Aluminium rescue quadpod (ALUQUAD) | aluminium, 4 telescopic uprights with stainless steel foot and non-slip rubber | wide and rectangular openings | up to 3 people at once | up to 500 kg |
| Adjustable aluminium tripod | — | — | — | — |
Attollo lifting tripod: catalogue sizes
| Rated capacity | Height | Under-hook height min-max | Leg spread | Weight |
|---|---|---|---|---|
| 250 kg | H1 / H2 | 1.500-2.486 / 2.440-3.426 mm | 1.330-2.100 / 1.980-2.670 mm | 8,9 / 11,3 kg |
| 500 kg | H1 / H2 | 1.480-2.466 / 2.420-3.406 mm | 1.400-2.100 / 2.185-2.800 mm | 13,5 / 17,2 kg |
| 1,000 kg | H1 / H2 | 1.430-2.420 / 2.351-3.338 mm | 1.480-2.200 / 2.180-2.870 mm | 24,4 / 31 kg |
| 2,000 kg | H1 / H2 | 2.010-3.000 / 2.950-3.936 mm | 2.030-2.770 / 2.720-3.470 mm | 45,4 / 54 kg |
| 3,000 kg | H1 / H2 | 2.018-3.004 / 2.953-3.940 mm | 2.130-2.900 / 2.690-3.420 mm | 63,7 / 74,9 kg |
Data from the Attollo data sheet for the adjustable lifting tripod (articulated telescopic legs, ring for hoist or winch). The TM series safety tripods are EN 795 certified for persons; the ALUQUAD quadpod carries 500 kg of goods, 3 persons and evacuation devices up to 140 kg.
How to choose aluminium tripods
People or goods
Access to confined spaces requires an EN 795 safety tripod with retractable fall arrester and rescue winch (TM 9, 13, 17); for lifting materials, tripods for goods (TM 9-T, TM 6-T) or the lifting tripod from 250 to 3,000 kg are sufficient.
The opening
Over a round manhole a tripod is suitable; over tanks, tunnels and rectangular openings the ALUQUAD quadpod or the hexapod and SPIDER devices are required; close to a wall, the TM 14 cantilever davit.
Transport
Aluminium to carry the tripod on the shoulder and climb stairs; the TM 15 MINI fits in a car boot; the steel TM 7 is for construction sites where robustness matters; on wheels (TM 6) for sequential inspections.
The support surface
Anti-slip feet on normal floors; suction-cup bases on smooth, finished surfaces where drilling is not possible; anti-spread chain and leg locking (TM 9-L) on uneven ground.
Manual winches and winches
The tripods are completed with the RUP 502 and 503 winches for materials and with the RUP 502-U, approved for the evacuation of persons.
Aluminium tripods: the most common questions
At list price the TM 15 MINI starts at 650 € + VAT, the TM 9-N, 13 and lightweight version from 750 €, the TM 17 from 800 €, the TM 9-T from 900 €, the TM 6 from 950 €, the TM 7 from 980 €, the TM 9 from 1,800 €, the quadpod from 2,000 €; the Attollo lifting tripod from 800 €.
Safety tripods are EN 795 (type B) anchor devices for persons; the quadpod also complies with CEN/TS 16415 and EN 1496/B; tripods for goods and lifting tripods comply with the Machinery Directive 2006/42/EC.
A safety tripod serves the operator descending; the ALUQUAD quadpod up to 3 persons at the same time.
Only in the kit with winch; for the other models the RUP winches are ordered separately with the configuration.
